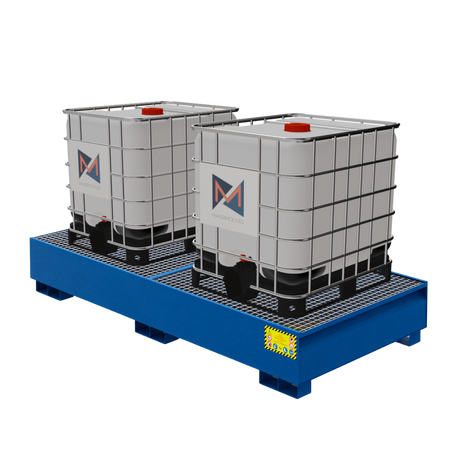

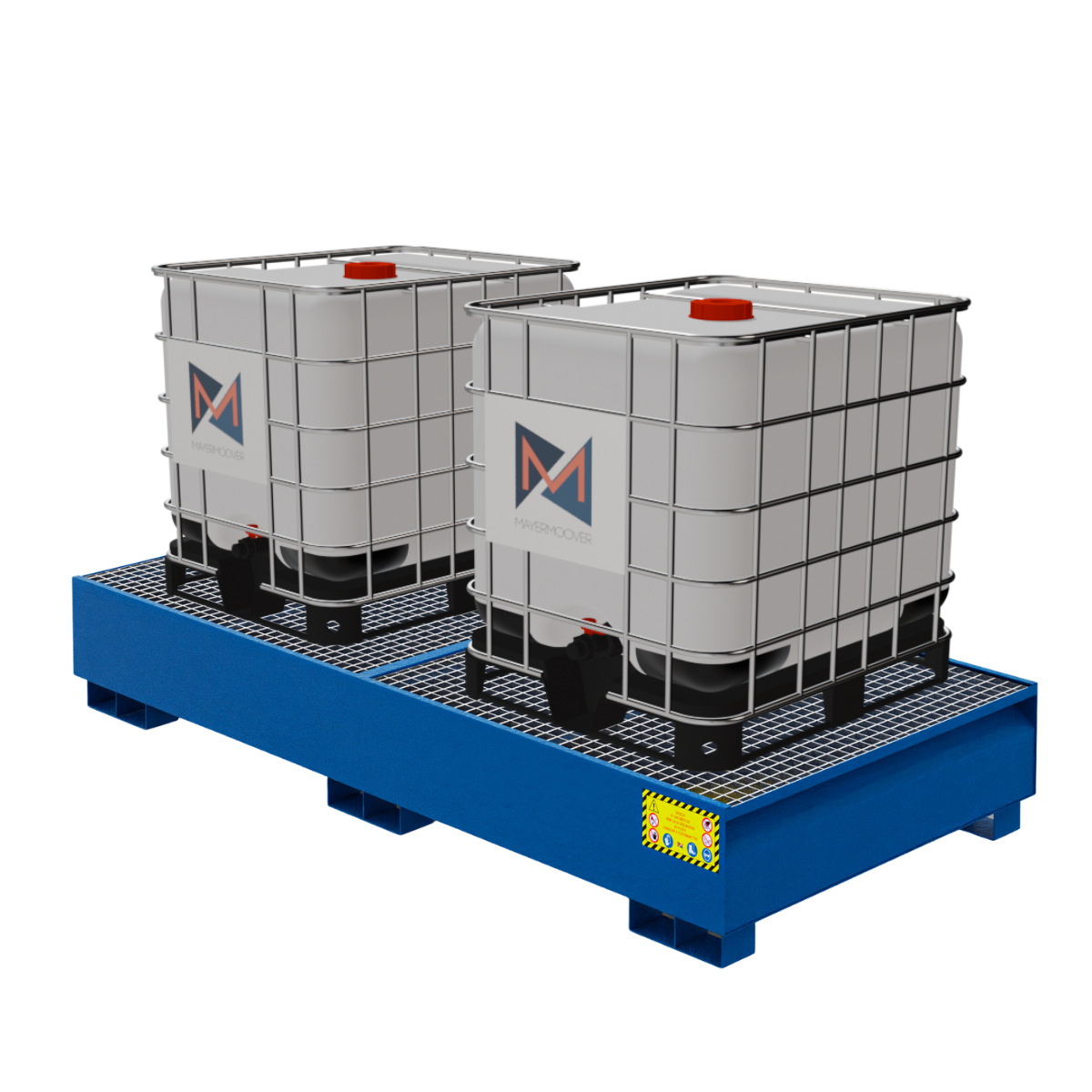

Metal collection tank for 2 x 1000 LT IBC tanks - RAL 5010

A=Length
B=Width
C=Useful height
D=Foot height
E=Total height
The measurements are expressed in millimeters

Download technical data sheet

General information

The Mayermoover spill tray for two 1000-liter IBC containers is a robust and professional solution, designed to prevent accidental spills of hazardous or polluting substances. The RAL 5010 (gentian blue) painted version combines structural protection and color recognition , making it ideal for industrial environments where visual safety is an added value.

This tub is designed to meet the requirements of European regulations on environmental safety and worker protection .

High capacity and reliable construction

Made from 3 mm (30/10) thick S235JR quality carbon steel , the tank is designed to withstand long-term use in demanding work environments. The welds are electronically controlled to ensure a complete watertight seal . The hot-dip galvanized and pressed grating guarantees a safe load capacity for the simultaneous loading of two 1000-litre IBCs, while maintaining high chemical and mechanical resistance.

All materials are purchased from historic suppliers certified according to UNI EN ISO 9001 , with full traceability available upon request.

Technical features

• Capacity: 2 x 1000 litre IBCs

• Material: S235JR or higher carbon steel

• Structure thickness: 3 mm

• Finish: RAL 5010 epoxy powder coating

• Grating included: hot-dip galvanized and pressed

• Welds electronically tested for leak tightness

• Provision for lifting with forklifts (forks)

• Manufactured in compliance with UNI parameters

• Certifications and documentation available upon request

Finishing options on request

• Hot or cold galvanizing

• Single or two-component liquid painting

• Other RAL colors available based on agreed quantities

Recommended applications

• Industrial areas and chemical plants

• Logistics warehouses with storage of IBCs containing hazardous liquids

• Environments subject to strict environmental regulations

• Plants requiring double capacity with high construction reliability

Storage and Retention Guide

What does the law say?
According to Legislative Decree 19/05/1999 n. 152 , amended by Legislative Decree 2000 n. 258 , containment basins must have a minimum capacity at least equal to the largest of the stored containers and in any case not less than 1/3 of the total volume of the hazardous substances present. In areas subject to groundwater protection, the legislation instead requires that the entire stored volume be contained within the collection tank ( 100% of the volume ).

⚠️ Attention:
This regulation does not apply to the storage of used oil , for which the law expressly requires a containment tank equal to 100% of the stored volume , regardless of other considerations.

To better clarify the practical application of these rules, we report below two examples with explanatory data:
