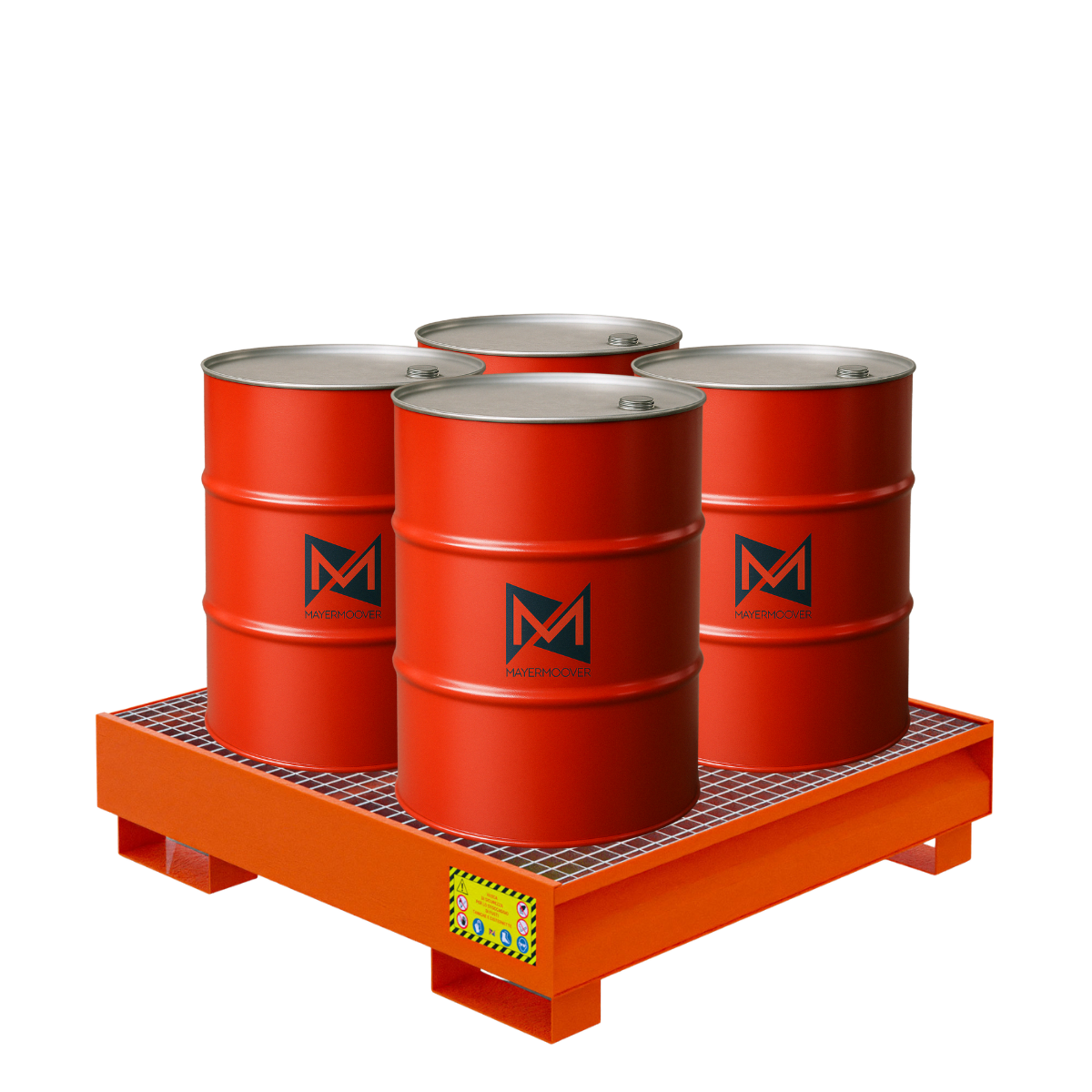

Collection tank for 4 200 LT drums - RAL 2004

A=Length
B=Width
C=Useful height
D=Foot height
E=Total height
The measurements are expressed in millimeters

Download technical data sheet Declaration of conformity

General information

The Mayermoover metal spill tray for four 200-liter drums , painted RAL 2004 (pure orange) , is a technical solution designed for maximum workplace safety and environmental protection . The bright color improves visibility in production departments and industrial environments, facilitating quick identification of safety containers.

This version is particularly suitable for warehouses, workshops and chemical plants where safe management of hazardous substances and compliance with European regulations on spill prevention is required.

Reinforced structure and tested welds

Constructed from 3 mm (30/10) thick carbon steel , the tank is designed to withstand intensive use and the most aggressive chemical agents. All welds are electronically tested to ensure a perfect seal. The hot-dip galvanized and pressed grating , supplied included, offers stability and a load-bearing capacity suitable for loading four 200-litre drums.

The materials used are UNI EN ISO 9001 certified , with production compliant with UNI parameters and complete traceability available upon request.

Technical features

• Capacity: 4 x 200 litre drums

• Material: S235JR or higher carbon steel

• Thickness: 3 mm

• Painting: epoxy powder RAL 2004 (pure orange)

• Grating included: hot-dip galvanized, pressed

• Electronically controlled welding

• Prepared for lifting by forklift forks

• Construction according to UNI regulations

• Technical certifications on request

Other finishes available

• Hot or cold galvanizing

• Single or two-component liquid painting

• Other customizable RAL colors (with minimum quantities)

Recommended areas of use

• Mechanical workshops and maintenance areas

• Chemical plants and logistics platforms

• Plants with high drum turnover

• Environments where the chromatic visibility of the container is useful

Storage and Retention Guide

What does the law say?
According to Legislative Decree 19/05/1999 n. 152 , amended by Legislative Decree 2000 n. 258 , containment basins must have a minimum capacity at least equal to the largest of the stored containers and in any case not less than 1/3 of the total volume of the hazardous substances present. In areas subject to groundwater protection, the legislation instead requires that the entire stored volume be contained within the collection tank ( 100% of the volume ).

⚠️ Attention:
This regulation does not apply to the storage of used oil , for which the law expressly requires a containment tank equal to 100% of the stored volume , regardless of other considerations.

To better clarify the practical application of these rules, we report below two examples with explanatory data:

Project Rules

Ministerial Decree 17 January 2018: NTC New Technical Standards for Construction
UNI ENV 1993 1-3 (EUROCODE 3): Design of steel structures
UNI EN 10204 August 1991: Metallic products – Types of control documents

Security and Controls

Legislative Decree 09 April 2008 – n. 81: Consolidated Law on health and safety protection and obligations related to Legislative Decree n. 81
UNI EN ISO 9712:2012: Qualification and certification of non-destructive testing personnel
UNI EN ISO 3452-1:2013: Penetrant liquid testing
UNI EN ISO 23277:2010: Non-destructive testing of welds using penetrant tests
UNI EN ISO 5817:2014: Welding, welded joints and their quality
