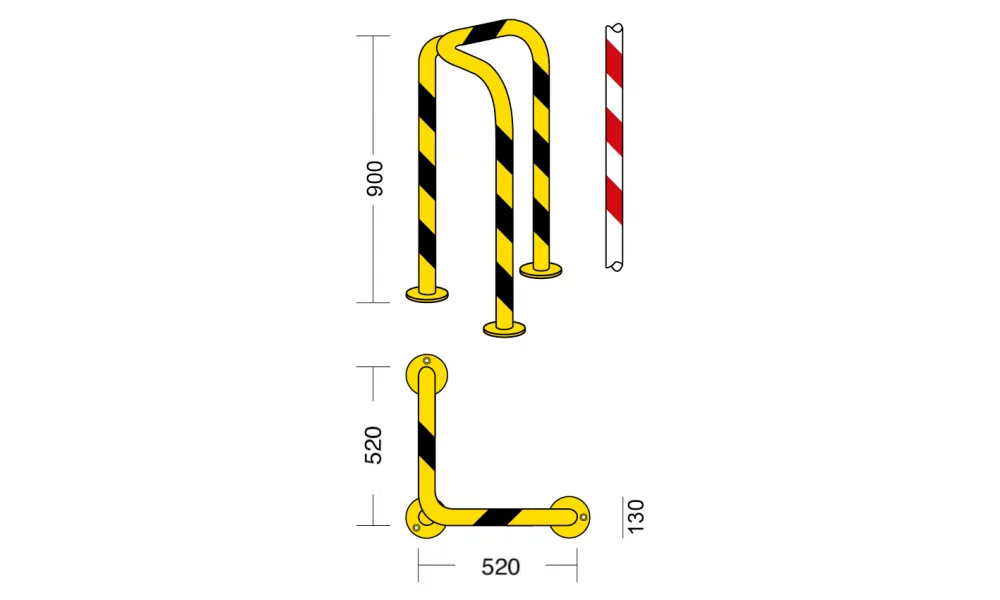

Corner bumper barrier - 520 x 520 x 900h mm

The 520 x 520 x 900 mm corner bumper is an impact protection designed to protect edges, wall corners, and aisle ends , where impacts are most frequent during maneuvers. The L-shaped configuration creates continuous protection on two sides, ideal as an anti-collision and anti-trauma system to reduce impacts and damage to structures and passageways.

Made of seamless 48 mm diameter steel , with three vertical uprights and circular floor fixing plates , it is suitable for protecting pedestrian walkways , machinery and systems , as well as walls and sensitive areas. The highly visible finish makes it easy to identify obstacles and helps prevent collisions, especially when there is internal traffic with trolleys and pallet trucks.

---

Technical information

• Type: L-shaped corner bumper barrier

• Dimensions: 520mm × 520mm × 900mm H

• Material: steel

• Tube diameter: Ø 48 mm

• Construction: seamless

• Structure: 3 vertical uprights

• Fixing: circular plates for floor anchoring

---

Finishes

• High quality scratch-resistant thermosetting polyester powder coating :

  • Yellow RAL 1023 with 45° oblique black film , or

  • White RAL 9010 with 45° oblique red film

---

Fixing system

The impact protectors ensure very high impact resistance. They are fixed to the floor using an injected chemical binder.
Installation involves drilling the hole, cleaning it, applying the chemical anchor, and inserting the socket. Once hardened, the protection is secured with screws.

Fixing system not included in the supply.

Assembly instructions

---

Sectors of application

• Warehouses and logistics: corner and aisle end protection to reduce collisions when using forklifts and pallet trucks.

• Production departments: protection of walls and systems positioned on corners or near movement routes

• Pedestrian areas: protection of passages and intersections in mixed traffic areas, improving safety

• Technical corridors and systems: protection of sensitive points and infrastructures exposed to accidental contact

• Storage areas: protection of wall corners and recesses where visibility may be reduced
