Corner bumper barrier - 750 x 750 x 900h mm

The 750 x 750 x 900 mm corner bumper is a shock-absorbing barrier designed to effectively shield corners, edges, and recesses in areas with frequent traffic and rapidly changing spaces. The L-shaped design provides anti-collision and anti-trauma protection on both sides, reducing impact on walls and sensitive property and improving internal traffic flow.

Made of seamless 48 mm diameter steel , with three vertical uprights and circular floor fixing plates , it is suitable for protecting pedestrian walkways , machinery and systems , as well as walls and transit points. The high-visibility finishes make the obstacle immediately noticeable and help prevent repeated impacts during handling with forklifts and pallet trucks.

---

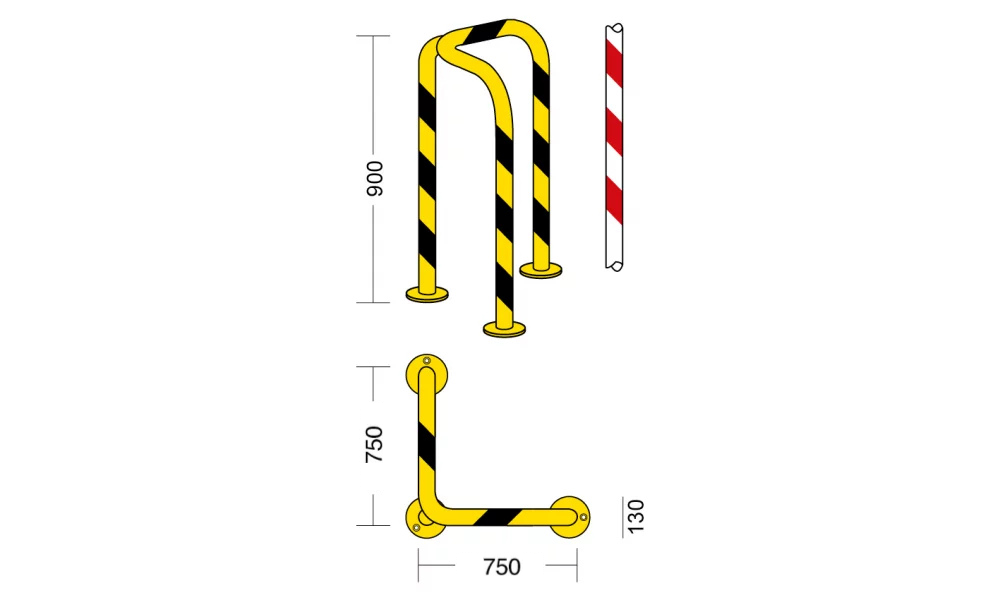

Technical information

• Type: L-shaped corner bumper barrier

• Dimensions: 750mm × 750mm × 900mm H

• Material: steel

• Tube diameter: Ø 48 mm

• Construction: seamless

• Structure: 3 vertical uprights

• Fixing: circular plates for floor anchoring

---

Finishes

• High quality scratch-resistant thermosetting polyester powder coating :

  • Yellow RAL 1023 with 45° oblique black film , or

  • White RAL 9010 with 45° oblique red film

---

Fixing system

The impact protectors ensure very high impact resistance. They are fixed to the floor using an injected chemical binder.
Installation involves drilling the hole, cleaning it, applying the chemical anchor, and inserting the socket. Once hardened, the protection is secured with screws.

Fixing system not included in the supply.

Assembly instructions

---

Sectors of application

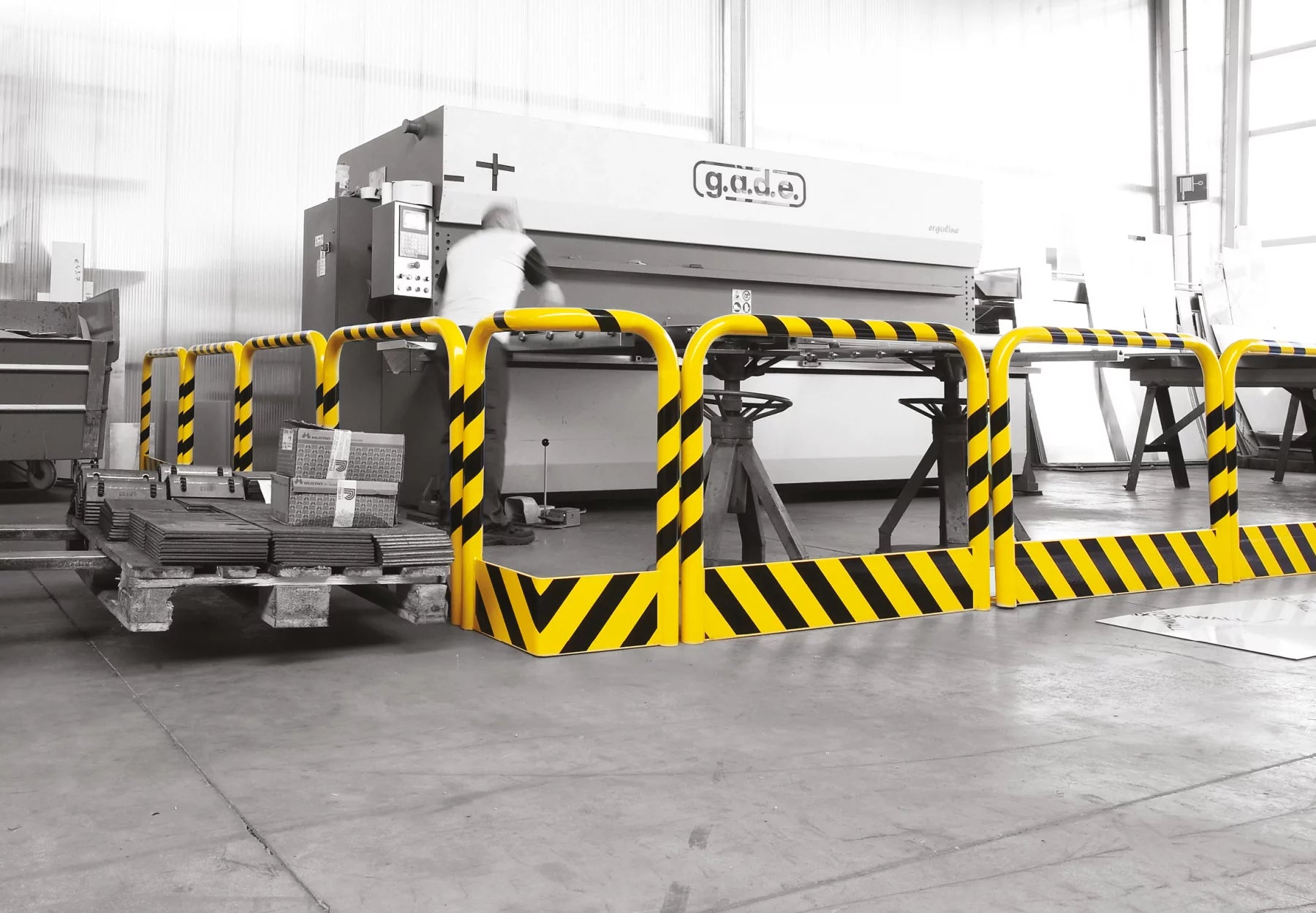

• Warehouses and logistics: corner and aisle intersection protection to reduce collisions when using forklifts and pallet trucks.

• Production departments: protection of walls and systems near corners or areas where vehicles pass through

• Pedestrian paths: protecting traffic in mixed traffic areas with greater safety and visibility

• Technical corridors and systems: protection of sensitive points exposed to accidental contact

• Storage areas: protection of recesses and corners where obstructions can create blind spots
