Corner crash barrier with intermediate crosspiece - 520 x 520 x 900h mm

The 520 x 520 x 900 mm corner bumper with intermediate crosspiece is a crash barrier designed to protect corners, edges, and aisle ends , providing more complete protection than the standard version. The L-shaped configuration protects on two sides, while the intermediate crosspiece reduces the "uncovered" areas and increases effectiveness as an anti-collision and anti-trauma system in high-traffic areas.

Made entirely of steel , with compact shapes and rounded profiles without sharp edges , it is suitable for protecting pedestrian walkways , machinery and systems , as well as exposed walls and infrastructure. Mass production guarantees uniformity over time. The high-visibility finishes clearly indicate the size and help prevent accidental impacts, in compliance with Legislative Decree 9 April 2008 n. 81 – Annex XXVIII . The solution is also modular , combining with other crash barriers and posts to create continuous or perimeter protection.

---

Technical information

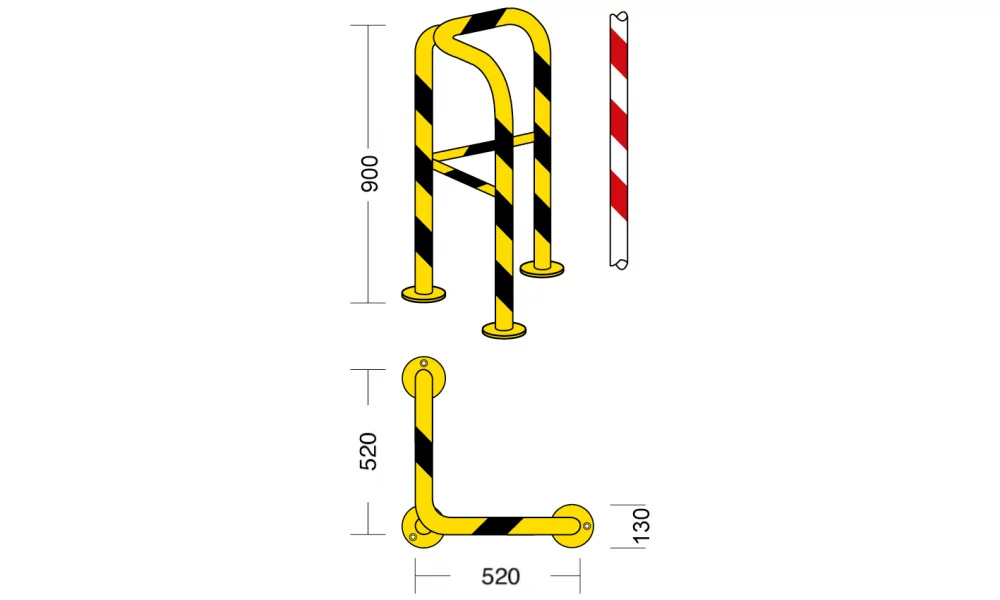

• Type: L-shaped corner crash barrier with intermediate crosspiece

• Dimensions: 520mm × 520mm × 900mm H

• Material: steel

• Main tube diameter: Ø 48 mm

• Intermediate crosspiece diameter: Ø 28 mm

• Construction: seamless

• Structure: 3 vertical uprights with intermediate crosspiece

• Fixing: circular plates for floor anchoring (Ø 130 mm)

---

Finishes

• For outdoors

  • Basic galvanizing

  • High quality, scratch-resistant, UV-resistant thermosetting polyester powder coating

    • Yellow RAL 1023 with 45° oblique black reflective film, or

    • White RAL 9010 with 45° oblique red reflective film

• For interiors

  • High quality, scratch-resistant thermosetting polyester powder coating

    • Yellow RAL 1023 with 45° oblique black film, or

    • White RAL 9010 with 45° oblique red film

---

Fixing system

The impact protectors ensure very high impact resistance. They are fixed to the floor using an injected chemical binder.
Installation involves drilling the hole, cleaning it, applying the chemical anchor, and inserting the socket. Once hardened, the protection is secured with screws.

Fixing system not included in the supply.

Assembly instructions

---

Sectors of application

• Warehouses and logistics: protection of corners and aisle ends where maneuvers generate recurring points of impact

• Production departments: protection of walls and systems positioned on edges or near movement routes

• Pedestrian paths: crash barriers to protect intersections and transit in mixed traffic areas

• Technical corridors: protection of sensitive infrastructure and assets in recesses and points with reduced visibility

• Storage areas: protection of corners and edges to protect the building structure
