Linear crash barrier with intermediate crosspiece - 1000 x 900h mm

This guardrail with an intermediate crossbar is designed to increase protection along wider openings and fronts, where more complete shielding against accidental impacts is needed. It is an anti-collision and anti-trauma solution suitable for protecting pedestrian walkways, machinery and systems, walls, doors, sliding doors and freight elevators, reducing repetitive damage and operational downtime in internal traffic areas.

Made entirely of steel, with compact and rounded shapes free of sharp edges, it offers a level of safety consistent with industrial use. Mass production guarantees uniform characteristics and constant availability. The high-visibility finishes signal the presence of the protection and help prevent accidental impacts, in line with Legislative Decree 9 April 2008 n. 81 – Annex XXVIII. The solution is also modular and can be combined with other posts and impact protection barriers to configure continuous barriers or targeted protection points.

---

Technical Info

• Type: arch / linear guardrail with intermediate crossbar

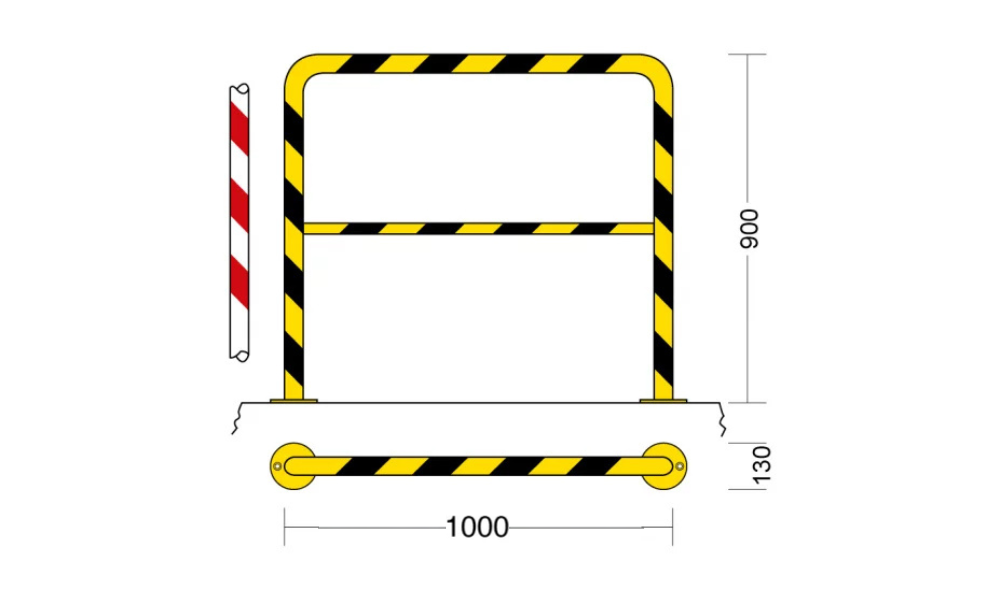

• Dimensions: 1000 mm L × 900 mm H

• Material: steel

• Main tube diameter: Ø 48 mm

• Intermediate crossbar diameter: Ø 28 mm

• Construction: weld-free

• Structure: 2 vertical posts with intermediate crossbar

• Fixing: circular plates for floor anchoring (Ø 130 mm)

---

Finishes

• For outdoor use

  • Basic galvanization

  • Polyester thermosetting powder coating, high quality anti-scratch, UV resistant

    • Yellow RAL 1023 with diagonal black film at 45°, or

    • White RAL 9010 with diagonal red film at 45°

• For indoor use

  • Polyester thermosetting powder coating, high quality anti-scratch

    • Yellow RAL 1023 with diagonal black film at 45°, or

    • White RAL 9010 with diagonal red film at 45°

---

Fixing system

The impact protection ensures very high impact resistance. Fixing to the floor is done with injection chemical binder.
Installation involves: drilling the hole, cleaning, applying the chemical anchor, inserting the bushing; once hardened, the protection is fixed with screws.

The product requires 4 ground fixing systems (not included). Compatible with M10x90, M10 and CH8x100 anchors.

Assembly instructions

---

Areas of application

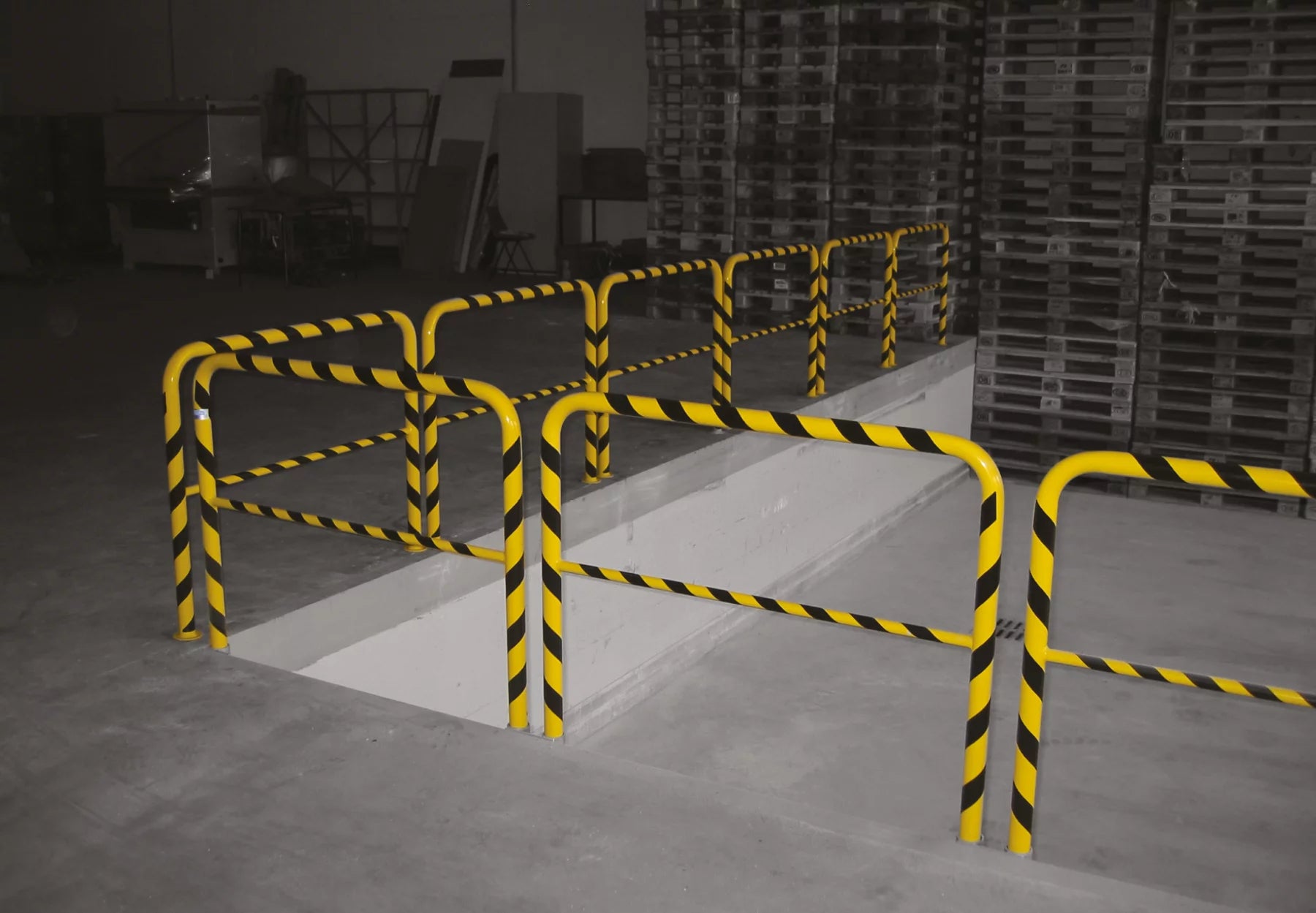

• Warehouses and logistics: protection of doors, walls, and openings in forklift aisles and maneuvering areas

• Large-scale distribution and loading/unloading areas: anti-collision barrier to reduce impacts on accesses and critical points

• Production departments: protection of systems and machinery near handling paths

• Pedestrian walkways: anti-trauma protection and delimitation of transit in mixed-traffic areas

• Freight elevators and sliding doors: protection of sensitive points exposed to accidental contact
