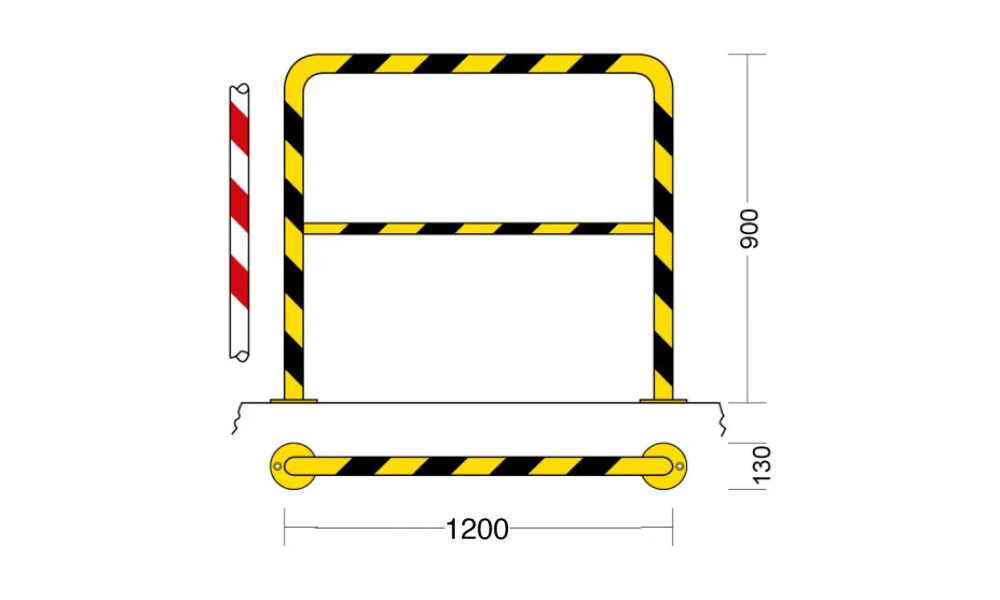

Linear crash barrier with intermediate crosspiece - 1200 x 900h mm

The 1200 x 900 mm protective arch with intermediate crosspiece is an impact and collision protection solution suitable for larger openings and fronts, where it is useful to increase the screening compared to a standard arch. The intermediate crosspiece improves the continuity of the barrier and makes the solution more effective in protecting pedestrian passages , machinery and systems , walls , doors , sliding doors and goods lifts in internal traffic areas.

The structure is entirely made of steel , compact in shape and with rounded profiles and no sharp edges for greater safety. Mass production guarantees uniform characteristics and availability over time. The high-visibility finishes help indicate the presence of the protection and prevent accidental impacts, in compliance with Legislative Decree 9 April 2008 n. 81 – Annex XXVIII . From a layout perspective, the solution is modular and can be combined with other posts and crash barriers to create anti-trauma protections consistent with flows and spaces.

---

Technical information

• Type: linear arch / bumper barrier with intermediate crosspiece

• Dimensions: 1200mm W × 900mm H

• Material: steel

• Main tube diameter: Ø 48 mm

• Intermediate crosspiece diameter: Ø 28 mm

• Construction: seamless

• Structure: 2 vertical uprights with intermediate crosspiece

• Fixing: circular plates for floor anchoring (Ø 130 mm)

---

Finishes

• For outdoors

  • Basic galvanizing

  • High quality, scratch-resistant, UV-resistant thermosetting polyester powder coating

    • Yellow RAL 1023 with 45° oblique black reflective film, or

    • White RAL 9010 with 45° oblique red reflective film

• For interiors

  • High quality, scratch-resistant thermosetting polyester powder coating

    • Yellow RAL 1023 with 45° oblique black film, or

    • White RAL 9010 with 45° oblique red film

---

Fixing system

The impact protectors ensure very high impact resistance. They are fixed to the floor using an injected chemical binder.
Installation involves drilling the hole, cleaning it, applying the chemical anchor, and inserting the socket. Once hardened, the protection is secured with screws.

Fixing system not included in the supply.

Assembly instructions

---

Sectors of application

• Warehouses and logistics: protection of doors, walls and openings in forklift aisles and maneuvering areas

• Large-scale retail trade and loading/unloading areas: anti-collision barrier for access and critical points with high traffic

• Production departments: protection of systems and machinery near handling passages

• Pedestrian routes: crash protection and traffic delimitation in mixed traffic areas

• Goods lifts and sliding doors: protection of sensitive points exposed to accidental contact
