Linear crash barrier with intermediate crosspiece - 1500 x 900h mm

The 1500 x 900 mm intermediate crosspiece safety arch is an anti-collision and anti-trauma solution designed to protect openings and exposed points over larger widths, where internal movement requires a clearly visible and structurally reliable barrier. The intermediate crosspiece increases shielding and makes protection more effective against accidental contact, helping to protect pedestrian passages , machinery and systems , walls , doors , sliding doors and goods lifts .

Made entirely of steel , with compact geometries and rounded profiles without sharp edges , it guarantees a level of safety adequate for industrial environments. Mass production ensures dimensional uniformity and continuity of supply over time. The high-visibility finishes make the barrier immediately identifiable and help prevent accidental impacts in compliance with Legislative Decree 9 April 2008 n. 81 – Annex XXVIII . The structure is also modular , combining with other posts and crash barriers to configure impact protection consistent with layouts and workflows.

---

Technical information

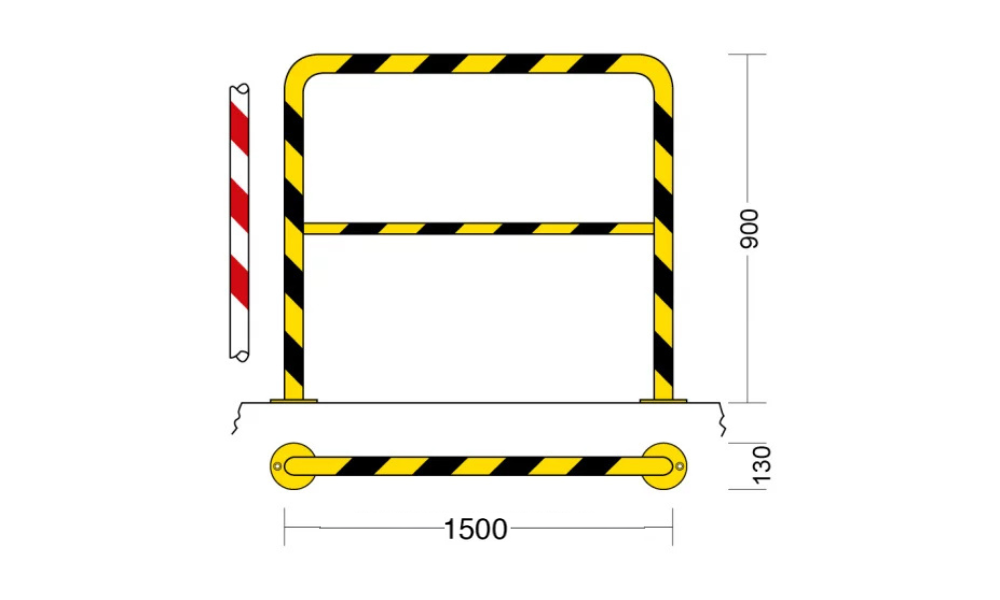

• Type: linear arch / bumper barrier with intermediate crosspiece

• Dimensions: 1500mm W × 900mm H

• Material: steel

• Main tube diameter: Ø 48 mm

• Intermediate crosspiece diameter: Ø 28 mm

• Construction: seamless

• Structure: 2 vertical uprights with intermediate crosspiece

• Fixing: circular plates for floor anchoring (Ø 130 mm)

---

Finishes

• For outdoors

  • Basic galvanizing

  • High quality, scratch-resistant, UV-resistant thermosetting polyester powder coating

    • Yellow RAL 1023 with 45° oblique black reflective film, or

    • White RAL 9010 with 45° oblique red reflective film

• For interiors

  • High quality, scratch-resistant thermosetting polyester powder coating

    • Yellow RAL 1023 with 45° oblique black film, or

    • White RAL 9010 with 45° oblique red film

---

Fixing system

The impact protectors ensure very high impact resistance. They are fixed to the floor using an injected chemical binder.
Installation involves drilling the hole, cleaning it, applying the chemical anchor, and inserting the socket. Once hardened, the protection is secured with screws.

Fixing system not included in the supply.

Assembly instructions

---

Sectors of application

• Warehouses and logistics: protection of doors, walls and openings in forklift aisles and maneuvering areas

• Large-scale retail trade and loading/unloading areas: anti-collision barrier for access and critical points with frequent transit

• Production departments: protection of systems and machinery near movement routes

• Pedestrian routes: crash protection and traffic delimitation in mixed traffic areas

• Goods lifts and sliding doors: protection of sensitive points exposed to accidental contact
