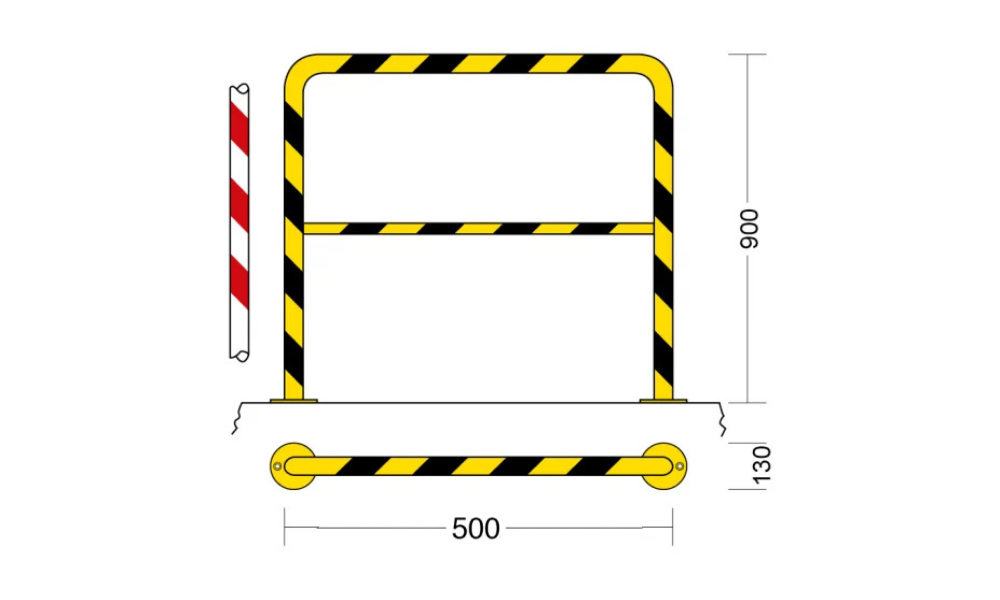

Linear crash barrier with intermediate crosspiece - 500 x 900 mm

This impact protection with intermediate crosspiece is designed to increase shielding in areas exposed to accidental contact, offering a more "closed" barrier than traditional linear arches. It is an effective anti-collision solution for protecting pedestrian walkways , machinery and systems , walls , doors , sliding doors and goods lifts , also improving internal traffic management in the warehouse and department.

The structure is entirely made of steel , with compact shapes and rounded profiles without sharp edges for greater safety. Mass production guarantees uniform characteristics and availability over time. The high-visibility finishes clearly indicate the presence of the barrier, helping to prevent accidental impacts in compliance with Legislative Decree 9 April 2008 n. 81 – Annex XXVIII . The element is also modular , therefore it can be combined with other crash barriers and protection posts to create anti-trauma configurations consistent with layouts and flows.

---

Technical information

• Type: linear arch / bumper barrier with intermediate crosspiece

• Dimensions: 500mm W × 900mm H

• Material: steel

• Main tube diameter: Ø 48 mm

• Intermediate crosspiece diameter: Ø 28 mm

• Construction: seamless

• Structure: 2 vertical uprights with intermediate crosspiece

• Fixing: circular plates for floor anchoring (Ø 130 mm)

---

Finishes

• For outdoors

  • Basic galvanizing

  • High quality, scratch-resistant, UV-resistant thermosetting polyester powder coating

    • Yellow RAL 1023 with 45° oblique black reflective film, or

    • White RAL 9010 with 45° oblique red reflective film

• For interiors

  • High quality, scratch-resistant thermosetting polyester powder coating

    • Yellow RAL 1023 with black film obliquely angled at 45°, or

    • White RAL 9010 with 45° oblique red film

---

Fixing system

The impact protectors ensure very high impact resistance. They are fixed to the floor using an injected chemical binder.
Installation involves drilling the hole, cleaning it, applying the chemical anchor, and inserting the socket. Once hardened, the protection is secured with screws.

Fixing system not included in the supply.

Assembly instructions

---

Sectors of application

• Warehouses and logistics: protection of walls, doors and openings in forklift aisles and maneuvering areas

• Large-scale retail trade and goods receiving: anti-collision barrier in high-traffic areas to reduce repetitive damage

• Production departments: protection of machinery and systems near handling passages

• Pedestrian paths: delimitation and anti-trauma protection in mixed traffic areas

• Goods lifts and sliding doors: protection of sensitive points exposed to accidental impacts
