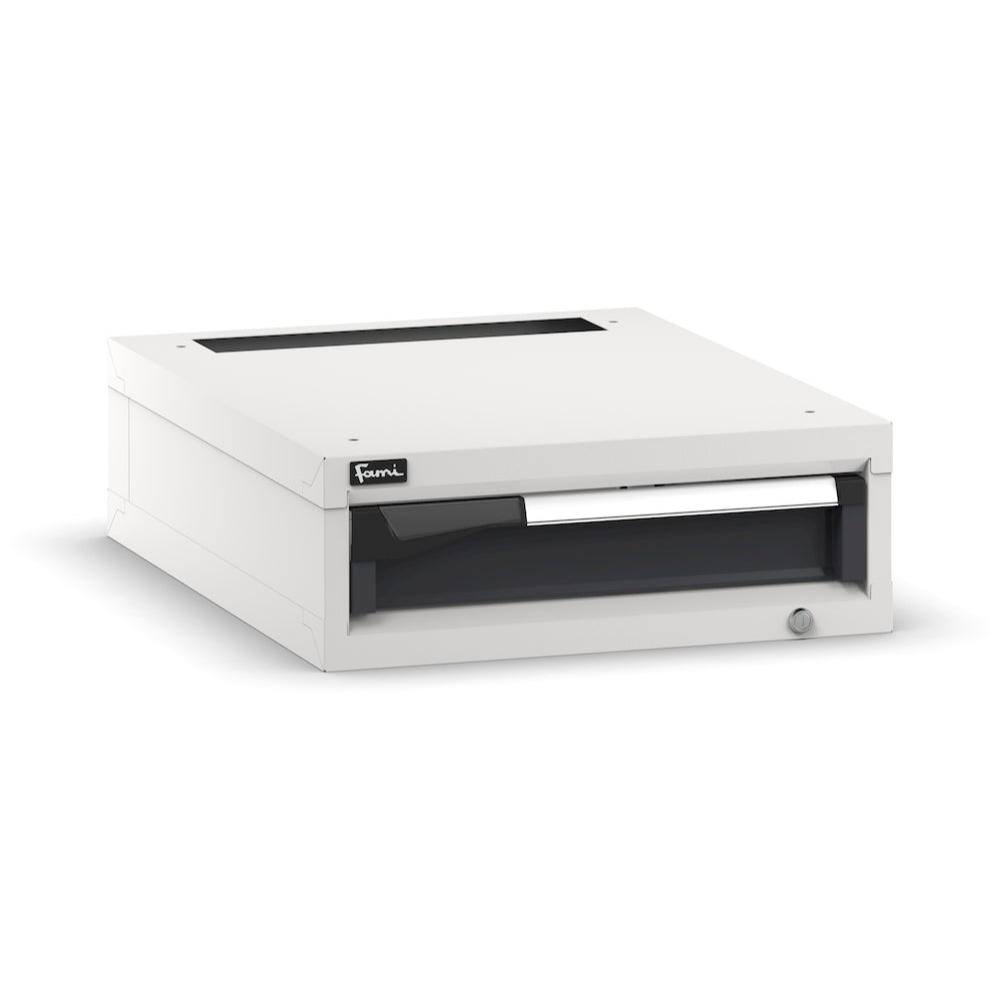

M23A020C0100504, 1 drawer block, L561 x D726 x H200 mm
M23A020C0100504, 1 drawer block, L561 x D726 x H200 mm
Product Description
The 1 Drawer Block is a compact and practical solution to keep work materials tidy and safe, ideal for installation in a workbench. The drawer is equipped with a perforated bottom and slotted sides, making it easy to integrate metal dividers or small parts boxes. The division of tools can also be optimized using Pikpad, additional tool trays. The structure ensures flexible extraction and maximum security of the contents thanks to the cylinder lock with key.
Composition:
- Drawers: 1x100
- Material: Painted sheet metal, available in blue (RAL 5012) or in combinations of light grey (RAL 7035) and anthracite grey (RAL 7016)
- Wheels: No
Technical Data:
| Characteristic | Specification |
|---|---|
| Dimensions (L x W x H) | 561 x 726 x 200 mm |
| Maximum drawer capacity | |
| 100% Extraction | 50 kg |
| Extraction 96% | 75 kg |
| Extraction 92% | 100 kg |
| Wardrobe Height | 200mm |
| Dimensions in EH | 27x36 - 561x726 mm |
| Drawer Extraction | Flexible - 75kg |
Instructions for Use:
The drawer can be configured by the user to achieve different levels of capacity and extraction, adapting to various work needs.
Conservation:
Be sure to place the drawer in a dry place away from atmospheric agents to preserve the quality of the paintwork.
