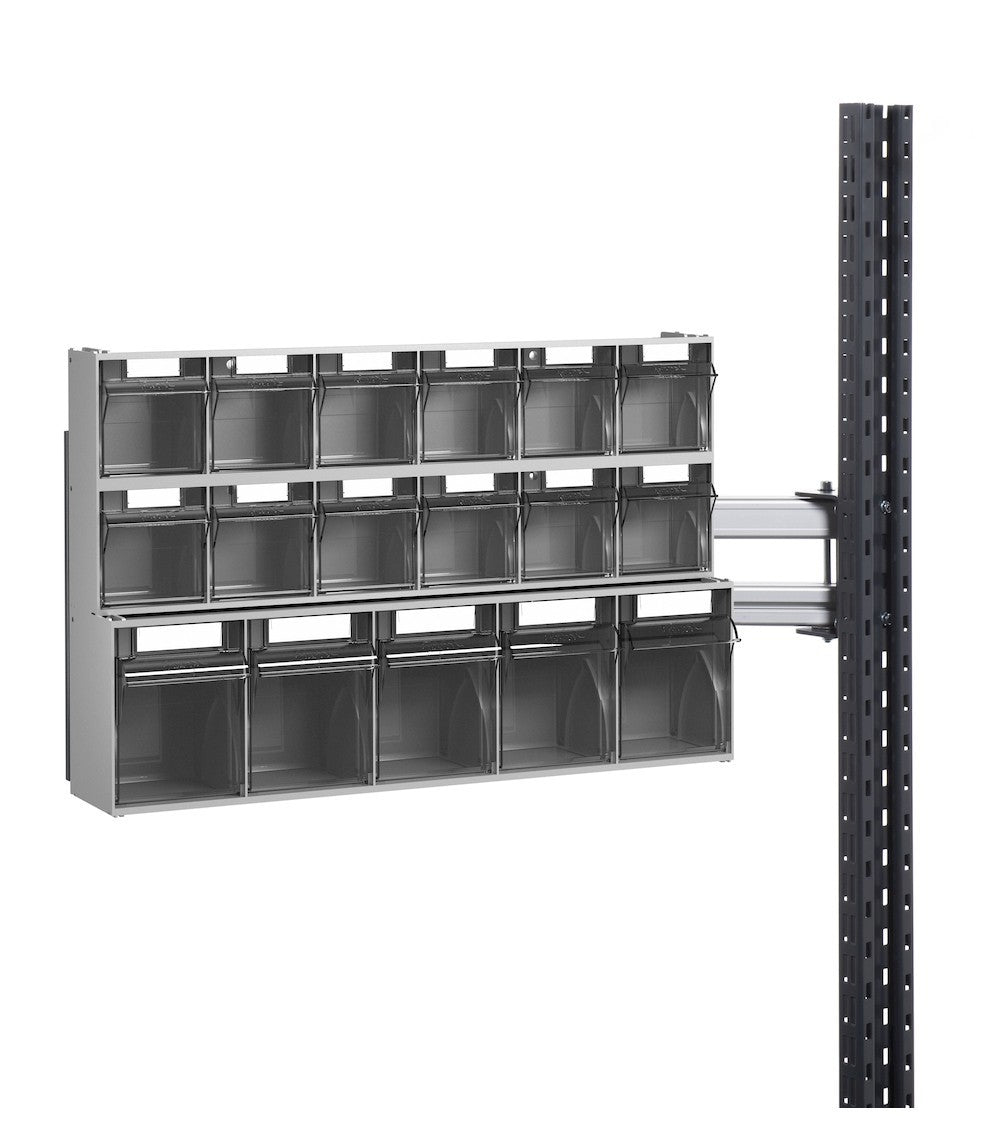

Extendable arm with visual box - dim. mm L=738 D=601 A=390
Extendable arm with visual box - dim. mm L=738 D=601 A=390
Product Description
The extendable arm with Visual Box is an ergonomic and modular solution designed to optimize the organization of small parts and components in professional workstations. Ideal for workshops, assembly lines, warehouses or technical environments, this system allows you to save space and improve the visibility and accessibility of materials, supporting a more orderly and efficient workflow.
The structure is composed of an extendable arm in anodized aluminum fixed by a plate to a front panel with grooves compatible with Visual Box drawers , which can be easily inserted and removed according to operational needs. The arm is fully adjustable up to 240° , allowing optimal adjustment of access even in tight spaces or in the presence of multiple operators.
The system can be installed at any point on the double-slotted upright , offering maximum freedom of configuration and adaptation to different workstations. The compact and robust design in anthracite grey painted sheet metal (RAL 7016) guarantees durability and stability even in industrial contexts with high operating loads.
This solution is ideal for implementing a Lean Manufacturing logic, simplifying component management and reducing picking and reordering times.
Ideal for:
-
Workstations in the workshop or production
-
Assembly and fine assembly lines
-
Electronic and maintenance laboratories
-
Industrial contexts with high component density
Technical features
-
Dimensions: L 738/612 x D 601/294 x H 390 mm
-
Material: Anodized aluminum and painted sheet metal (RAL 7016 – anthracite gray)
-
Visual Box Drawer Groove Panel
-
Extendable arm with rotation up to 240°
-
Can be installed at any point on the double-slotted upright
-
Fixing plate included
-
Ideal for small parts, screws and technical components
-
Robust, modular and space-saving
