BINCART10, Small parts trolley with 100 hopper boxes
BINCART10, Small parts trolley with 100 hopper boxes
Product Description
| ART. | W (mm) | D (mm) | H (mm) | Capacity (Kg) | RAL | Weight (Kg) | Cassette color |
| BINCART1062 | 1067 | 668 | 1384 | 300 | 7016 | 60 | Grey canvas 1 |
| BINCART1063 | 1067 | 668 | 1384 | 300 | 7016 | 60 |
Anthracite grey
|
| BINCART1064 | 1067 | 668 | 1384 | 300 | 7016 | 60 | Green traffic |

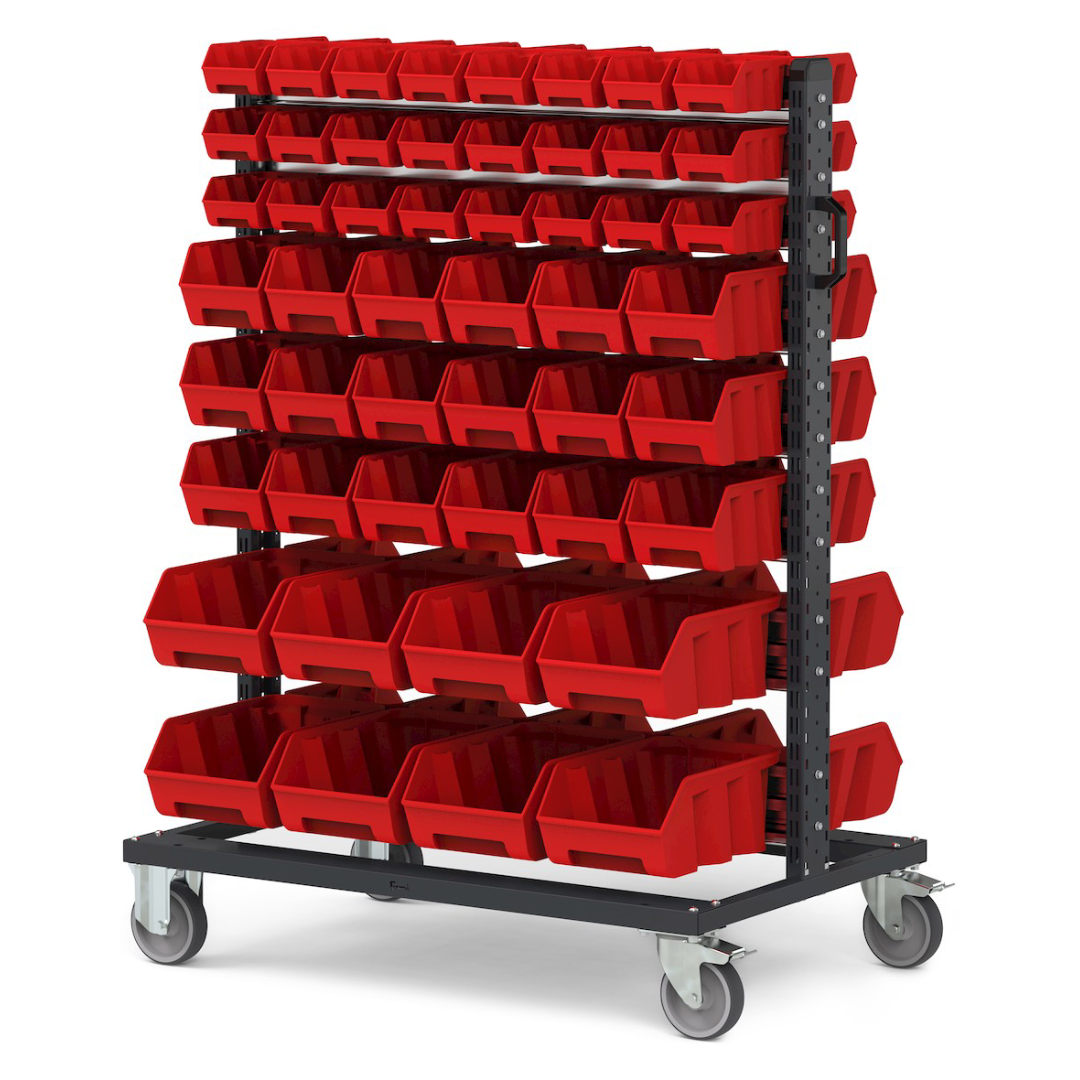

| BINCART1065 | 1067 | 668 | 1384 | 300 | 7016 | 60 | Traffic red |

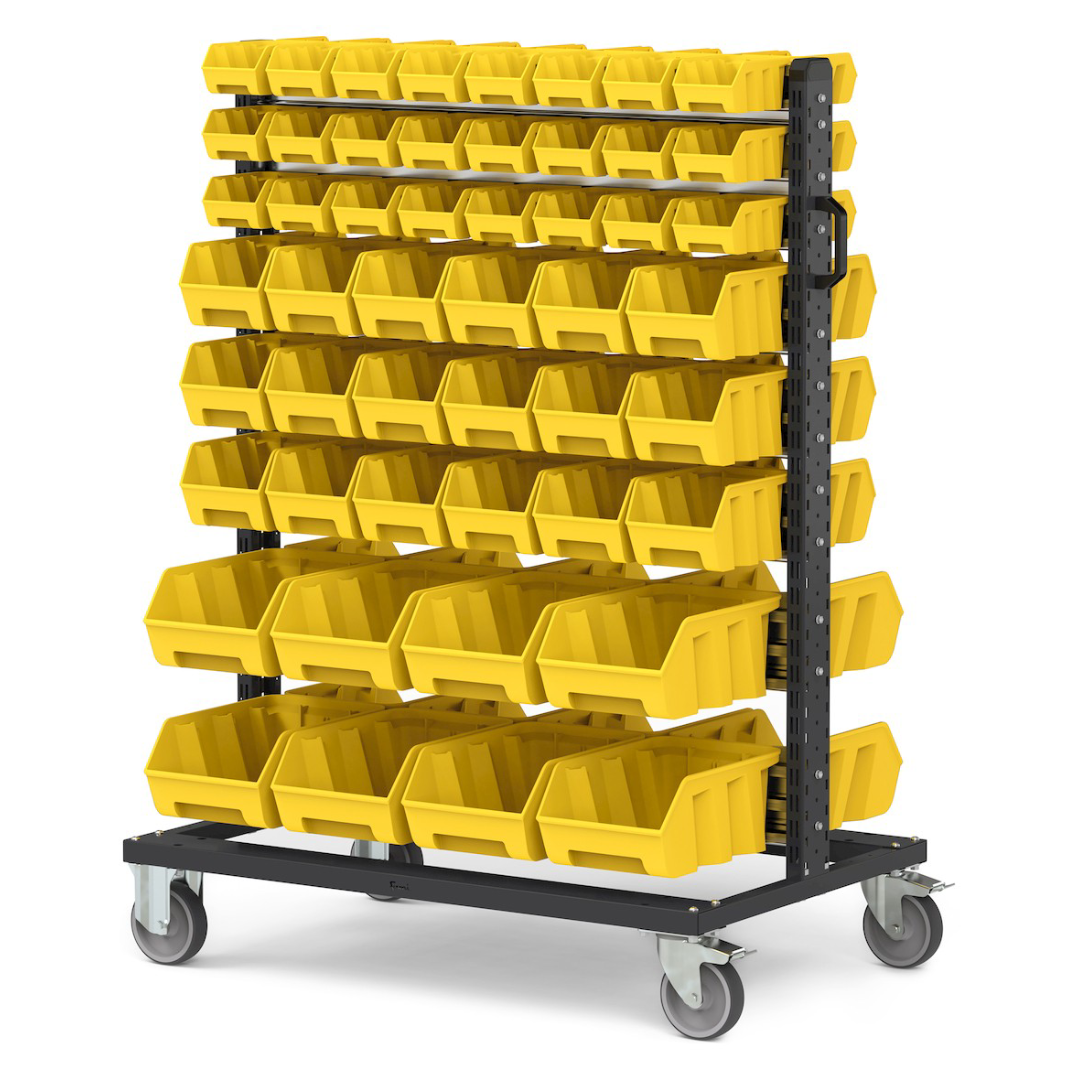

| BINCART1066 | 1067 | 668 | 1384 | 300 | 7016 | 60 | Zinc yellow |

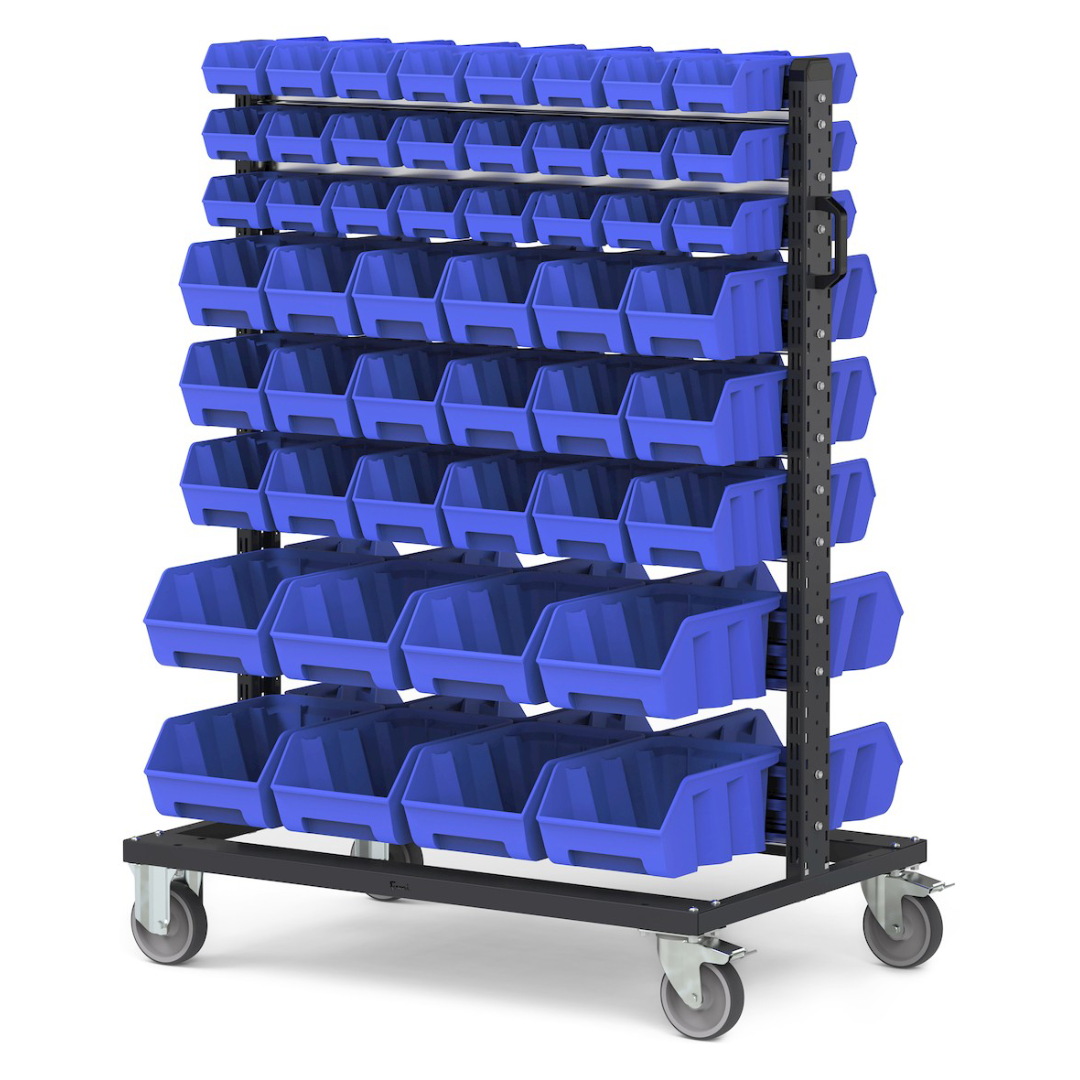

| BINCART1067 | 1067 | 668 | 1384 | 300 | 7016 | 60 | Sky blue |
W=Width
D=Depth
H=Height
RAL=Surface treatment
The measurements are expressed in millimetres
General information
The screw trolley with 100 containers with hopper is a perfect mobile warehouse for small parts, screws and spare parts used in the warehouse, workshop or on assembly lines. The Picking Box Air are available in three sizes, 1, 2 and 3A2, on both sides of the trolley to ensure maximum flexibility in storing components of different sizes and volumes.
A practical side handle and wheel kit make it easy to move the trolley, so you always have everything you need for work at hand.
The trolley is equipped with 4 non-marking synthetic rubber wheels Ø 125 mm: 2 fixed wheels, 2 swivel wheels with brake .
DIMENSIONS
Length: 1067 mm
Depth: 668 mm
Height: 1384 mm
RANGE
Maximum product capacity: 300 kg
MATERIAL
Painted sheet metal, anthracite grey (RAL 7016)
Containers: Picking Box Air, 48pcs x size 1 - Picking Box Air, 36pcs x size 2. - Picking Box Air, 16pcs x size 3A2
Supplied disassembled
