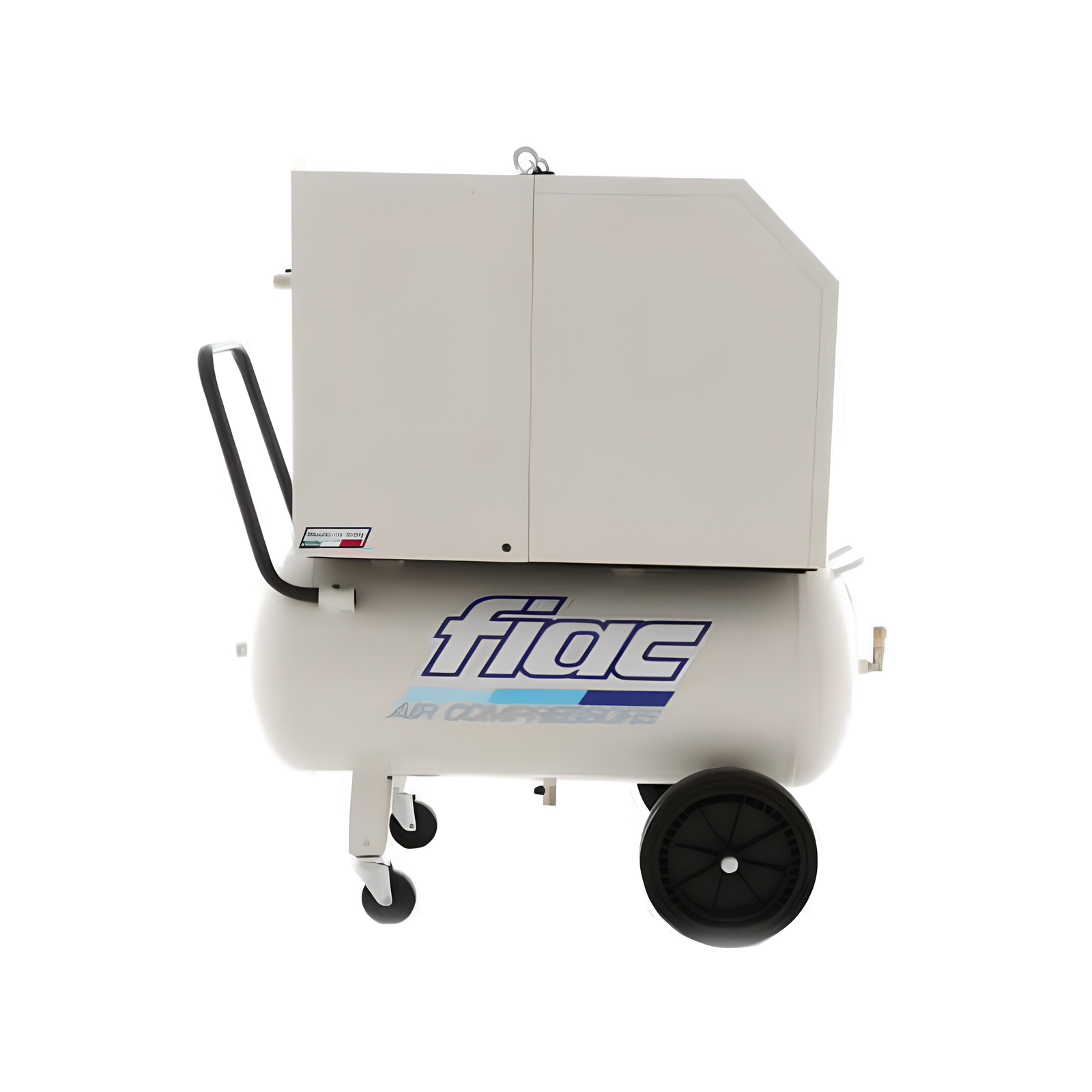

SILENT AB Piston Soundproof Air Compressor
SILENT AB Piston Soundproof Air Compressor
Product Description
| Technical specifications | SILENT AB 90/360 | SILENT AB 200/360 |
|---|---|---|
| Maximum pressure (bar) | 10 Bar | 10 Bar |
| Maximum pressure (Psi) | 145 PSI | 145 PSI |
| Pumping speed | 1500 RPM | 1500 RPM |
| Tank capacity (lt) | 90 liters | 200 liters |
| Tank capacity (gal) | 23.8 Gal | 53 Gal |
| Configuration | Mobile | Mobile |
| Capacity (l/min) | 350 l/min | 350 l/min |
| Capacity (cfm) | 12.4 CFM | 12.4 CFM |
| Lubrication | Oil Lubricated | Oil Lubricated |
| Oil capacity | 0.45 Liter | 0.45 Liter |
| Pumping element | AB360 | AB360 |
| Motor | 3 Hp | 3 Hp |
| Engine (kilowatt) | 2.2 kW | 2.2 kW |
| Supply voltage | 230 V | 230 V |
| Frequency | 50 Hz | 50 Hz |
| Number of phases | 1 | 1 |
| Noise (LPA) | 70dB(A) | 70dB(A) |
| Noise (LWA) | 90dB(A) | 90dB(A) |
The FIAC SILENT AB 360 series is designed for professional environments where it is necessary to combine power, reliability and acoustic comfort . Available with 90 or 200 litre tanks, these silenced compressors guarantee an air Capacity of 350 l/min at 10 bar , ideal for continuous applications in workshops, laboratories or industrial production.
The heart of the series is the AB360 pumping element, lubricated with oil, driven by a 3 HP single-phase motor, with belt transmission and rotation speed of 1500 rpm . All housed in a mobile structure on a trolley that allows easy movement even in the most dynamic contexts.
Ideal for
-
Mechanical workshops and body shops
-
Precision machining indoors
-
Continuous air pneumatic tools
-
Applications where noise control is essential
-
Light and medium intensity production
Strengths
-
Guaranteed silence : only 70 dB(A) – perfect for shared environments
-
Trolley structure : easy to move despite its capacity
-
Electrical compatibility : single-phase operation on 230V network
-
Industrial Strength : Solid construction, designed for long-lasting durability
-
Efficiency and autonomy : large tanks for prolonged use without interruptions
