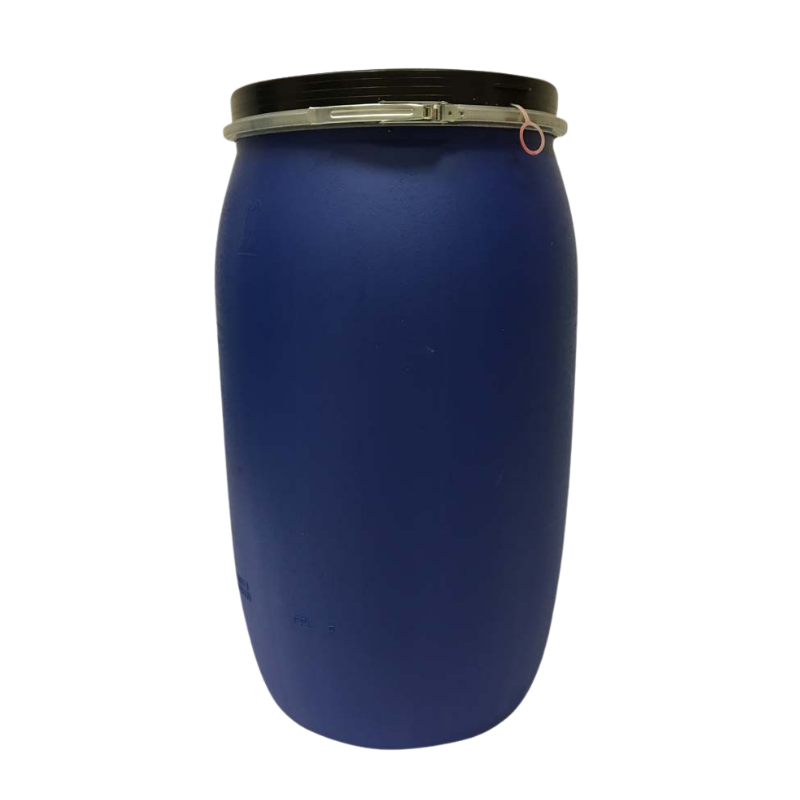

220 litre plastic drum with full opening, UN 1H2/X360/S approved
220 litre plastic drum with full opening, UN 1H2/X360/S approved
Product Description
| Specification | Value |
|---|---|
| Packaging type (UN code) | 1H2 – Fully opening plastic barrel |
| Typology | Wide-mouth keg with removable lid |
| Nominal capacity | 221 liters |
| UN approval | A 1H2/X360/S/… |
| Approved intended use |
Transport and storage of SOLIDS and PASTE-LIKE MATERIALS (not suitable for liquids) |
| Transport regulatory compliance | ADR / RID / IMDG / ICAO |
| Body material | High density polyethylene (PE-HD HW) |
| Drum weight | 9.50 kg ±3% |
| Maximum stem diameter (B) | 582 mm ±3 |
| Height (H) | 985 mm ±3 |
| Mouth diameter (A) | 470 mm ±1 |
| Barrel color | Blue |
| Lid material | PE-HD HW |
| Lid weight | 1.30 kg |
| Lid color | Black |
| Gasket | Polyurethane foam |
| Closure | Zinc-plated steel lever ring |
| Ring weight | 0.70 kg |
| Body manufacturing | Extrusion blow molding |
| Lid manufacturing | Injection molding |
| Stacking at 25°C | 1+2 (density 1.4 kg/l) – 1+1 (density 1.8 kg/l)* |
* Data valid with 98% capacity filling and minimum 80% support on flat-surface reversible pallets.
221 litre plastic drum – full opening, UN certified for solid and paste-like materials
The 221-litre wide-mouth 1H2 plastic drum is a UN-certified industrial packaging, designed to ensure safety and compliance in the transport and storage of dangerous solid or paste-like materials . It complies with the most important international regulations for road, rail, sea and air transport: ADR, RID, IMDG and ICAO-TI .
Made of food-grade PE-HD HW , it offers high mechanical and chemical resistance and protection against impacts and logistical stress. The galvanized steel lever ring closure and polyurethane foam gasket ensure a reliable seal and prevent leaks.
UN approval 1H2/X360/S/… certifies suitability for the transport of solid or pasty substances of packing groups I, II and III, according to UN markings.
The 470 mm mouth diameter makes filling and emptying operations simple and quick, suitable for the chemical, pharmaceutical, technical food and special waste management sectors.
Main features
- 221 litre plastic drum with full opening
- UN 1H2/X360/S/… certification for solid or pasty substances
- Complies with ADR, RID, IMDG and ICAO-TI
- Made of impact and chemical resistant PE-HD HW
- Zinc-plated steel lever ring closure
- Polyurethane foam gasket for optimal sealing
- Wide mouth Ø 470 mm for easy filling
- Stackable according to UN tests
Regulations and technical references
The drum complies with the requirements of the main international regulations for packaging of dangerous goods:
- ADR – Road transport of dangerous substances in Europe
- RID – Regulations for the rail transport of hazardous materials
- IMDG Code – International Maritime Transport Regulations
- ICAO-TI – International Regulations for the Air Transport of Dangerous Goods
- UN 1H2 certification for open-head plastic drums
The marking 1H2/X360/S/… indicates:
- 1H2 – Open top plastic barrel
- X – Suitable for groups I, II and III
- 360 – Rated capacity and test level (kg)
- S – Solid or pasty substances
Sectors of application
Thanks to the robustness of the PE-HD HW and the UN marking, the 221 litre drum is ideal for:
- Chemical industry: powders, granules and solid reagents
- Management and disposal of hazardous waste
- Chemical and pharmaceutical laboratories
- Cosmetic and nutraceutical industry
- Agrochemical sector
- International transport of dangerous goods
- Industrial logistics and storage of ADR classified materials
Perfect for companies that require certified and compliant packaging for international shipments .
