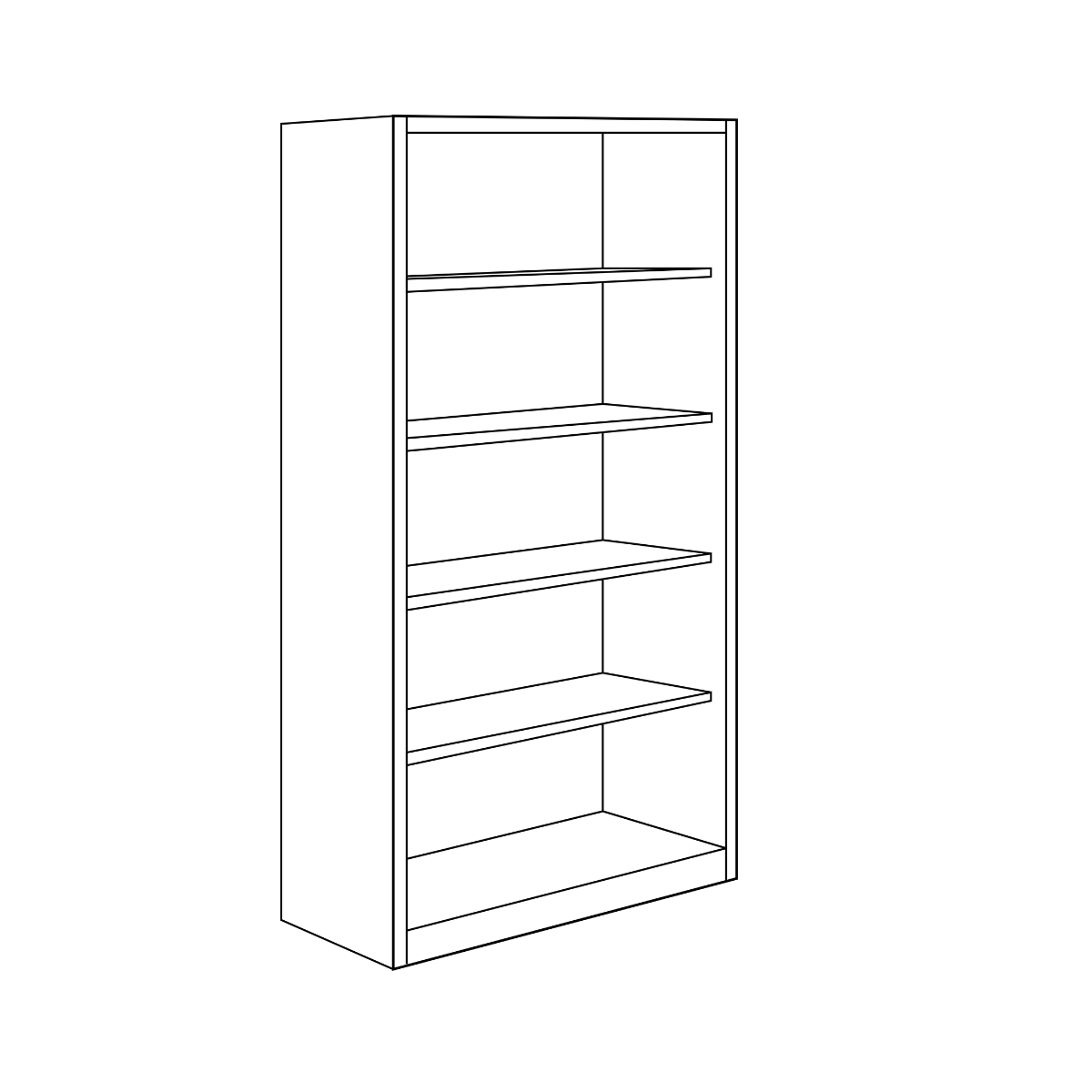

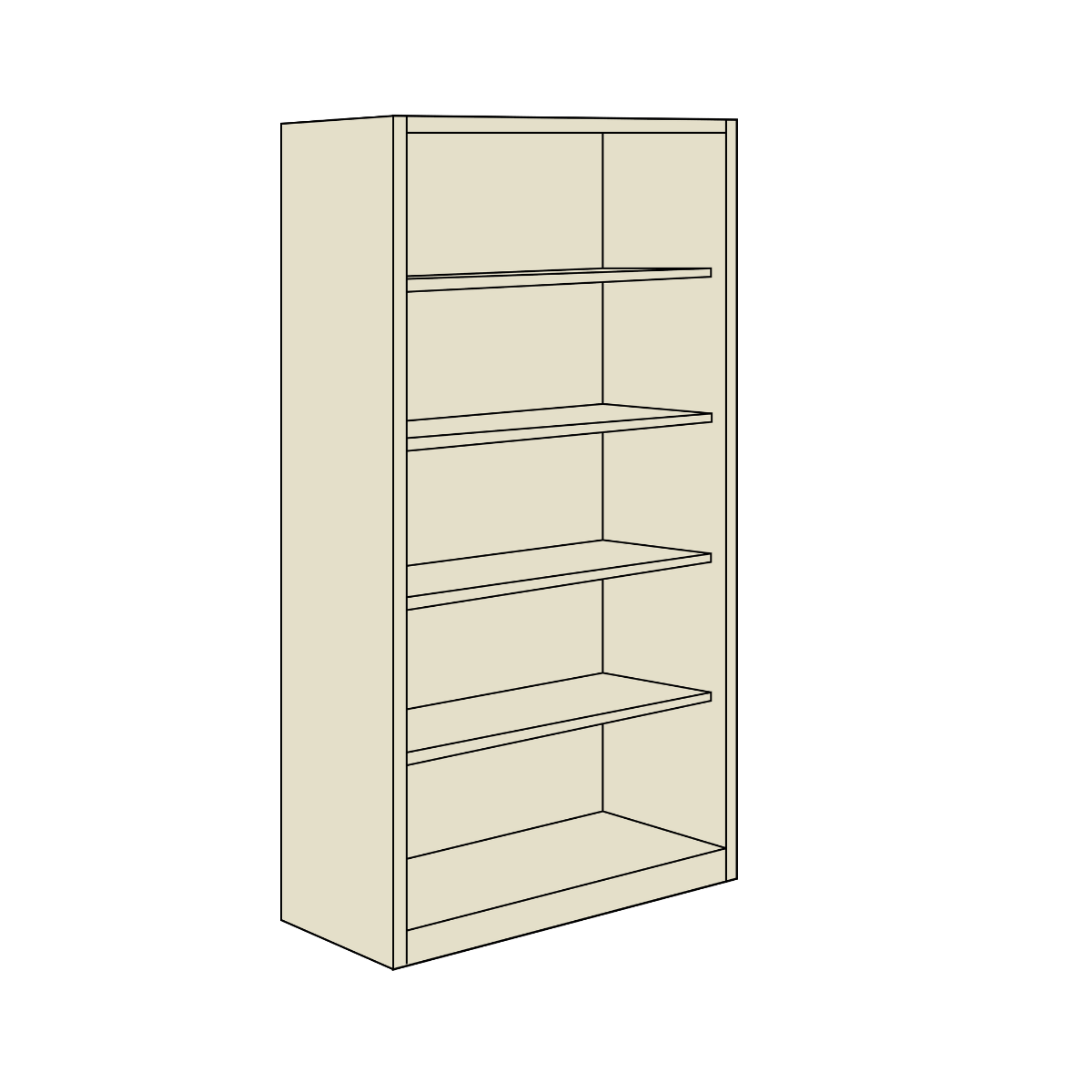

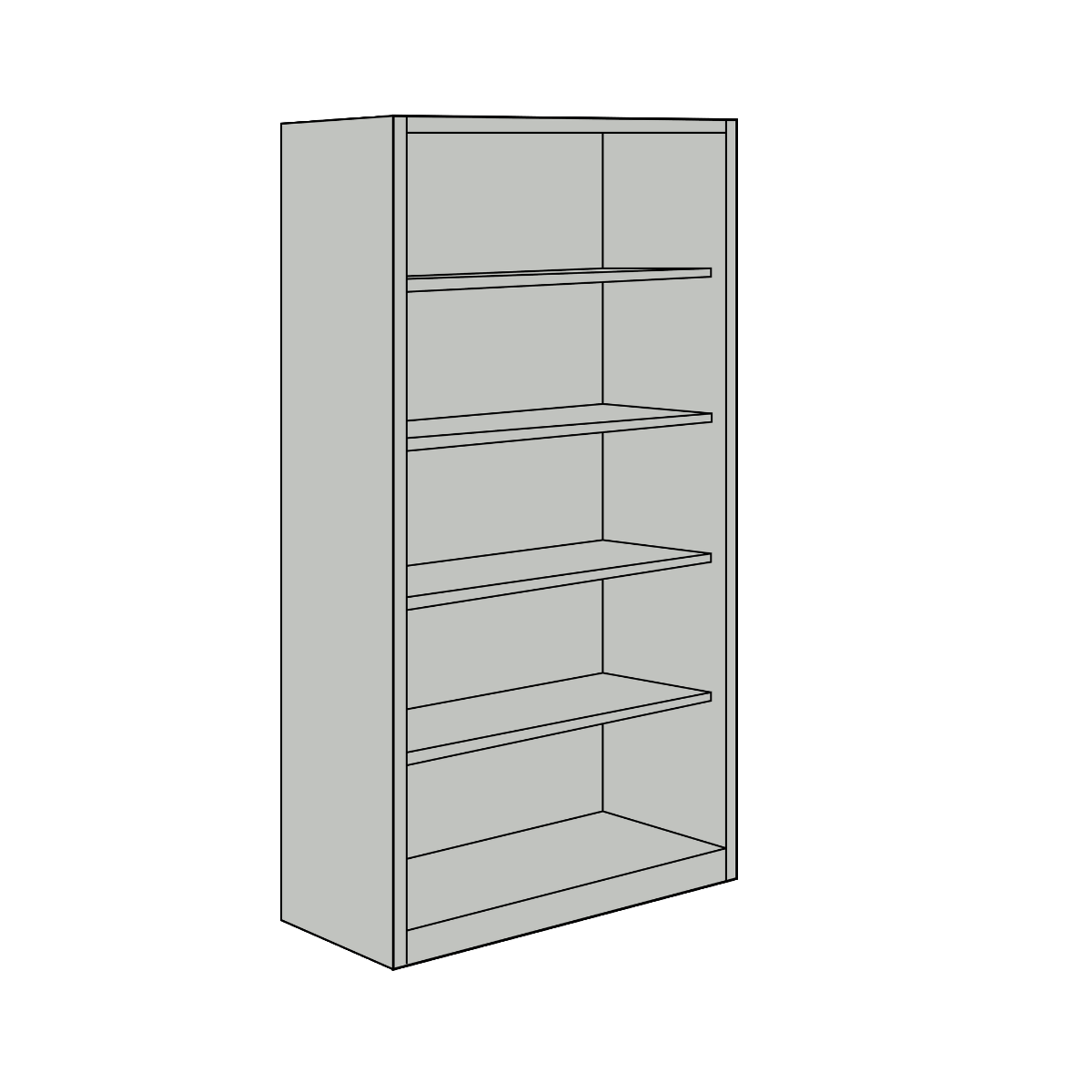

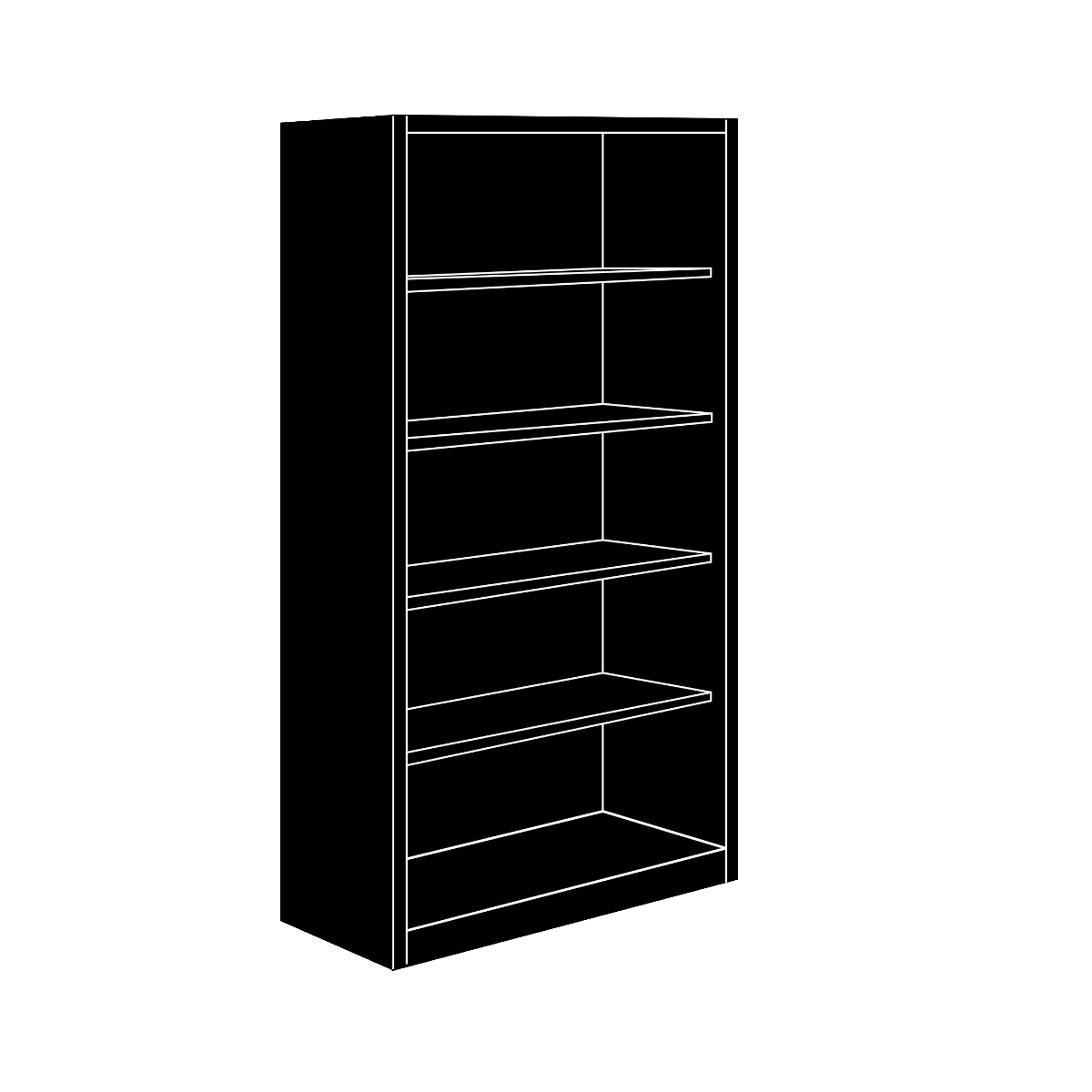

Open wardrobe - 4 adjustable shelves with rounded edges (without doors)
Open wardrobe - 4 adjustable shelves with rounded edges (without doors)
Product Description
| ART. | W (mm) | D (mm) | H (mm) | Weight (kg) |
| 210521 | 1000 | 375 | 2000 | 44 |
| 210021 | 1000 | 450 | 2000 | 52 |
| 210621 | 1000 | 600 | 2000 | 62 |
| 212521 | 1200 | 375 | 2000 | 58 |
| 212021 | 1200 | 450 | 2000 | 66 |
| 212621 | 1200 | 600 | 2000 | 78 |
W=Width
D=Depth
H=Height
The measurements are expressed in millimetres
General information
These office cabinets are characterized by maximum functionality.
- Steel sheet painted with scratch-resistant epoxy powders.
- Rounded edges.
- Shelves and tops designed for the application of suspended folders at 330 mm centre distance.
- Available colours: Grey (RAL 7035), Anthracite (RAL 7016), Sand (RAL 1013), White (RAL 9003) and Black (RAL 9005).
- Further colors in addition to those selectable and available only on request .
Made of DCO1 steel sheet (formerly FeP01, ref. EN 10130 91 + A1-98 standards) with thicknesses of 8 tenths, with assembly details in 15 tenths.
The sides of the cabinets, with a rounded front external edge with a radius of 6mm, are fixed to the base using 4+4 metal hooks stamped in 15/10 sheet metal, the top is fixed to the sides using 4 8MA threaded bolts.
The backs are fixed to the cabinet structure with self-tapping screws, to ensure maximum rigidity.
The 100 and 120 cm wide, 200 cm high wardrobes have a single compartment with 4 adjustable shelves on a 25 mm pitch rack.
The anti-scratch epoxy powder coating is carried out after a microphosphating process with passivating neutralization. Drying takes place in a thermal tunnel with heat progression (180°) and at a controlled temperature.
The metal cabinets have been designed and tested according to the following UNI standards:
UNI 8596/84 Stability
UNI 8597/84 Structural resistance
UNI 8601/84 Bending of planes
UNI 8603/84 Resistance of the floor supports
UNI 8600/84 Bending with concentrated load
UNI 8606/84 Maximum total load
Finishing tests:
UNI ISO9227/93 Corrosion resistance
UNI 9427/89 Resistance to light
UNI 8901/86 Impact resistance
UNI 115/87 Taber abrasion
UNI 9428/89 Scratch resistance
EN 12720/97 Resistance to cold liquids (stains)
EN 12721/97 Resistance to moist heat
EN 12722/97 Resistance to dry heat
EN ISO 1520/95 Static drawing
UNI 9240/87 Adhesion of finishes to the substrate
