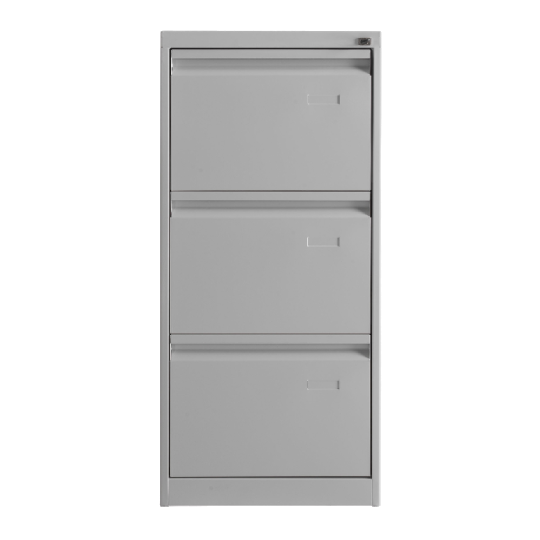

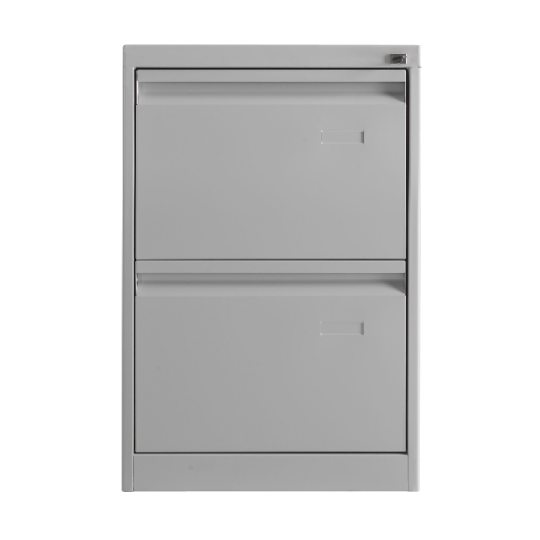

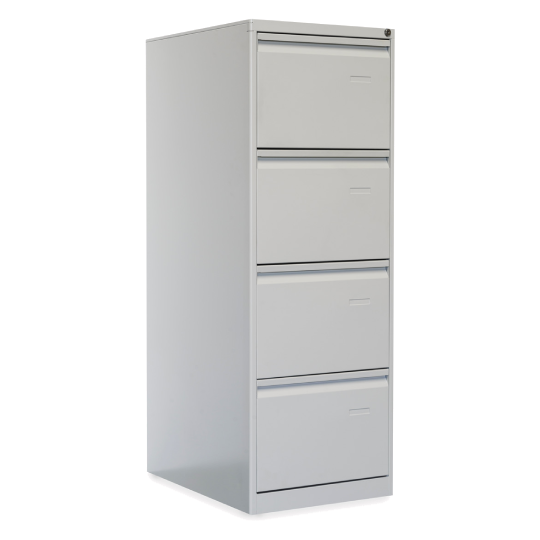

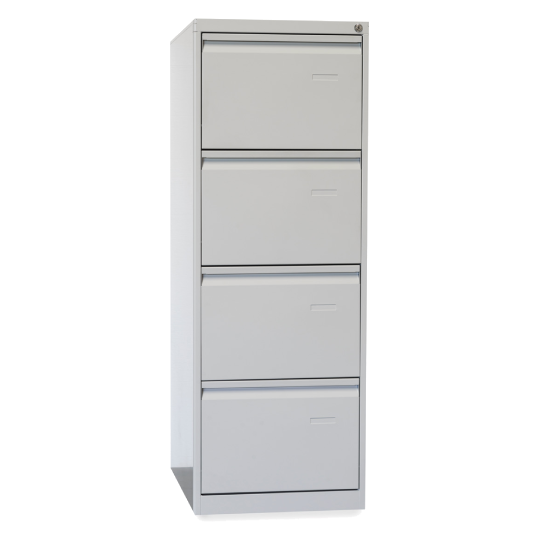

Filing cabinet with drawers - rounded edges - fully extractable telescopic guides
Filing cabinet with drawers - rounded edges - fully extractable telescopic guides
Product Description
| ART. | W (mm) | D (mm) | H (mm) | No. of drawers | Weight (Kg) |
| 149072 | 490 | 650 | 732 | 2 | 41 |
| 149103 | 490 | 650 | 1045 | 3 | 55 |
| 149135 | 490 | 650 | 1358 | 4 | 69 |
W=Width
D=Depth
H=Height
The measurements are expressed in millimetres
General information
These filing cabinets are designed for a solid and safe office.
- Steel sheet painted with scratch-resistant epoxy powders.
- Shoulders and drawers with rounded edges.
- Fully extendable drawers on telescopic guides, designed for the application of suspended files at 330 and 395 mm centre distances.
- Drawers equipped with handles and tag holders.
- Internal usable dimensions of the drawers: cm40×57.5×28.5.
- Anti-tip system that allows only one drawer to be opened at a time.

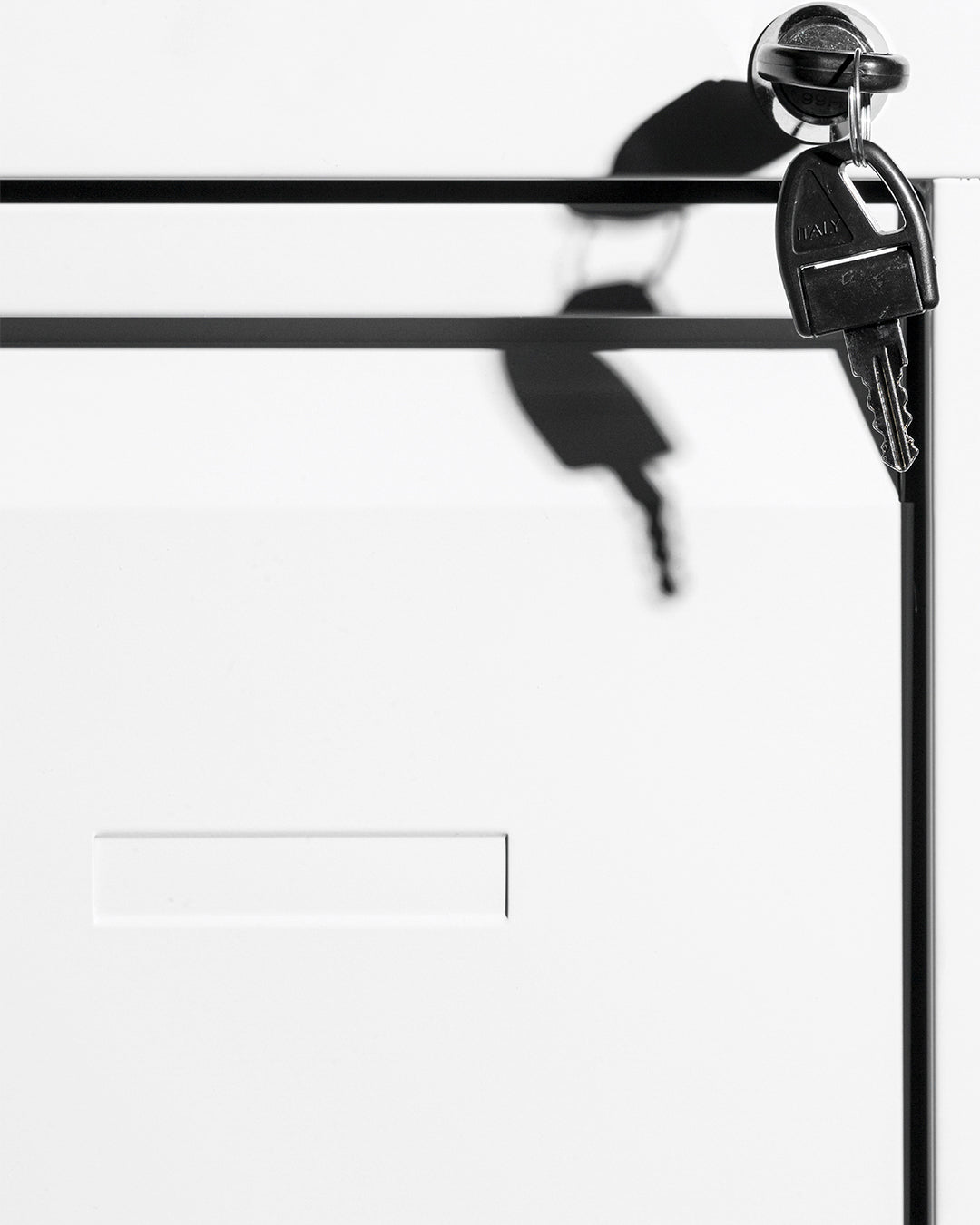

- Simultaneous locking on all drawers.
- 3 versions available: 2, 3 and 4 drawers.
- Available colours: Grey (RAL 7035), Anthracite (RAL 7016), Sand (RAL 1013), White (RAL 9003) and Black (RAL 9005)
- Additional colors beyond those selectable are available upon request only .
Made of DCO1 steel sheet (formerly FePO1, ref. EN 10130 91 + Al-98 standards) with thicknesses of 8 tenths, with assembly details in 15 tenths.
The anti-scratch epoxy powder coating is carried out after a microphosphating process with passivating neutralization. Drying takes place in a thermal tunnel with heat progression (180°) and at a controlled temperature.
The metal classifiers have been designed and tested according to the following UNI standards:
UNI 9604/90 Resistance of drawer bottoms
UNI 8596/84 Stability
UNI 8604/84 Duration of drawer guides
UNI 8605/84 Resistance of drawer guides
UNI 9087/87 Resistance of the limit switch when opening the drawer
UNI 8606/84 Maximum total load
