Containers in corrugated sheet metal for vertical drum storage
Containers in corrugated sheet metal for vertical drum storage
Product Description
| ART. | External dimensions (W x D x H) mm | Internal dimensions (W x D x H) mm | Collection tank capacity | Paneling | Opening | Door Light |
| 1Z000259 | 3000 x 2000 x 2400 | 2800 x 1800 x 2000 | 780 Lt | Corrugated sheet metal | Swing door |
6 / 8 200 Lt Drums
|
| 1Z000260 | 3000 x 2000 x 2400 | 2900 x 1900 x 2000 | 780 Lt | Corrugated sheet metal | Sliding doors |
6 / 8 200 Lt Drums
|
| 1Z000262 | 3500 x 2000 x 3500 | 3300 x 1800 x 2530 | 1400 Lt | Corrugated sheet metal | Swing door |
12/16 200 Lt Drums
|
| 1Z000263 | 3500 x 2000 x 3500 | 3300 x 1800 x 2530 | 1400 Lt | Corrugated sheet metal | Sliding doors |
12/16 200 Lt Drums
|
| 1Z000265 | 5000 x 2300 x 3000 | 4900 x 2200 x 2530 | 2300 Lt | Corrugated sheet metal | Swing doors |
16 or 24 200 Lt drums
|
| 1Z000267 | 6000 x 2300 x 2400 | 5800 x 2100 x 2000 | 1794 Lt | Corrugated sheet metal | Sliding doors |
12/16 200 Lt Drums
|
| 1Z000269 | 6000 x 2300 x 3000 | 5900 x 2200 x 2530 | 2760 Lt | Corrugated sheet metal | Sliding doors |
32 x 200 Lt Drums
|
General information

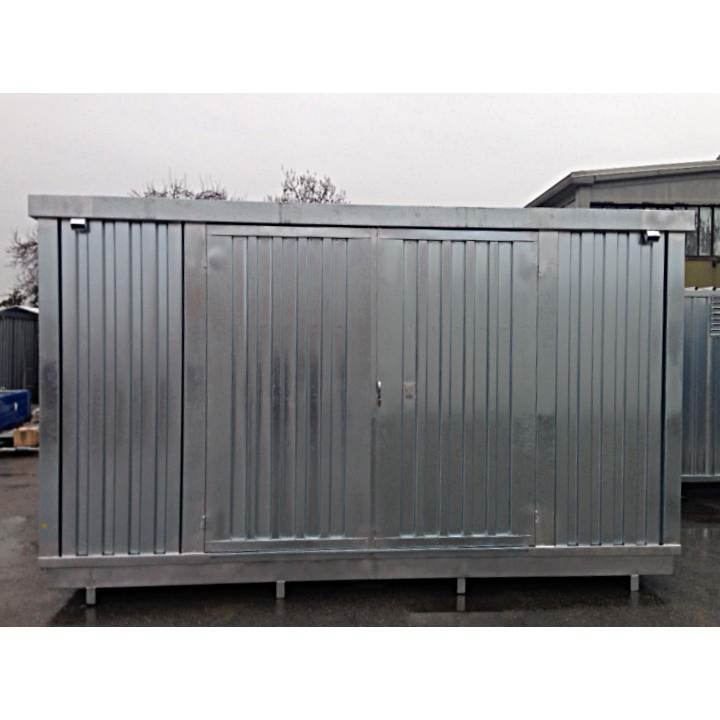

Safety container made of galvanized corrugated sheet metal for the storage of vertically positioned drums.
The container is equipped with:
CONTAINMENT TANK

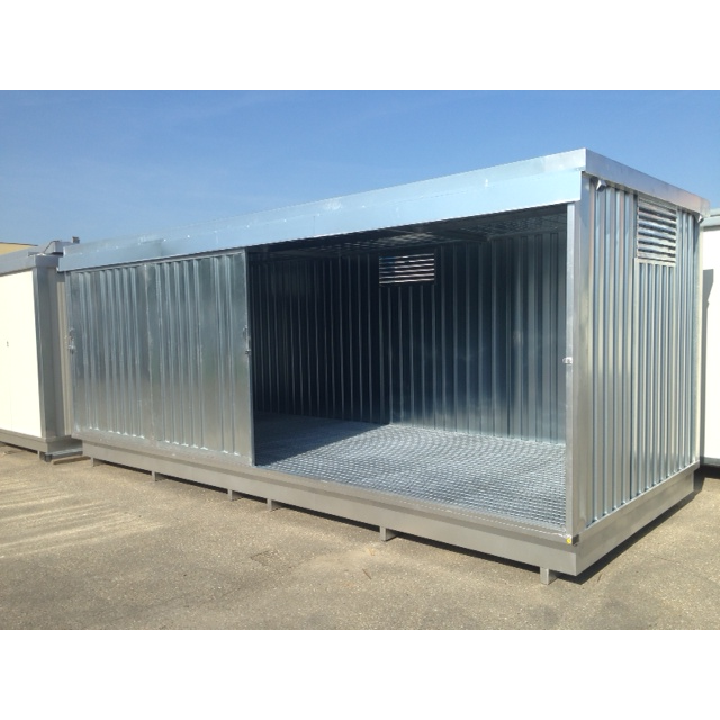

Each container is equipped with a lower containment tank with a support grid made of galvanized carbon steel with high-capacity meshes.
The capacity of the containment tank is calculated on a Capacity not less than 1/3 of the overall geometric capacity of the tanks located in it and in any case at least equal to the capacity of the largest tank (Ministerial Decree of 05.18.1995).
NATURAL VENTILATION
Natural ventilation of the containers is ensured for 1/30 of their floor area, as required by the Ministerial Decree of 18.05 1995
REGISTRATION
Each container produced is subjected to control checks. Each container is registered and provided with safety labelling (Legislative Decree 81/08)
OPTIONAL
Upon request, each container can be supplied with:
internal perimeter shelving; panic handles; access ramps; emergency kit for absorbing accidental spills;
We customize each container upon customer request.
We make special sizes and systems on request.
Examples of applied systems:
- ATEX lighting systems
- Intrusion alarm systems
- Explosion-proof forced suction and filtration
- ATEX suction and filtration systems
- smoke detectors for automatic closing
- air conditioning systems
- lighting systems
