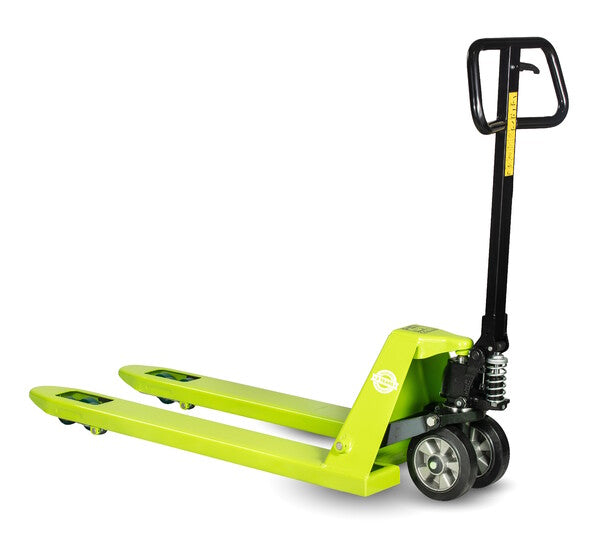

GS EVO 25 - Manual Pallet Truck - fork size 1150 x 525 mm
GS EVO 25 - Manual Pallet Truck - fork size 1150 x 525 mm
Product Description
| Characteristic | TE541AVY100 | TEB41AVY100 | TE541AV0100 | TEB41AV0100 |
|---|---|---|---|---|
| Capacity | 2500 KG | 2500 KG | 2500 KG | 2500 KG |
| Fork Length | 1150 | 1150 | 1150 | 1150 |
| Fork Width | 525 | 525 | 525 | 525 |
| Directional wheels / Loading rollers |
Poly / Single Poly |
Poly / Double Poly |
Eraser / single poly |
Eraser / double poly |
| Lifting Height (h3 mm) |
115 | 115 | 115 | 115 |
| Total Length (l1 mm) |
1550 | 1550 | 1550 | 1550 |
| Total Width (b1/b2 mm) |
525 | 525 | 525 | 525 |
| Forks - Width (and mm) |
150 | 150 | 150 | 150 |
| Stowage Corridor (mm ast) |
2048 | 2048 | 2048 | 2048 |
| Volta radius (Wa mm) |
1367 | 1367 | 1367 | 1367 |
Designed for those seeking a higher level of ergonomics and performance, the GS EVO 25 pallet truck extends the functionality of the basic model by integrating components designed to improve operator safety and comfort .
The 3D grip handle ensures a natural and comfortable grip from any angle, reducing hand fatigue during frequent maneuvers. The system is designed to promote continuous use even during extended work shifts , improving productivity and reducing physical effort.
Among the more technical features, the proportional descent valve stands out, which allows the load lowering speed to be adjusted with precision, ensuring smooth and safe movements , even with delicate goods.
The forks are equipped with entry and exit rollers , specifically designed to facilitate lifting on pallets with lateral slats , making each gripping operation quicker and easier.
As with the rest of the range, the load rollers and directional wheels of this model are made of non-marking polyurethane , offering silent, stable and gentle movement on floors , without compromising wear resistance.
The GS EVO 25 pallet truck is the ideal solution for warehouses, retail, logistics and industry where reliability, precision and superior operating comfort are required.
