GS EVO QUICKLIFT 25 - Manual Pallet Truck - fork size 1150 x 525 mm
GS EVO QUICKLIFT 25 - Manual Pallet Truck - fork size 1150 x 525 mm
Product Description
| Characteristic | TM541AVY100 | TMB41AVY100 | TM541AV0100 | TMB41AV0100 |
|---|---|---|---|---|
| Capacity | 2500 KG | 2500 KG | 2500 KG | 2500 KG |
| Fork Length | 1150 | 1150 | 1150 | 1150 |
| Fork Width | 525 | 525 | 525 | 525 |
| Directional wheels / Loading rollers |
Poly / Single Poly |
Poly / Double Poly |
Eraser / single poly |
Eraser / double poly |
| Lifting Height (h3 mm) |
115 | 115 | 115 | 115 |
| Total Length (l1 mm) |
1550 | 1550 | 1550 | 1550 |
| Total Width (b1/b2 mm) |
525 | 525 | 525 | 525 |
| Forks - Width (and mm) |
150 | 150 | 150 | 150 |
| Stowage Corridor (mm ast) |
2048 | 2048 | 2048 | 2048 |
| Volta radius (Wa mm) |
1367 | 1367 | 1367 | 1367 |

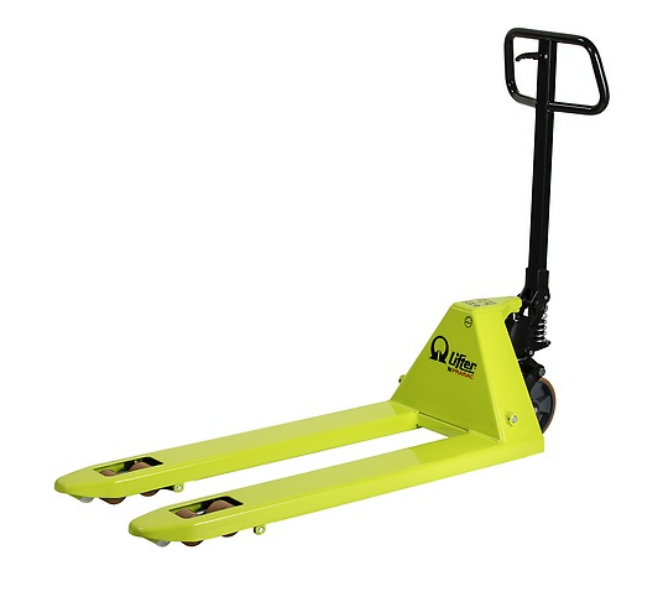

The GS EVO 25 QUICKLIFT pallet truck is the ideal choice for those looking for advanced ergonomics , robustness and operating speed . Designed for intensive use, it stands out for its quick lift function that allows you to lift the load from the ground with the minimum number of pumps, optimising times in the most frequent handling operations.
The EVO hydraulic pump is made with a monoblock body in high-strength cast iron , machined with CNC machines to guarantee dimensional precision and maximum reliability over time . The chromed piston and the oil seal ensure protection against rust and oil leaks during use.
Among the safety devices, the maximum pressure valve stands out, which protects the pallet truck from any overloads, while the proportional descent valve allows precise control of the load lowering speed. An ideal solution for handling fragile or delicate materials such as glass, ceramics or electronic components.
The forks are equipped with entry and exit rollers , which facilitate positioning in closed pallets and reduce the impact on the main rollers, prolonging their life. The nylon-polyurethane directional wheels and polyurethane rollers ensure smooth sliding and good wear resistance.
The 3D ergonomic helm is designed with large side surfaces to provide a natural grip from any angle, improving operator posture and reducing fatigue during continuous use.
The frame, after a careful preparation treatment, is painted with polyester powders at 250°C, to guarantee superior protection against wear and atmospheric agents .
