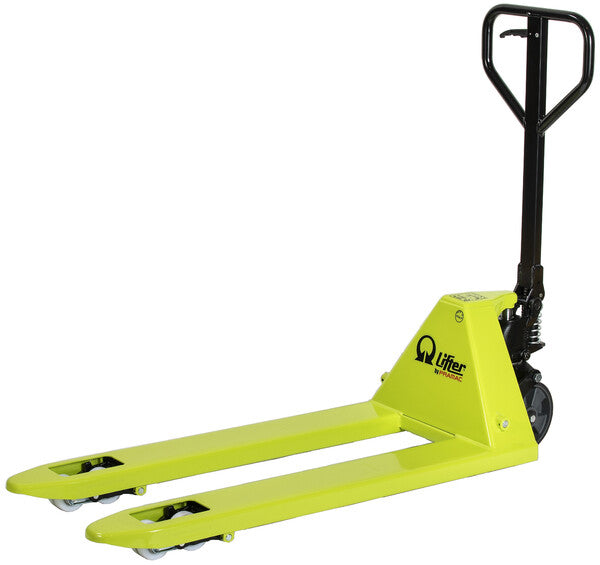

GS25 - Manual Pallet Truck - fork size 1150 x 525 mm
GS25 - Manual Pallet Truck - fork size 1150 x 525 mm
Product Description
| Characteristic | TA54100Y000 | TAB4100Y000 | TA5410V0000 | TAB410V0000 |
|---|---|---|---|---|
| Capacity | 2500 KG | 2500 KG | 2500 KG | 2500 KG |
| Fork Length | 1150 | 1150 | 1150 | 1150 |
| Fork Width | 525 | 525 | 525 | 525 |
| Directional wheels / Loading rollers |
Poly / single nylon |
Poly / double nylon |
Eraser / single poly |
Eraser / double poly |
| Lifting Height (h3 mm) |
115 | 115 | 115 | 115 |
| Total Length (l1 mm) |
1550 | 1550 | 1550 | 1550 |
| Total Width (b1/b2 mm) |
525 | 525 | 525 | 525 |
| Forks - Width (and mm) |
150 | 150 | 150 | 150 |
| Stowage Corridor (mm ast) |
2048 | 2048 | 2048 | 2048 |
| Volta radius (Wa mm) |
1367 | 1367 | 1367 | 1367 |
The GS25 represents the entry model to the pallet truck range, but it contains all the essential features to efficiently tackle daily handling activities. Thanks to its load capacity of 2500 kg , it is ideal for use in warehouses, points of sale, internal logistics, trucks and small businesses .
Compatible with the most common pallets, including Euro pallets , it is available in different fork configurations that adapt to the main handling needs. The solid and compact structure allows to operate even in restricted spaces, always offering high maneuverability.
The GS25 pallet truck features a new cast iron hydraulic unit , with integrated oil tank and chromed piston for greater durability and resistance over time. The ergonomic steering is designed to offer a comfortable and safe grip, and is fixed with a maintenance-free system , which increases its longevity and reduces its management costs.
The polyurethane directional wheels , supplied as standard, guarantee smoothness, silence and excellent performance even on delicate surfaces , such as industrial floors or tiles, without compromising their resistance.
The GS25 is the perfect solution for those looking for a basic yet high-performance manual pallet truck, reliable in standard applications and suitable for both intensive and occasional professional use.
