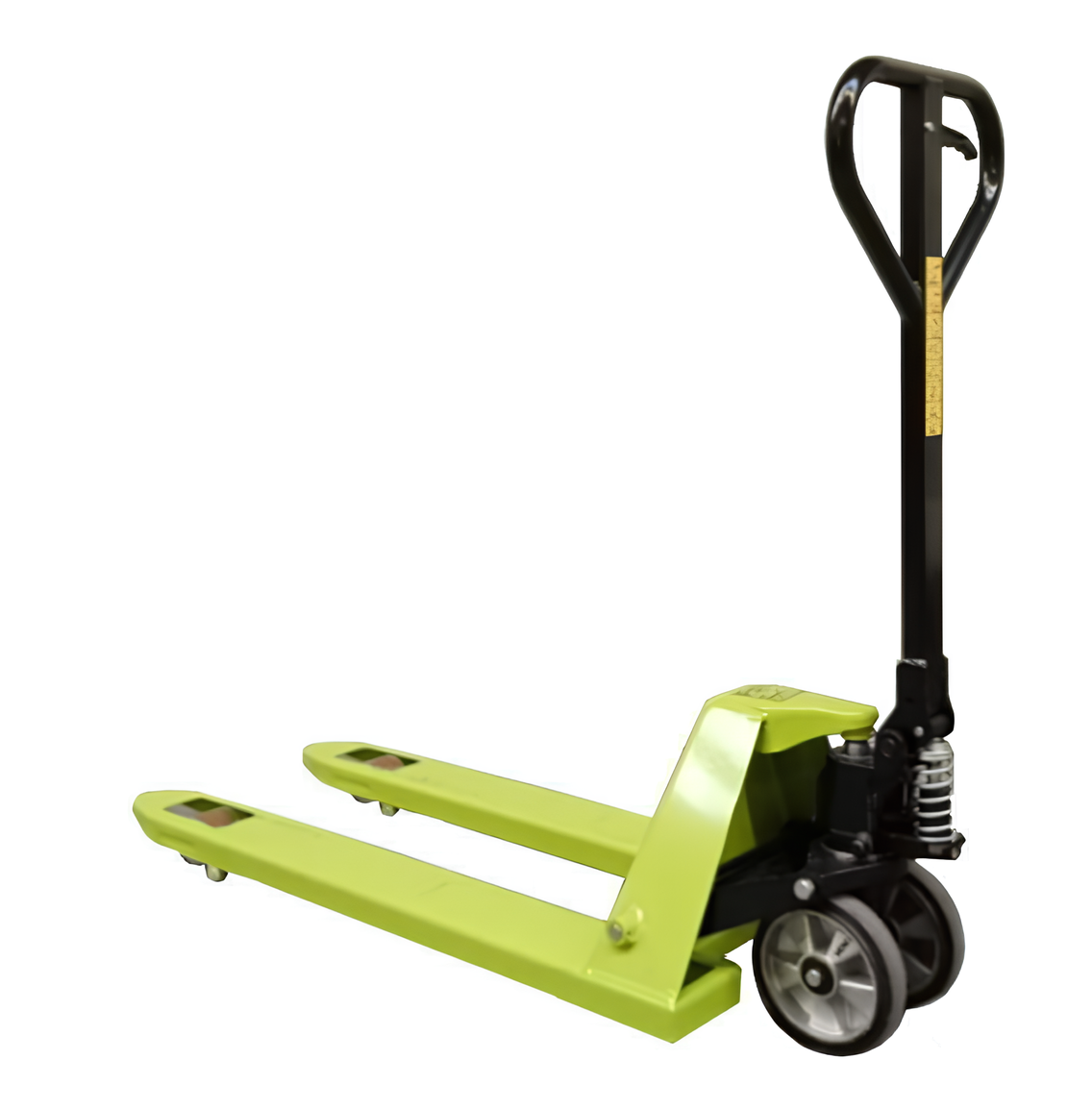

HPT 2.2 - Manual Pallet Truck - fork size 1150 x 525 mm
HPT 2.2 - Manual Pallet Truck - fork size 1150 x 525 mm
Product Description
| Characteristic | TUC410U0J00 | TUD410U0J00 |
|---|---|---|
| Capacity | 2200 KG | 2200 KG |
| Fork Length | 1150 | 1150 |
| Fork Width | 525 | 525 |
| Directional wheels / Loading rollers |
Poly / Single rubber |
Poly / Double rubber |
| Lifting Height (h3 mm) |
115 | 115 |
| Total Length (l1 mm) |
1550 | 1550 |
| Total Width (b1/b2 mm) |
525 | 525 |
| Forks - Width (and mm) |
150 | 150 |
| Stowage Corridor (mm ast) |
2048 | 2048 |
| Volta radius (Wa mm) |
1367 | 1367 |
Robust , precise and built for intensive use , the Pramac GS 22S4 hand pallet truck is designed to ensure reliability and operating comfort in every professional context. With a capacity of up to 2200 kg and dimensions optimised for standard pallets, it offers high performance in daily handling in warehouses , workshops and industrial environments .
The cast iron body protects the internal components from impacts and stresses, while the chromed piston rod , combined with the oil seal , ensures long life , protection from corrosion and sealing against oil leaks . The CNC pump guarantees precision and reliability even in the most critical mechanical details.
The ON-OFF lowering system allows safe control of the load during lowering, while the maximum pressure valve protects the pallet truck from accidental overloads . The ergonomic tiller with quadruple steering wheel integrates all the controls in a single lever, improving control and reducing fatigue during prolonged use.
Polyurethane rollers and rubber steering wheels ensure silent and stable movement , even on delicate surfaces . The powder coating , applied in an electrostatic field , protects the structure from wear and atmospheric agents .
The equipment is completed by a quick assembly system for the handlebar and an adjustable brake , which allows for safe use even on ramps and slopes , with a parking lock function .
.
