| ART. | L (mm) | P (mm) | H (mm) |
Scope
(kg)
|
Wire diameter (mm) |
| DS-PG-890x810 | 890 |
810 |
40 | 1000 |
4.3 |
| DS-PG-890x910 | 890 | 910 | 40 | 1100 | 5 |
| DS-PG-890x1010 | 890 | 1010 | 40 | 1000 | 5 |
| DS-PG-1115x1010 | 1115 | 1010 | 40 | 1500 | 5 |
| DS-PG-1320x1010R | 1320 | 1010 | 40 | 1500 | 5 |
| DS-PG-1460x1010 | 1460 | 1010 | 40 | 1300 | 5 |
| DS-PG-1320x1110R | 1320 | 1110 | 40 | 1500 | 5 |
| DS-PG-890x1110 | 890 | 1110 | 40 | 1000 | 5 |
| DS-PG-890x1210 | 890 | 1210 | 40 | 900 | 5 |
| DS-PG-890x10104 | 890 | 1010 | 40 | 600 | 4 |
L=Width
P=Depth
H=Height
The measurements are expressed in millimetres
General informations

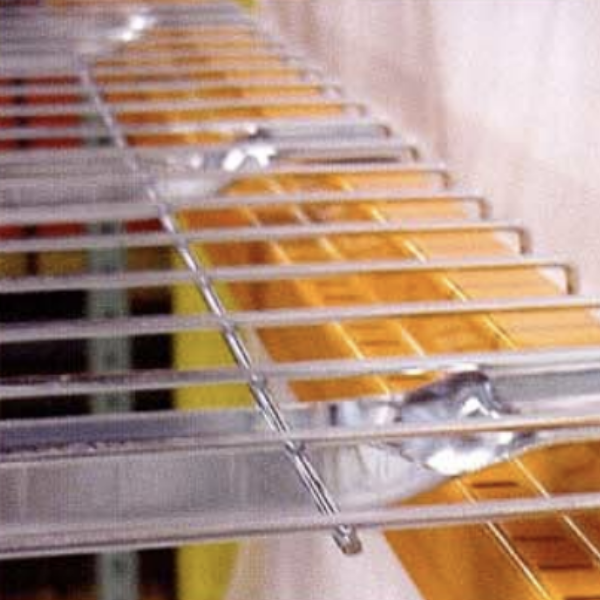

The Grid Plan mesh shelves are valid panels with reinforcing omegas that allow a resistant alternative to wood and blind loading floors.Ready for assembly and at a competitive cost, they are a guarantee for the correct functioning of fire sprinkler systems.
Standard availability for shelves in a depth of 1000 mm, with lengths adaptable to any beam length.
The following variant with a length (L) of 890 mm is available upon request:
- 800mm deep
- 900 mm of depth
- 1100 mm of depth
For further information, please consult the technical data sheet
