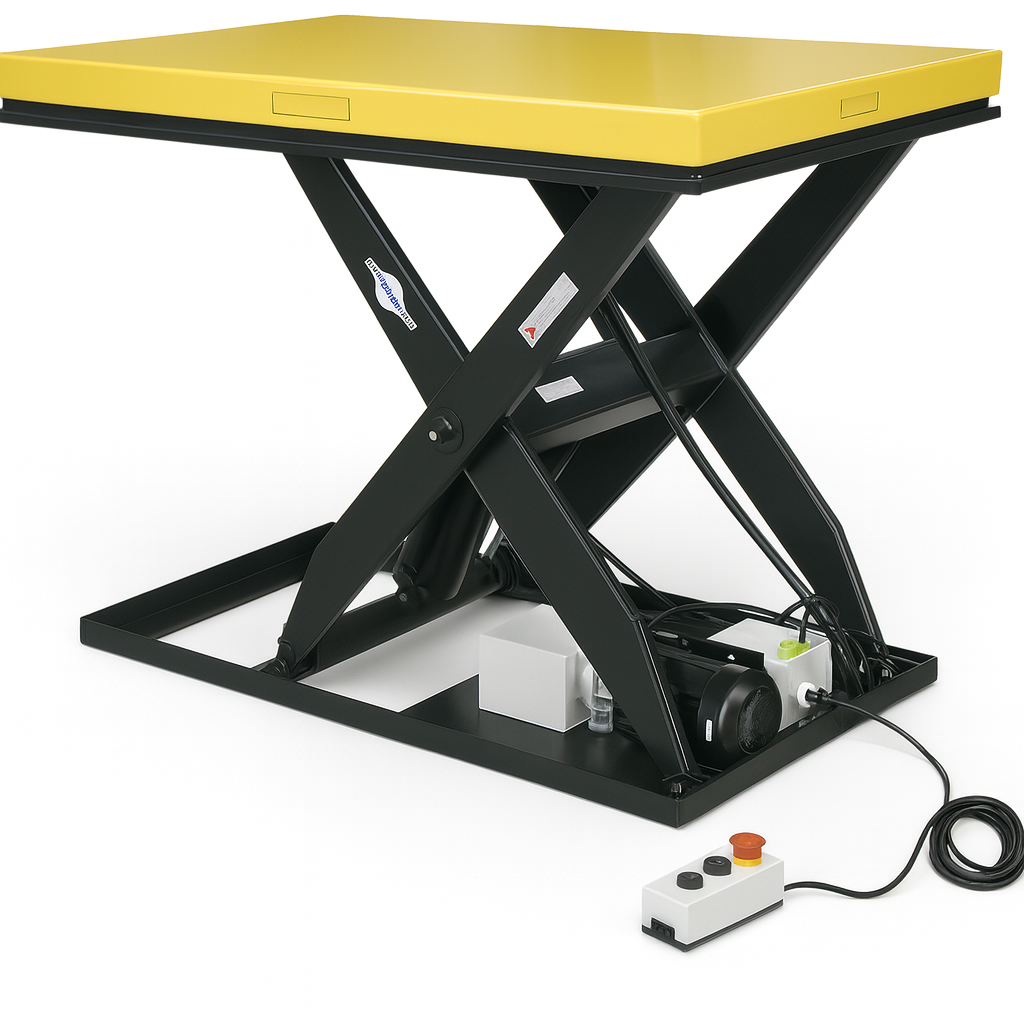

Single-phase electric platforms with a capacity of 1000 to 2500 kg
Single-phase electric platforms with a capacity of 1000 to 2500 kg
Product Description
| Code | Capacity (Kg) | Table top dimensions (mm) | H. Max (mm) | H. Min (mm) | Weight (Kg) |
|---|---|---|---|---|---|
| NPF100 EM | 1000 | 1300 × 800 | 1010 | 190 | 220 |
| NPF200 EM | 2000 | 1300 × 800 | 1010 | 190 | 280 |
| NPF150 EM | 1500 | 1220 × 915 | 990 | 200 | 240 |
| NPF250 EM | 2500 | 1420 × 815 | 1220 | 220 | 290 |
| NPF250 ELM | 2500 | 1830 × 1220 | 1220 | 220 | 340 |
| NPF100 EPM | 1000 | 1220 × 610 | 990 | 200 | 280 |
| NPF100 EQM | 1000 | 1220 × 1220 | 990 | 200 | 280 |
| NPF200 EQM | 2000 | 1220 × 1220 | 990 | 200 | 280 |
| NPF200 EHM | 2000 | 1700 x 1000 | 1300 | 250 | 300 |
General information
Single-phase electric scissor lifts offer a compact, safe and reliable solution for the vertical movement of materials and equipment up to 25,00 kg .
Designed for simple and intuitive use, they are ideal in industrial, artisanal and logistical contexts where it is necessary to combine high performance and ease of use .
The single-phase electric transmission ensures smooth and silent operation, perfect even in environments with limited space or where three-phase power is not available.
The single scissor mechanism ensures stability and precision during lifting, reducing maintenance and increasing productivity.
Main advantages
-
Single-phase electric drive : efficient, practical and suitable for any standard system.
-
Stable and controlled movement with integrated control unit and push-button controls.
-
Reinforced steel structure , sturdy and durable even under intensive loads.
-
Improved ergonomics , with reduced physical effort for the operator.
-
Easy installation thanks to the compact design and low height.
-
Maximum safety in compliance with European regulations on lifting and workplace safety.
Ideal for
-
Workshops and technical laboratories
-
Warehouses and loading/unloading areas
-
Production departments and assembly lines
-
Craft and maintenance activities
