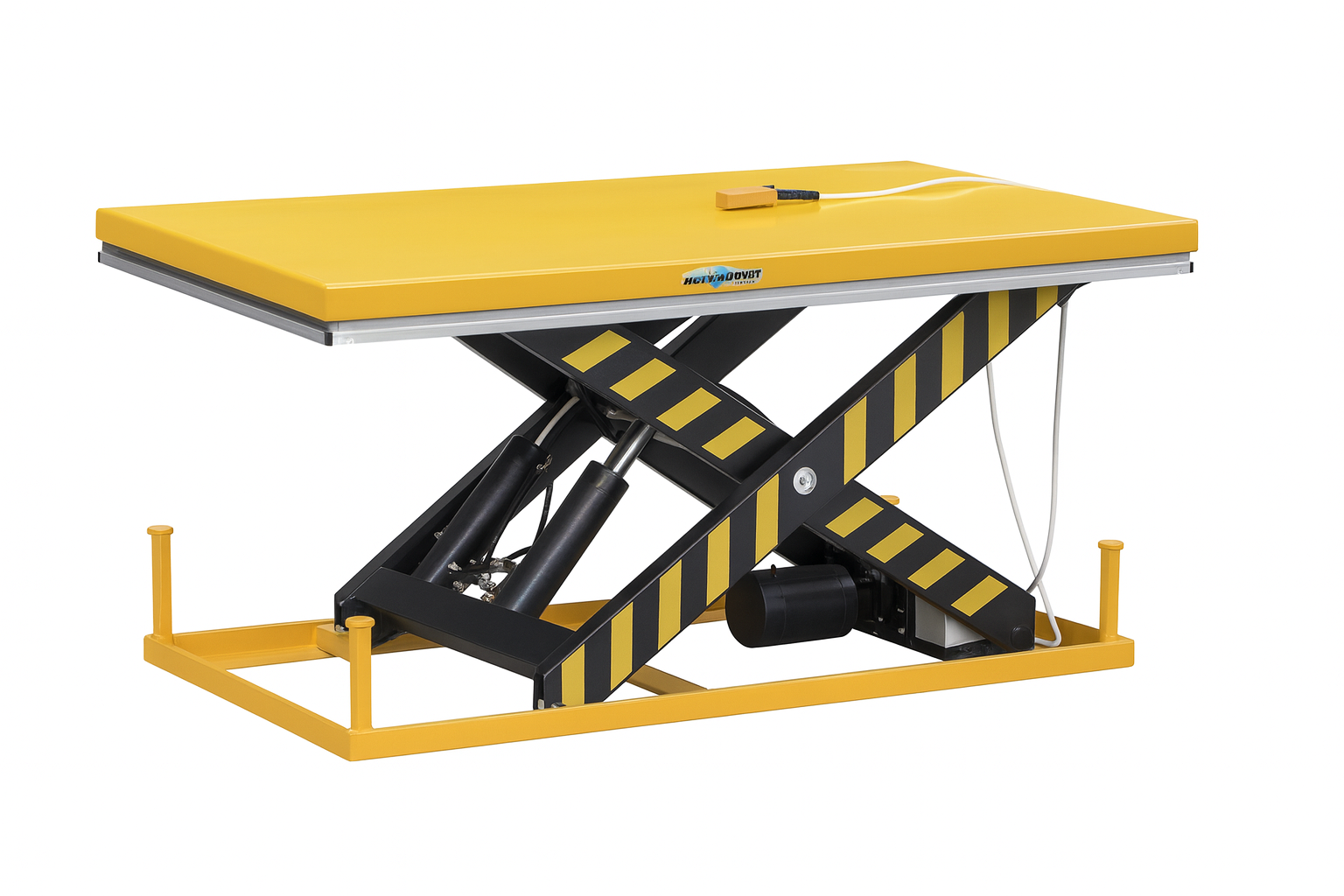

Three-phase electro-hydraulic platforms with a capacity of 1000 to 4000 kg
Three-phase electro-hydraulic platforms with a capacity of 1000 to 4000 kg
Product Description
| Code | Capacity (Kg) | Table top dimensions (mm) | H. Max (mm) | H. Min (mm) | Weight (Kg) |
|---|---|---|---|---|---|
| NPF200 A | 2000 | 2000 × 1500 | 1550 | 250 | 575 |
| NPF300 A | 3000 | 2000 × 1500 | 1600 | 300 | 657 |
| NPF200 B | 2000 | 2200 × 1500 | 1850 | 250 | 628 |
| NPF300 B | 3000 | 2200 × 1500 | 1900 | 300 | 720 |
| NPF100 EL | 1000 | 1600 × 1000 | 1000 | 230 | 264 |
| NPF200 EL | 2000 | 1600 × 1000 | 1000 | 230 | 268 |
| NPF400 EL | 4000 | 1700 × 1200 | 1050 | 240 | 375 |
General information
The Mayermoover industrial series three-phase electric lifting platforms are designed to ensure high performance, reliability and safety in load handling and positioning operations.
Thanks to the reinforced single scissor structure and the three-phase electric lifting system , these platforms offer stable, precise and silent operation, even with loads up to 4000 kg .
Built with high-strength steel and equipped with large worktops (up to 2200 × 1500 mm), they are the ideal choice for industrial settings where maximum efficiency and durability are required.
Main advantages
-
Powerful and constant electric lifting , with three-phase motor and integrated control unit.
-
Robust and balanced structure , suitable for continuous use in production environments.
-
Larger work surface , ideal for moving bulky machinery and pallets.
-
Precision and stability when lifting and lowering the load.
-
Reduction of physical effort for operators and greater safety in operations.
-
Compact and modular design , easy to integrate into production lines or loading docks.
Ideal for
-
Assembly lines and industrial production departments
-
Warehouses and logistics platforms
-
Mechanical and carpentry workshops
-
Laboratories and industrial maintenance areas
-
Packing and loading stations
