Product Description
| Technical specifications | ROLL STD 120x80 MU ROLS 0170H4M0 |
ROLL RINF 120x80 MU ROLR 0170H4R0 |
ROLL RINF 120x100 MU ROLR 0180H4R0 |
|---|---|---|---|
| External dimensions (mm) | 1200 x 800 x 1800 | 1200 x 800 x 1800 | 1200 x 1000 x 1800 |
| Internal dimensions (mm) | 1140 x 740 x 1640 | 1140 x 740 x 1640 | 1140 x 940 x 1640 |
| Weight | 58 kg | 47 kg | 49 kg |
| Mesh net | 50 x 50 mm |
105–155 mm h 380–395 mm |
105–155 mm h 380–395 mm |
The MU (multipurpose) roll containers of the ROLS and ROLR series represent a highly professional solution to facilitate the transport, storage and handling of goods in complex logistics environments such as warehouses , supermarkets , distribution centres , industries and laundries .
With dimensions compatible with standard (1200x800 mm) and extended (1200x1000 mm) pallets , these roll cages offer maximum operational versatility, excellent structural strength and excellent protection of goods during handling.
All models are demountable , electrolytically galvanized , equipped with Ø100 mm black polypropylene wheels (2 fixed + 2 swivel) and designed for intensive use. They are available in versions with a 50x50 mm fine mesh or a reinforced wide mesh , and with a side or front folding opening.
Detailed technical characteristics

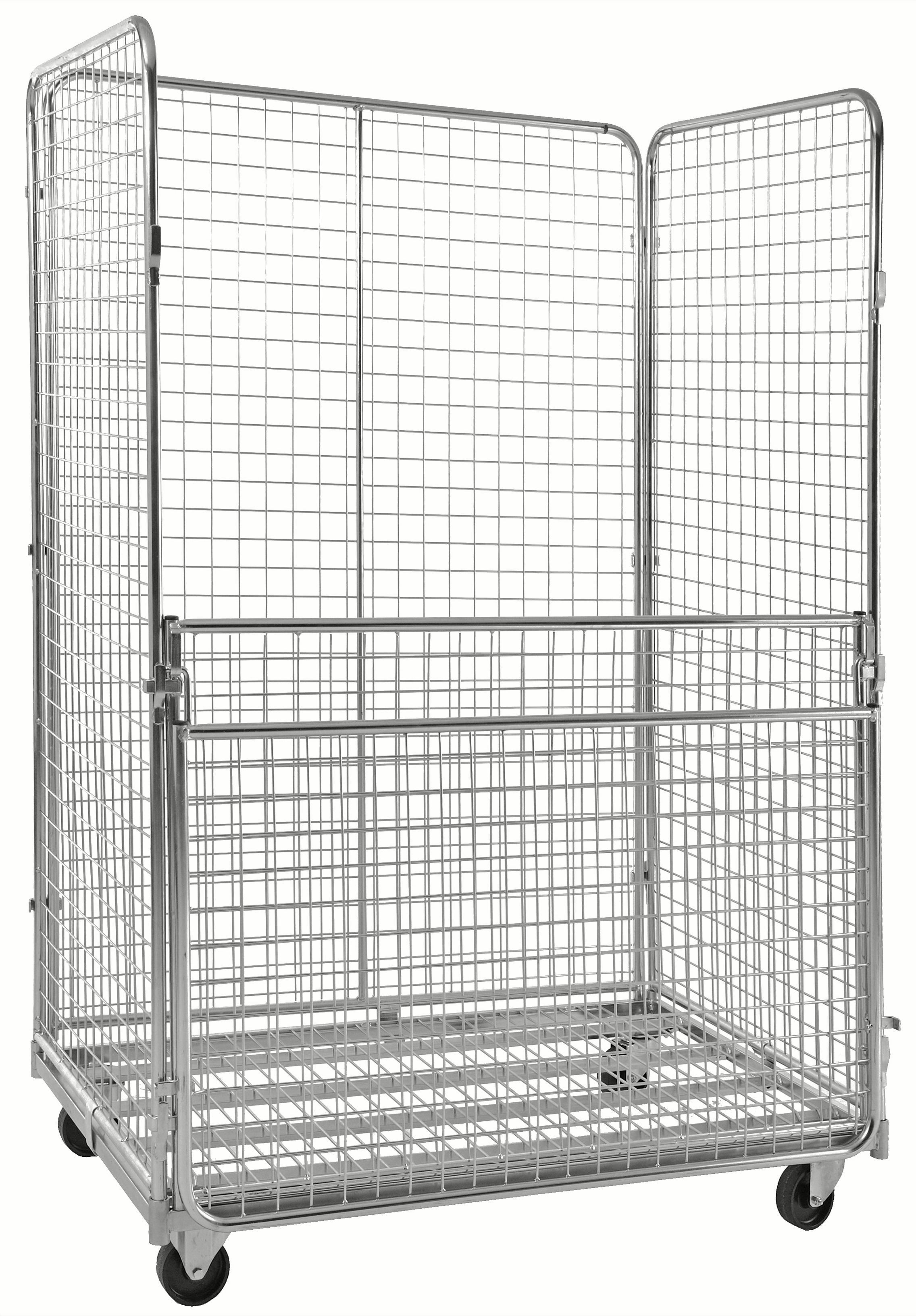

ROLL STD 120x80 MU – Code ROLS 0170H4M0
-
External dimensions : 1200 x 800 x h. 1800 mm
-
Internal dimensions : 1140 x 740 x h. 1640 mm
-
Weight : 58 kg
-
Load capacity : 400 kg
-
Opening : ½ fold-down front panel
-
Mesh size : 50 x 50 mm
-
Wheels : 2 fixed + 2 swivel Ø 100 mm in black polypropylene
-
Finish : white/blue electrolytic zinc plating

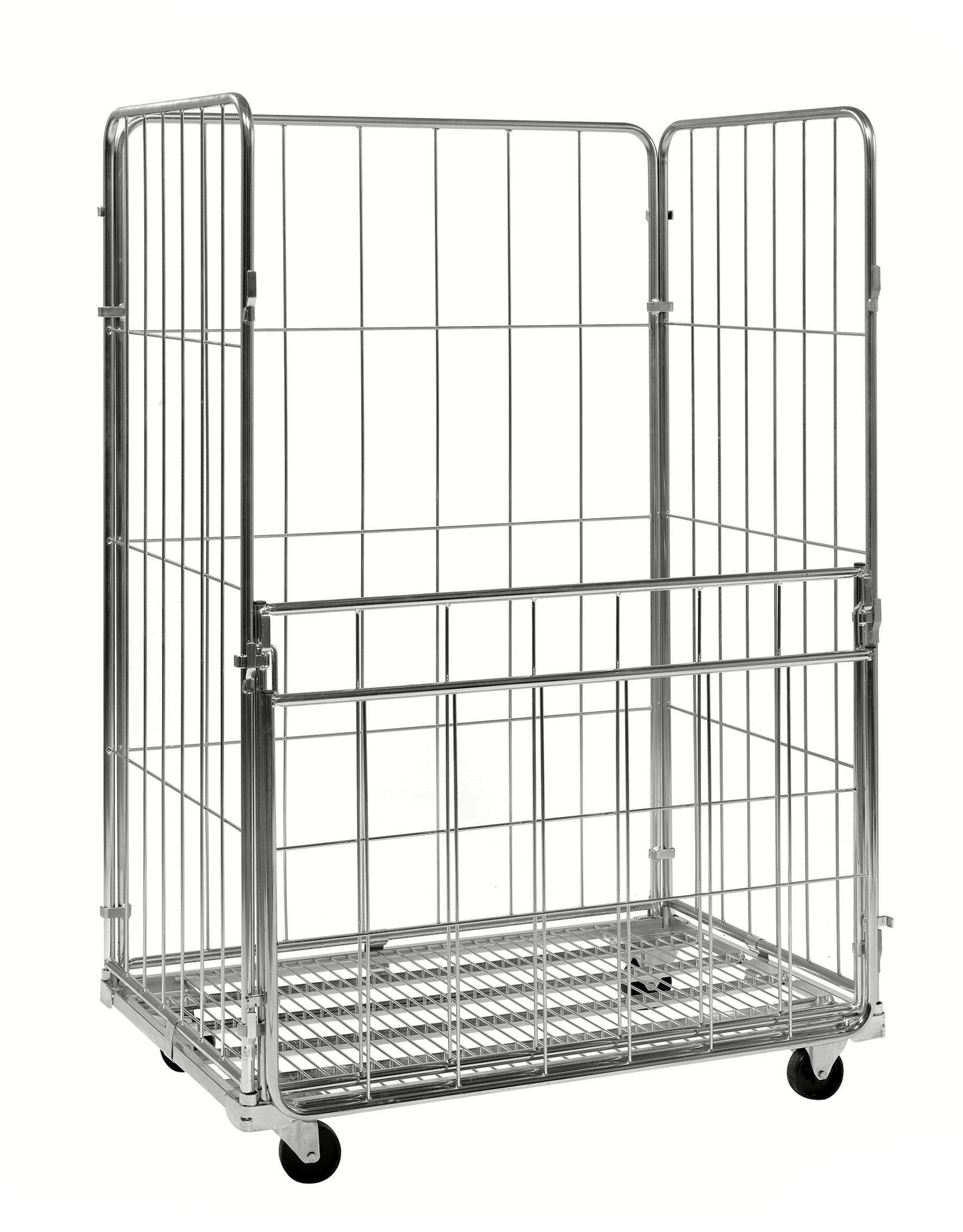

ROLL RINF 120x80 MU – Cod. ROLR 0170H4R0
-
External dimensions : 1200 x 800 x h. 1800 mm
-
Internal dimensions : 1140 x 740 x h. 1640 mm
-
Usable volume : 1.43 m³
-
Weight : 47 kg
-
Load capacity : 400 kg
-
Opening : side 1200 mm
-
Mesh size : 105 to 155 mm x h 380 to 395 mm
-
Wheels : 2 fixed + 2 swivel Ø 100 mm in black polypropylene
-
Finish : white/blue electrolytic zinc plating

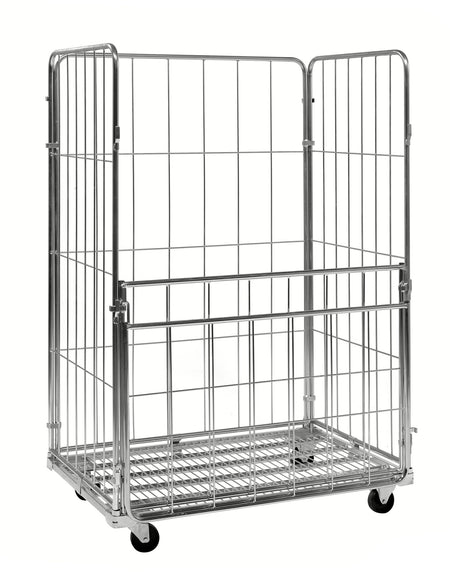

ROLL RINF 120x100 MU – Code ROLR 0180H4R0
-
External dimensions : 1200 x 1000 x h. 1800 mm
-
Internal dimensions : 1140 x 940 x h. 1640 mm
-
Weight : 49 kg
-
Load capacity : 400 kg
-
Opening : side 1200 mm
-
Mesh size : 105 to 155 mm x h 380 to 395 mm
-
Wheels : 2 fixed + 2 swivel Ø 100 mm in black polypropylene
-
Finish : white/blue electrolytic zinc plating
