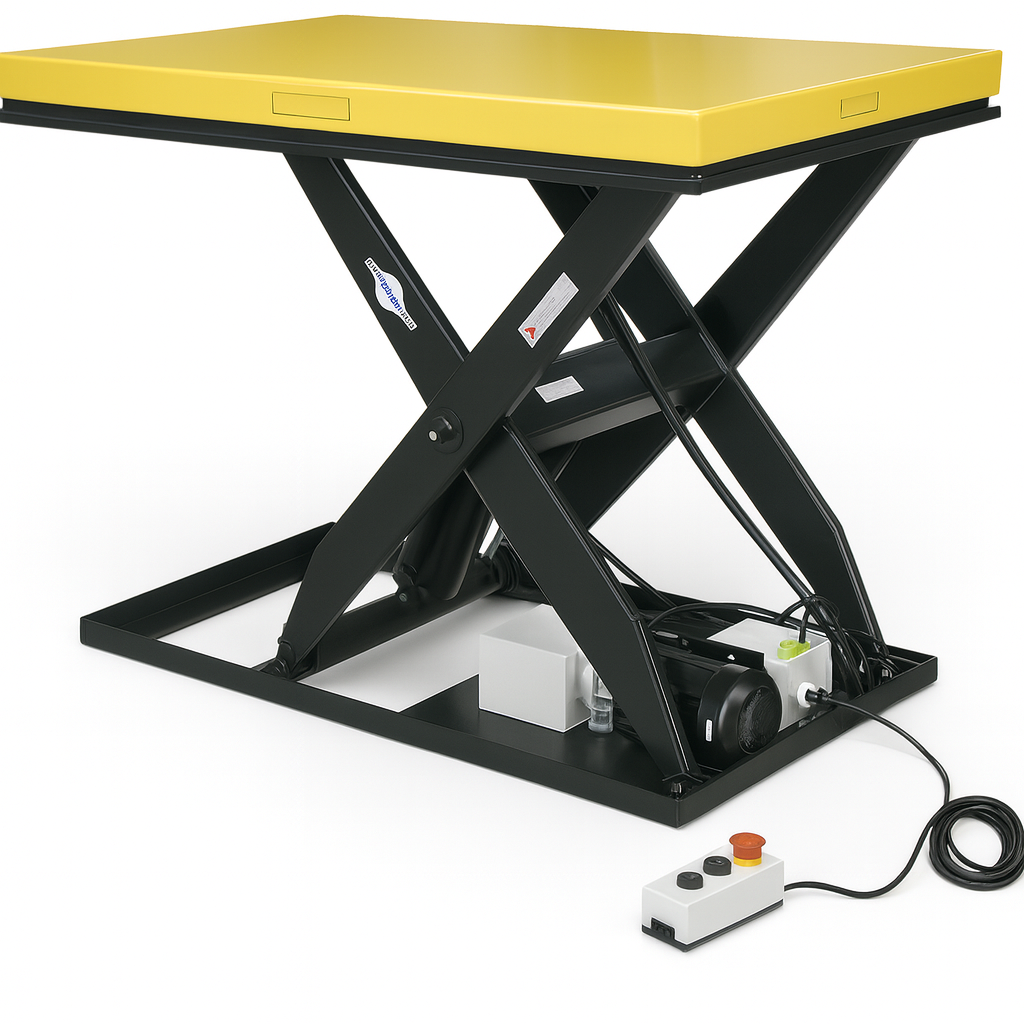

Three-phase electric platforms with a capacity of 1000 to 3000 kg
Three-phase electric platforms with a capacity of 1000 to 3000 kg
Product Description
| Code | Capacity (Kg) | Table top dimensions (mm) | H. Max (mm) | H. Min (mm) | Weight (Kg) |
|---|---|---|---|---|---|
| NPF100 E | 1000 | 1300 × 800 | 1010 | 190 | 220 |
| NPF200 E | 2000 | 1300 × 800 | 1010 | 190 | 280 |
| NPF300 E | 3000 | 1300 × 800 | 1020 | 220 | 320 |
| NPF150 E | 1500 | 1220 × 915 | 990 | 200 | 240 |
| NPF250 E | 2500 | 1420 × 815 | 1220 | 220 | 290 |
| NPF250 EL | 2500 | 1830 × 1220 | 1220 | 220 | 340 |
| NPF100 EP | 1000 | 1220 × 610 | 990 | 200 | 280 |
| NPF100 EQ | 1000 | 1220 × 1220 | 990 | 200 | 280 |
| NPF200 EQ | 2000 | 1220 × 1220 | 990 | 200 | 280 |
| NPF200 EH | 2000 | 1700 x 1000 | 1300 | 250 | 300 |
General information
The three-phase electric single-scissor lifting platforms are designed to optimize load handling with complete safety and maximum efficiency. Made with a sturdy steel structure , they are ideal for lifting and positioning materials, machinery, and industrial components weighing up to 3000 kg .
The three-phase electric transmission ensures stable and precise movement, while the single-scissor system ensures reliability and easy maintenance. Thanks to their compact design and durable construction, these platforms can be installed in workshops, warehouses, production departments, laboratories, and assembly lines .
Main advantages
-
Stable and controlled electric lifting , with integrated control unit and push-button controls.
-
Reduction of physical effort for the operator and greater ergonomics in loading/unloading operations.
-
Compact and robust structure to ensure safety and durability even in intensive work cycles.
-
Versatility of use : ideal for industrial, logistics and maintenance applications.
-
High operational efficiency : they improve productivity by reducing handling times.
-
Safety certified according to European regulations on health and safety at work.
Ideal for
-
Production departments and assembly lines
-
Warehouses and logistics centers
-
Mechanical workshops and maintenance areas
-
Laboratories and industrial testing areas
