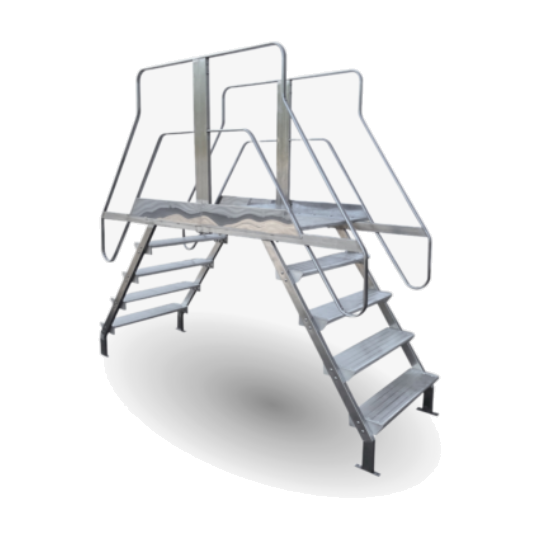

Bridge staircase with parapet - DSR
Have any questions? Request assistance
| ART. | Steps | TO | b | AND | g | h | Weight kg) |
| S1253A | 3+3 | 750 | 1750 | 1970 | 2600 | 860 | 110 |
| S1254A | 4+4 | 1000 | 2000 | 2320 | 2850 | 860 | 120 |
| S1255A | 5+5 | 1250 | 2250 | 2680 | 3100 | 860 | 130 |
| S1256A | 6+6 | 1500 | 2500 | 3030 | 3350 | 860 | 140 |
| S1257A | 7+7 | 1750 | 2750 | 3390 | 3600 | 860 | 150 |
| S1258A | 8+8 | 2000 | 3000 | 3740 | 3850 | 860 | 160 |
| S1259A | 9+9 | 2250 | 3250 | 4090 | 4100 | 860 | 170 |
| S1260A | 10+10 | 2500 | 3500 | 4440 | 4350 | 860 | 180 |
| S1261A | 11+11 | 2750 | 3750 | 4790 | 4600 | 860 | 190 |
| S1262A | 12+12 | 3000 | 4000 | 5140 | 4850 | 860 | 200 |
Measurements are expressed in millimetres.
General informations
It is built with a stainless steel frame, non-slip aluminum steps and landing equipped with a handrail.
Particularly suitable for overcoming fixed obstacles or for on-board control of production process plants.
On request, it is possible to have plates for fixing to the ground.
Steps: they are mounted on die-cast connections with pin and anti-twist dodge, inserted into the uprights.
NOT WELDED OR REPEAT
CAPACITY: 300 kg (referred to a person with tools)
SIDES: Stainless steel (60×30 mm + 60×20 mm + 30×15 mm)
LANDING: Non-slip aluminum 860×1320 mm
STEPS: Aluminum 800×200mm
TOP WIDTH: 800mm
SAFETY STANDARD: Legislative Decree No. 81/2008
