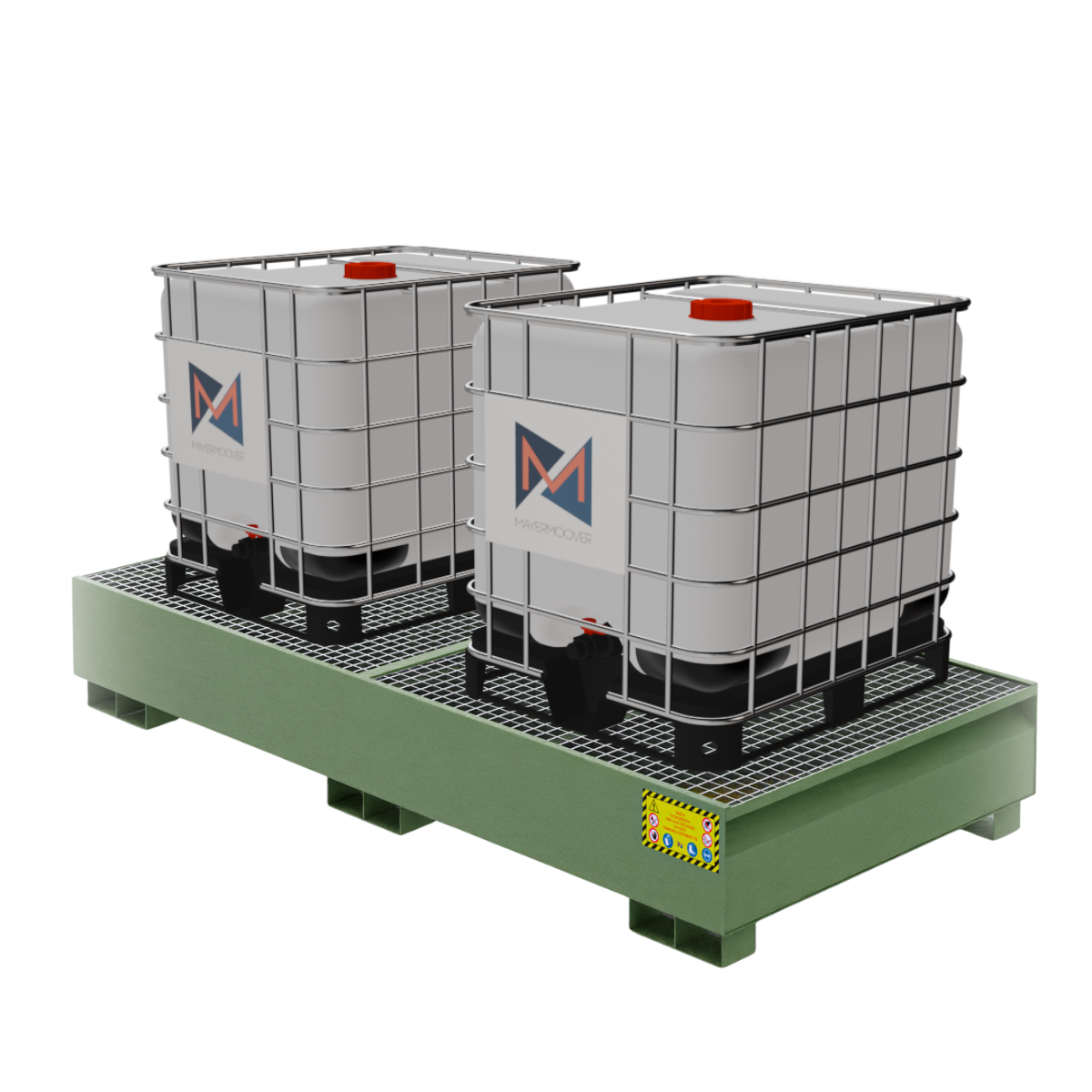

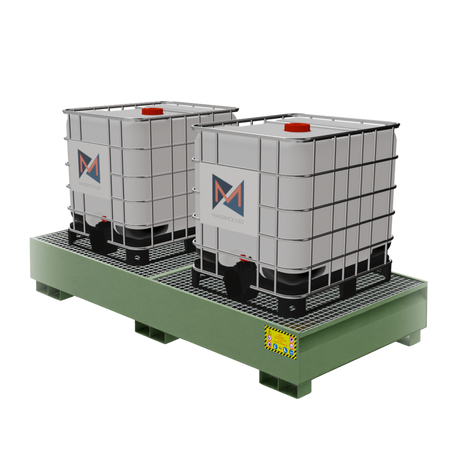

Metal collection tray for 2 x 1000 LT IBC tanks - RAL 6011

A=Length
B=Width
C=Useful height
D=Foot height
E=Total height
The measurements are expressed in millimeters

Download technical data sheet Declaration of conformity

General information

The Mayermoover collection tank, suitable for holding two 1000-litre IBC tanks , is available in the RAL 6011 (reseda green) painted version: a sober and technical finish, ideal for environments where visual order, regulatory compliance and structural robustness are essential.

Thanks to its reinforced structure and resistant epoxy paint , this tank represents a safe and long-lasting choice for the storage of hazardous, polluting or flammable substances, actively contributing to the prevention of accidental spills.

Reinforced structure and certified components

Constructed from 3mm (30/10) carbon steel , the tank is designed to resist impact, corrosion, and wear and tear. Welds are electronically tested to ensure consistent watertightness even under severe operating conditions.

The hot-dip galvanized pressed grating , supplied included, ensures maximum stability and load capacity, allowing the simultaneous positioning of two 1000-litre IBC tanks.

All the materials used are UNI EN ISO 9001 certified and fully traceable , while the entire production complies with UNI requirements.

Technical features

• Capacity: 2 x 1000 litre IBCs

• Material: S235JR or higher carbon steel

• Sheet thickness: 3 mm

• Painting: epoxy powder RAL 6011 (reseda green)

• Grating included: hot-dip galvanized and pressed

• Welding control: electronic

• Prepared for forklift forks

• Manufactured in compliance with UNI standards

• Certification and technical documentation on request

Available options and variants

• Liquid painting (single or two-component)

• Hot or cold galvanizing

• Custom finishes in other RAL colors on request (with minimum quantities)

Recommended contexts of use

• Industrial areas subject to environmental regulations

• Mechanical workshops and warehouses with color-coded container separation

• Hazardous liquid treatment or storage facilities

• Operating environments where a discreet yet technical colour finish is required

Storage and Retention Guide

What does the law say?
According to Legislative Decree 19/05/1999 n. 152 , amended by Legislative Decree 2000 n. 258 , containment basins must have a minimum capacity at least equal to the largest of the stored containers and in any case not less than 1/3 of the total volume of the hazardous substances present. In areas subject to groundwater protection, the legislation instead requires that the entire stored volume be contained within the collection tank ( 100% of the volume ).

⚠️ Attention:
This regulation does not apply to the storage of used oil , for which the law expressly requires a containment tank equal to 100% of the stored volume , regardless of other considerations.

To better clarify the practical application of these rules, we report below two examples with explanatory data:

Project Rules

Ministerial Decree 17 January 2018: NTC New Technical Standards for Construction
UNI ENV 1993 1-3 (EUROCODE 3): Design of steel structures
UNI EN 10204 August 1991: Metallic products – Types of control documents

Security and Controls

Legislative Decree 09 April 2008 – n. 81: Consolidated Law on health and safety protection and obligations related to Legislative Decree n. 81
UNI EN ISO 9712:2012: Qualification and certification of non-destructive testing personnel
UNI EN ISO 3452-1:2013: Penetrant liquid testing
UNI EN ISO 23277:2010: Non-destructive testing of welds using penetrant tests
UNI EN ISO 5817:2014: Welding, welded joints and their quality
