Metal collection tray for 2 x 1000 LT IBC tanks - RAL 7010

A=Length
B=Width
C=Useful height
D=Foot height
E=Total height
The measurements are expressed in millimeters

Download technical data sheet Declaration of conformity

General information

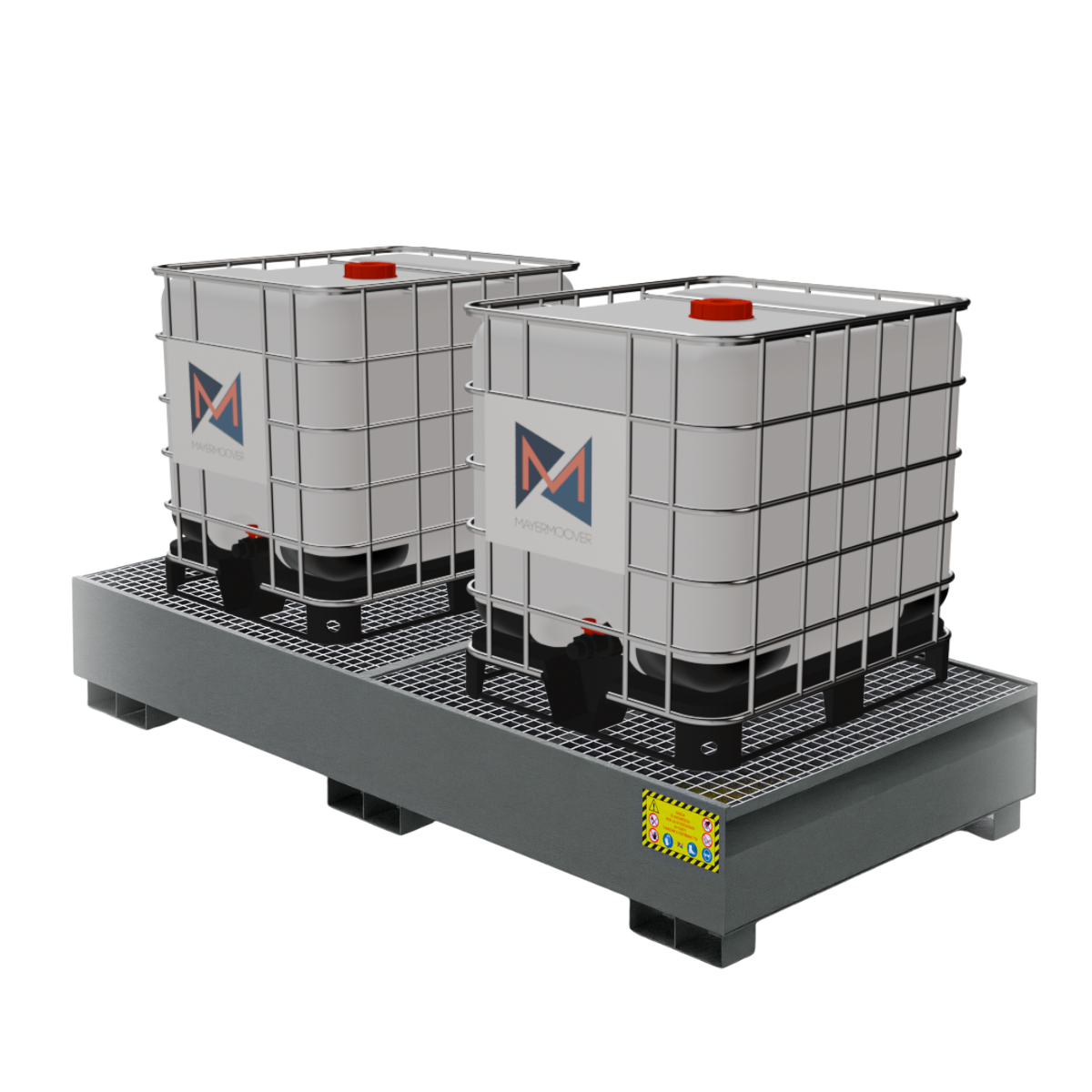

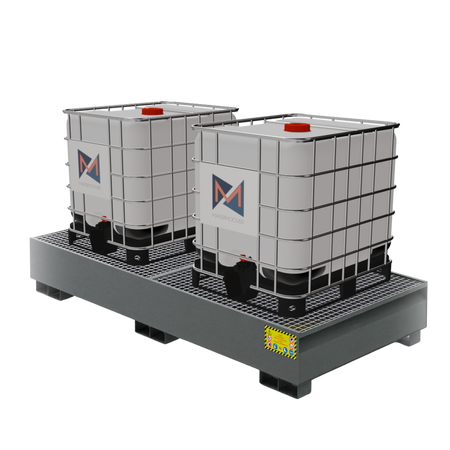

The Mayermoover collection tank, designed to safely hold two 1000-litre IBC containers , is shown here with a RAL 7010 (dark grey) finish . This elegant, neutral finish is perfect for industrial environments, workshops and technical departments where a subtle yet functional colour scheme is required.

This tank is designed to prevent spills of polluting liquids, ensuring environmental safety, structural solidity and regulatory compliance .

Durable structure and certified production

Each tank is constructed from 3 mm (30/10) thick S235JR carbon steel , a material that ensures long-lasting durability even in critical operating environments. The welds are electronically tested to ensure the watertightness of the entire structure.

The hot-dip galvanized and pressed grating , supplied included, ensures a secure support for two 1000-litre IBCs, and is designed to withstand heavy loads and corrosive substances.

All components are traceable and come from UNI EN ISO 9001 certified suppliers. Production follows UNI standards .

Technical features

• Capacity: 2 x 1000 litre IBCs

• Material: S235JR or higher carbon steel

• Thickness: 3 mm

• Painting: epoxy powder RAL 7010 (curtain grey)

• Grating included: hot-dip galvanized and pressed

• Electronically tested welds

• Can be moved using forklift forks

• Production compliant with UNI parameters

• Technical documentation and certifications available upon request

Customizations available

• Single or two-component liquid finish

• Hot or cold galvanizing

• Custom RAL colors (with minimum quantities)

Recommended applications

• Industrial and logistics plants

• Technical warehouses with environmental safety protocols

• Workshops and storage facilities for hazardous substances

• Operational areas where a sober and professional finish is required

Storage and Retention Guide

What does the law say?
According to Legislative Decree 19/05/1999 n. 152 , amended by Legislative Decree 2000 n. 258 , containment basins must have a minimum capacity at least equal to the largest of the stored containers and in any case not less than 1/3 of the total volume of the hazardous substances present. In areas subject to groundwater protection, the legislation instead requires that the entire stored volume be contained within the collection tank ( 100% of the volume ).

⚠️ Attention:
This regulation does not apply to the storage of used oil , for which the law expressly requires a containment tank equal to 100% of the stored volume , regardless of other considerations.

To better clarify the practical application of these rules, we report below two examples with explanatory data:

Project Rules

Ministerial Decree 17 January 2018: NTC New Technical Standards for Construction
UNI ENV 1993 1-3 (EUROCODE 3): Design of steel structures
UNI EN 10204 August 1991: Metallic products – Types of control documents

Security and Controls

Legislative Decree 09 April 2008 – n. 81: Consolidated Law on health and safety protection and obligations related to Legislative Decree n. 81
UNI EN ISO 9712:2012: Qualification and certification of non-destructive testing personnel
UNI EN ISO 3452-1:2013: Penetrant liquid testing
UNI EN ISO 23277:2010: Non-destructive testing of welds using penetrant tests
UNI EN ISO 5817:2014: Welding, welded joints and their quality
