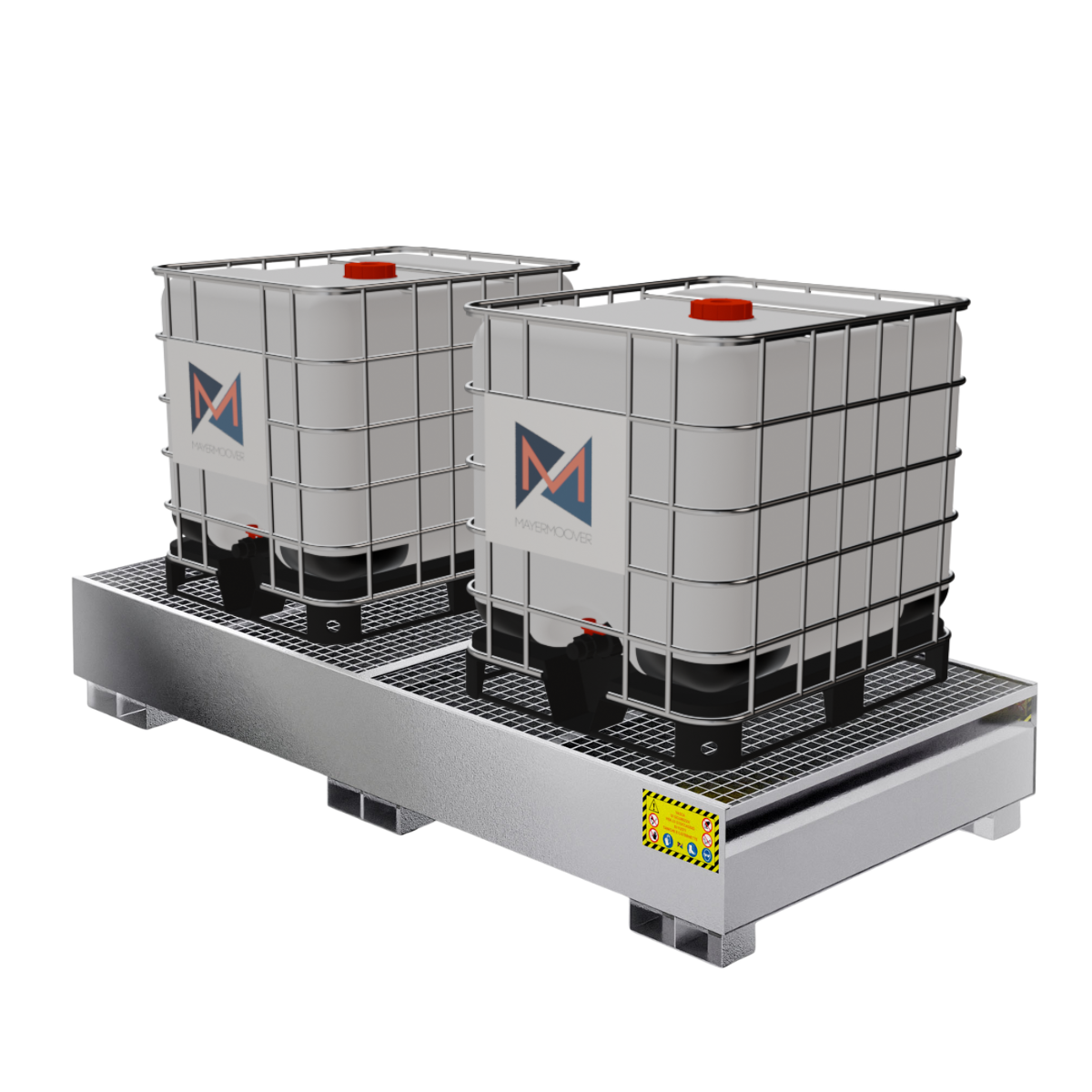

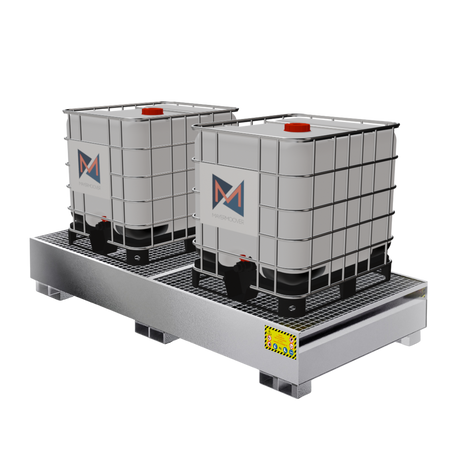

Metal collection tray for 2 x 1000 LT IBC tanks - Galvanized

A=Length
B=Width
C=Useful height
D=Foot height
E=Total height
The measurements are expressed in millimeters

Download technical data sheet Declaration of conformity

General information

The Mayermoover spill tray for two 1000-liter IBC containers , hot-dip galvanized , is designed to offer maximum protection from spills and corrosion in industrial, chemical, or logistics environments. This model guarantees long-lasting outdoor operation thanks to its full-surface galvanization.

Designed for intensive use and in critical conditions, it is the ideal solution for those seeking reliability, reduced maintenance and regulatory compliance .

Structural galvanization and guaranteed watertightness

The tank is made of S235JR carbon steel with a thickness of 3 mm (30/10) and subjected to hot-dip galvanization by total immersion, to offer uniform protection against rust, atmospheric agents and aggressive substances.

The welds are electronically checked to ensure the container is completely leak-proof. The hot-dip galvanized and pressed grating , supplied included, is sized to safely support the weight of two IBC containers even when fully loaded.

Production complies with UNI parameters and all materials used are certified according to UNI EN ISO 9001 , with guaranteed traceability.

Technical features

• Capacity: 2 x 1000 litre IBCs

• Material: S235JR or higher carbon steel

• Thickness: 3 mm

• Finish: hot-dip galvanizing on the entire structure

• Grating included: hot-dip galvanized, pressed

• Electronically tested welds

• Handling using forklift forks

• Production compliant with UNI regulations

• Certifications available upon request

Advantages of the galvanized version

• Very high resistance to corrosion and humidity

• Superior durability even in outdoor environments

• No need for painting or surface maintenance

• Ideal for environments exposed to frequent washing or aggressive substances

Recommended areas of use

• Chemical plants and waste treatment

• Open-air warehouses and logistics facilities

• Workshops and industrial departments with high IBC handling

• Contexts where permanent corrosion protection is required

Storage and Retention Guide

What does the law say?
According to Legislative Decree 19/05/1999 n. 152 , amended by Legislative Decree 2000 n. 258 , containment basins must have a minimum capacity at least equal to the largest of the stored containers and in any case not less than 1/3 of the total volume of the hazardous substances present. In areas subject to groundwater protection, the legislation instead requires that the entire stored volume be contained within the collection tank ( 100% of the volume ).

⚠️ Attention:
This regulation does not apply to the storage of used oil , for which the law expressly requires a containment tank equal to 100% of the stored volume , regardless of other considerations.

To better clarify the practical application of these rules, we report below two examples with explanatory data:

Project Rules

Ministerial Decree 17 January 2018: NTC New Technical Standards for Construction
UNI ENV 1993 1-3 (EUROCODE 3): Design of steel structures
UNI EN 10204 August 1991: Metallic products – Types of control documents

Security and Controls

Legislative Decree 09 April 2008 – n. 81: Consolidated Law on health and safety protection and obligations related to Legislative Decree n. 81
UNI EN ISO 9712:2012: Qualification and certification of non-destructive testing personnel
UNI EN ISO 3452-1:2013: Penetrant liquid testing
UNI EN ISO 23277:2010: Non-destructive testing of welds using penetrant tests
UNI EN ISO 5817:2014: Welding, welded joints and their quality
