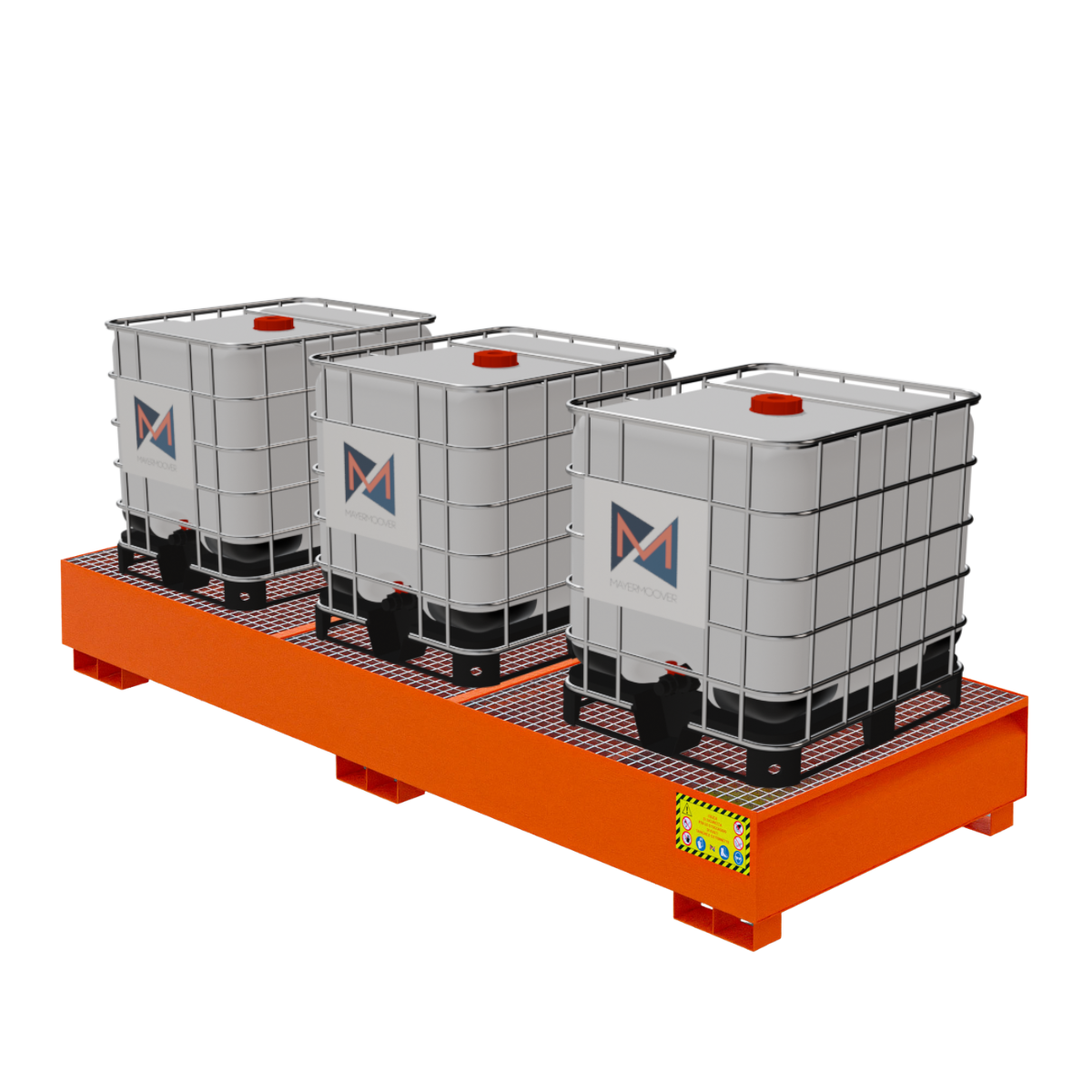

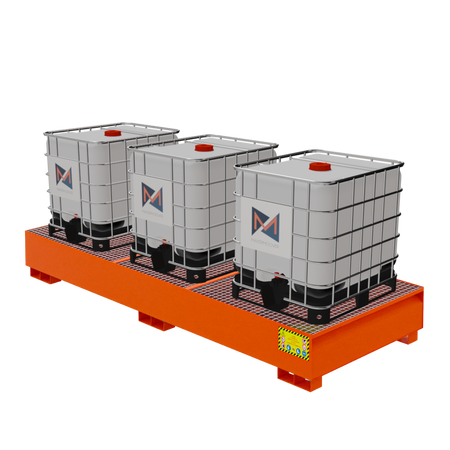

Metal collection tray for 3 x 1000 LT IBC tanks - RAL 2004

A=Length
B=Width
C=Useful height
D=Foot height
E=Total height
The measurements are expressed in millimeters

Download technical data sheet Declaration of conformity

General information

The Mayermoover spill tray for three 1000-liter IBC containers , in RAL 2004 (pure orange) , is designed to provide safe and efficient containment of large volumes of hazardous or polluting liquids. The bright orange color allows for immediate visual identification in storage areas, improving operational safety.

This model is aimed at professional contexts where high standards of environmental safety are required, such as industrial plants, agricultural companies, chemical sectors and logistics platforms.

Reinforced construction with simplified maintenance

The tank is constructed from 3 mm (30/10) thick S235JR carbon steel . The frame is reinforced to ensure the structural load-bearing capacity of the three 1000-litre tanks. The hot-dip galvanised and removable grates facilitate cleaning and periodic inspection.

Each unit undergoes electronic leak testing to ensure there are no leaks, in compliance with European safety regulations.

All materials are UNI EN ISO 9001 certified , with guaranteed traceability and production carried out according to UNI standards .

Technical features

• Capacity: 3 x 1000 litre IBC tanks

• Material: S235JR or higher carbon steel

• Thickness: 3 mm

• Finish: epoxy powder coating RAL 2004 (pure orange)

• Removable grilles: hot-dip galvanized and pressed

• Welds: electronically controlled for watertightness

• Prepared for forklift forks

• Production compliant with UNI regulations

• Material certifications available upon request

Options on request

• Hot or cold galvanizing

• Single or two-component liquid paint

• Other RAL colors available (minimum quantities required)

Recommended applications

• Chemical industries and production plants

• Logistics warehouses and storage centers

• Agricultural companies with liquid products

• Technical areas subject to environmental controls

Storage and Retention Guide

What does the law say?
According to Legislative Decree 19/05/1999 n. 152 , amended by Legislative Decree 2000 n. 258 , containment basins must have a minimum capacity at least equal to the largest of the stored containers and in any case not less than 1/3 of the total volume of the hazardous substances present. In areas subject to groundwater protection, the legislation instead requires that the entire stored volume be contained within the collection tank ( 100% of the volume ).

⚠️ Attention:
This regulation does not apply to the storage of used oil , for which the law expressly requires a containment tank equal to 100% of the stored volume , regardless of other considerations.

To better clarify the practical application of these rules, we report below two examples with explanatory data:

Project Rules

Ministerial Decree 17 January 2018: NTC New Technical Standards for Construction
UNI ENV 1993 1-3 (EUROCODE 3): Design of steel structures
UNI EN 10204 August 1991: Metallic products – Types of control documents

Security and Controls

Legislative Decree 09 April 2008 – n. 81: Consolidated Law on health and safety protection and obligations related to Legislative Decree n. 81
UNI EN ISO 9712:2012: Qualification and certification of non-destructive testing personnel
UNI EN ISO 3452-1:2013: Penetrant liquid testing
UNI EN ISO 23277:2010: Non-destructive testing of welds using penetrant tests
UNI EN ISO 5817:2014: Welding, welded joints and their quality
