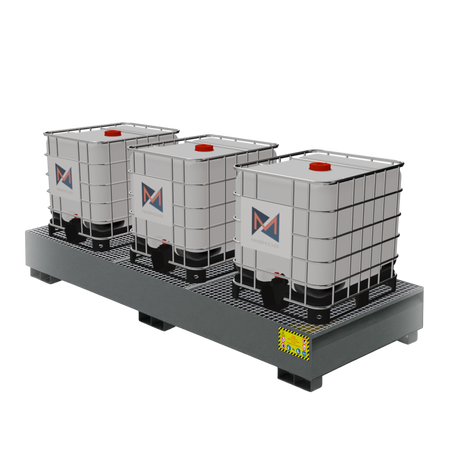

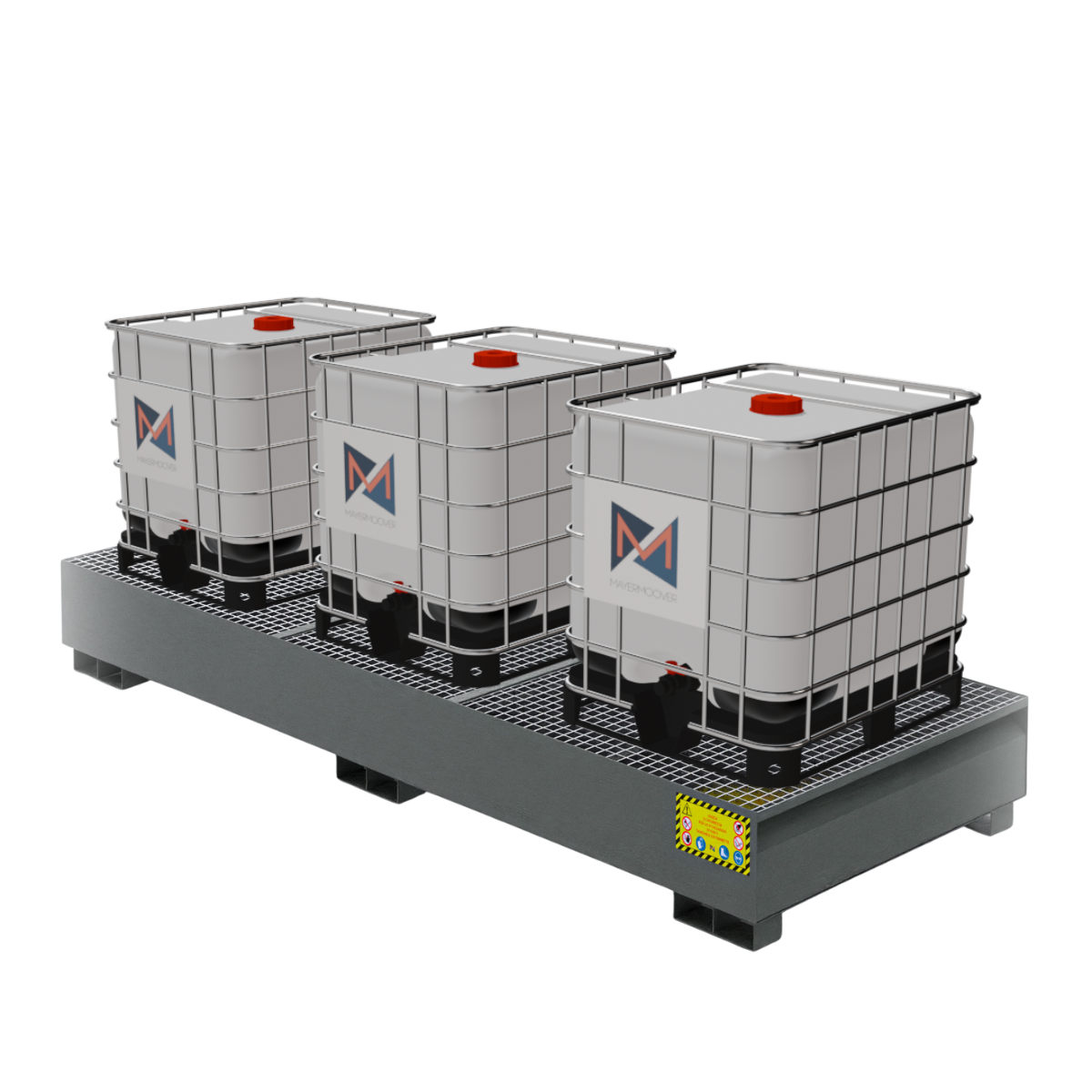

Metal collection tray for 3 x 1000 LT IBC tanks - RAL 7010

A=Length
B=Width
C=Useful height
D=Foot height
E=Total height
The measurements are expressed in millimeters

Download technical data sheet Declaration of conformity

General information

The Mayermoover collection tank for 3 1000 litre IBC containers , painted RAL 7010 (curtain grey) , is designed for industrial applications where visual order, environmental safety and structural robustness are essential requirements.

The neutral gray color is ideal for technical warehouses, industrial plants and environments where a sober and professional aesthetic is desired, maintaining high visibility and organization.

Technical solution for safe storage

Constructed from 3mm (30/10) thick S235JR carbon steel , this tank is designed to support three 1000-litre IBC containers even when fully loaded, without warping or sagging. The hot-dip galvanised grids are removable , making cleaning and periodic maintenance easier.

The welds are electronically tested to ensure watertightness and the absence of weak points. Production is carried out in compliance with UNI parameters , using materials certified according to UNI EN ISO 9001 .

Technical features

• Capacity: 3 x 1000 litre IBC tanks

• Frame: S235JR carbon steel

• Thickness: 3 mm

• Finish: epoxy powder coating RAL 7010 (curtain grey)

• Grills: hot-dip galvanized and completely removable

• Welding: electronic control for watertightness

• Lifting: provision for forklift forks

• Compliant with UNI regulations

• Material certification available

Options available upon request

• Hot or cold galvanizing

• Alternative finishes: single/two-component liquid paint

• Other RAL colors on request (based on quantities)

Fields of use

• Industrial plants and production facilities

• Chemical companies and hazardous materials storage facilities

• Technical warehouses and areas subject to environmental control

• Contexts where a grey technical aesthetic is favoured

Storage and Retention Guide

What does the law say?
According to Legislative Decree 19/05/1999 n. 152 , amended by Legislative Decree 2000 n. 258 , containment basins must have a minimum capacity at least equal to the largest of the stored containers and in any case not less than 1/3 of the total volume of the hazardous substances present. In areas subject to groundwater protection, the legislation instead requires that the entire stored volume be contained within the collection tank ( 100% of the volume ).

⚠️ Attention:
This regulation does not apply to the storage of used oil , for which the law expressly requires a containment tank equal to 100% of the stored volume , regardless of other considerations.

To better clarify the practical application of these rules, we report below two examples with explanatory data:

Project Rules

Ministerial Decree 17 January 2018: NTC New Technical Standards for Construction
UNI ENV 1993 1-3 (EUROCODE 3): Design of steel structures
UNI EN 10204 August 1991: Metallic products – Types of control documents

Security and Controls

Legislative Decree 09 April 2008 – n. 81: Consolidated Law on health and safety protection and obligations related to Legislative Decree n. 81
UNI EN ISO 9712:2012: Qualification and certification of non-destructive testing personnel
UNI EN ISO 3452-1:2013: Penetrant liquid testing
UNI EN ISO 23277:2010: Non-destructive testing of welds using penetrant tests
UNI EN ISO 5817:2014: Welding, welded joints and their quality
