Metal collection tray for 3 x 1000 LT IBC tanks - Galvanized

A=Length
B=Width
C=Useful height
D=Foot height
E=Total height
The measurements are expressed in millimeters

Download technical data sheet Declaration of conformity

General information

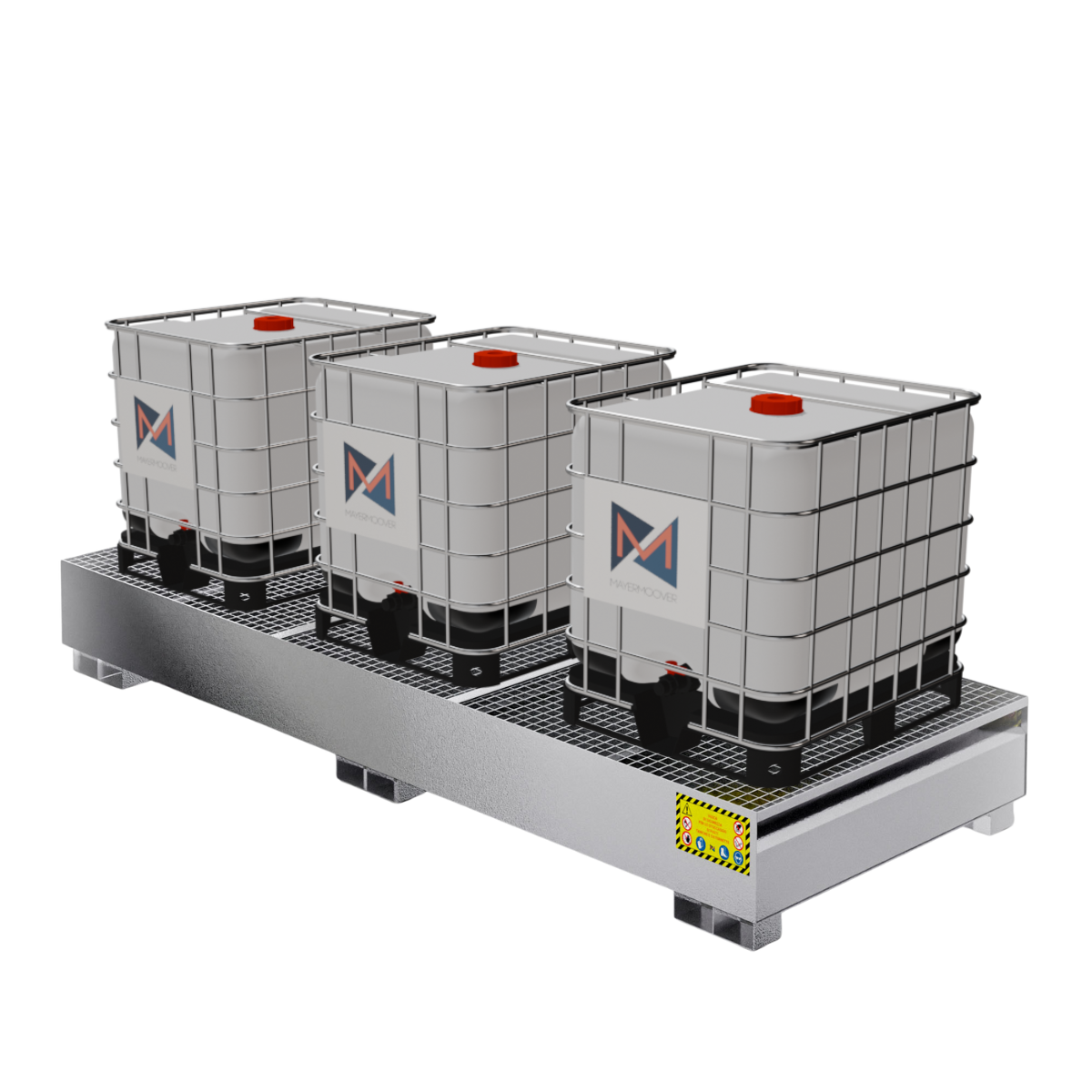

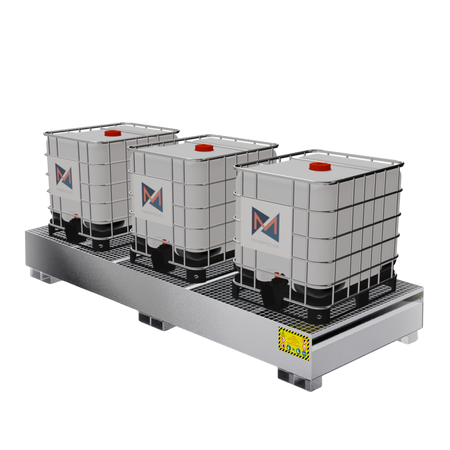

The Mayermoover collection tank for 3 1000-litre IBC tanks , in hot-dip galvanised version, is designed to guarantee maximum resistance to corrosion , even in external or aggressive environments, where humidity and chemical agents can compromise the life of traditional materials.

Made from 3mm carbon steel and protected with integral hot-dip galvanisation, it offers a robust solution, compliant with European regulations, for the containment and safe storage of hazardous and polluting liquids.

Long-term reliability and durability

The tank is equipped with removable, hot-dip galvanized grids for easy maintenance and maximum hygiene. The welds are electronically checked to ensure absolute watertightness. The reinforced load-bearing structure ensures stability even when fully loaded , supporting up to three 1000-liter tanks.

All materials used are UNI EN ISO 9001 certified and meet UNI standards for size and performance.

Technical features

• Capacity: 3 x 1000 litre IBC tanks

• Material: S235JR or higher carbon steel

• Thickness: 3 mm (30/10)

• Finish: hot-dip galvanizing

• Grating: hot-dip galvanized, removable, pressed

• Welding: electronic control for watertightness

• Handling: forklift ready

• Production compliant with UNI regulations

• Material certifications available upon request

Advantages of the galvanized version

• Maximum protection against corrosion and atmospheric agents

• Long life even in uncovered industrial environments

• No need for repainting

• Ideal for environments with high frequency of washing or chemical exposure

Recommended applications

• Chemical, petrochemical, logistics sectors

• External warehouses or coastal areas

• Industrial systems with high-pressure washing

• Companies subject to strict environmental controls

Storage and Retention Guide

What does the law say?
According to Legislative Decree 19/05/1999 n. 152 , amended by Legislative Decree 2000 n. 258 , containment basins must have a minimum capacity at least equal to the largest of the stored containers and in any case not less than 1/3 of the total volume of the hazardous substances present. In areas subject to groundwater protection, the legislation instead requires that the entire stored volume be contained within the collection tank ( 100% of the volume ).

⚠️ Attention:
This regulation does not apply to the storage of used oil , for which the law expressly requires a containment tank equal to 100% of the stored volume , regardless of other considerations.

To better clarify the practical application of these rules, we report below two examples with explanatory data:

Project Rules

Ministerial Decree 17 January 2018: NTC New Technical Standards for Construction
UNI ENV 1993 1-3 (EUROCODE 3): Design of steel structures
UNI EN 10204 August 1991: Metallic products – Types of control documents

Security and Controls

Legislative Decree 09 April 2008 – n. 81: Consolidated Law on health and safety protection and obligations related to Legislative Decree n. 81
UNI EN ISO 9712:2012: Qualification and certification of non-destructive testing personnel
UNI EN ISO 3452-1:2013: Penetrant liquid testing
UNI EN ISO 23277:2010: Non-destructive testing of welds using penetrant tests
UNI EN ISO 5817:2014: Welding, welded joints and their quality
