Collection tank for 1 200 LT drum - RAL 6011

A=Length
B=Width
C=Useful height
D=Foot height
E=Total height
The measurements are expressed in millimeters

Download technical data sheet Declaration of conformity

General information

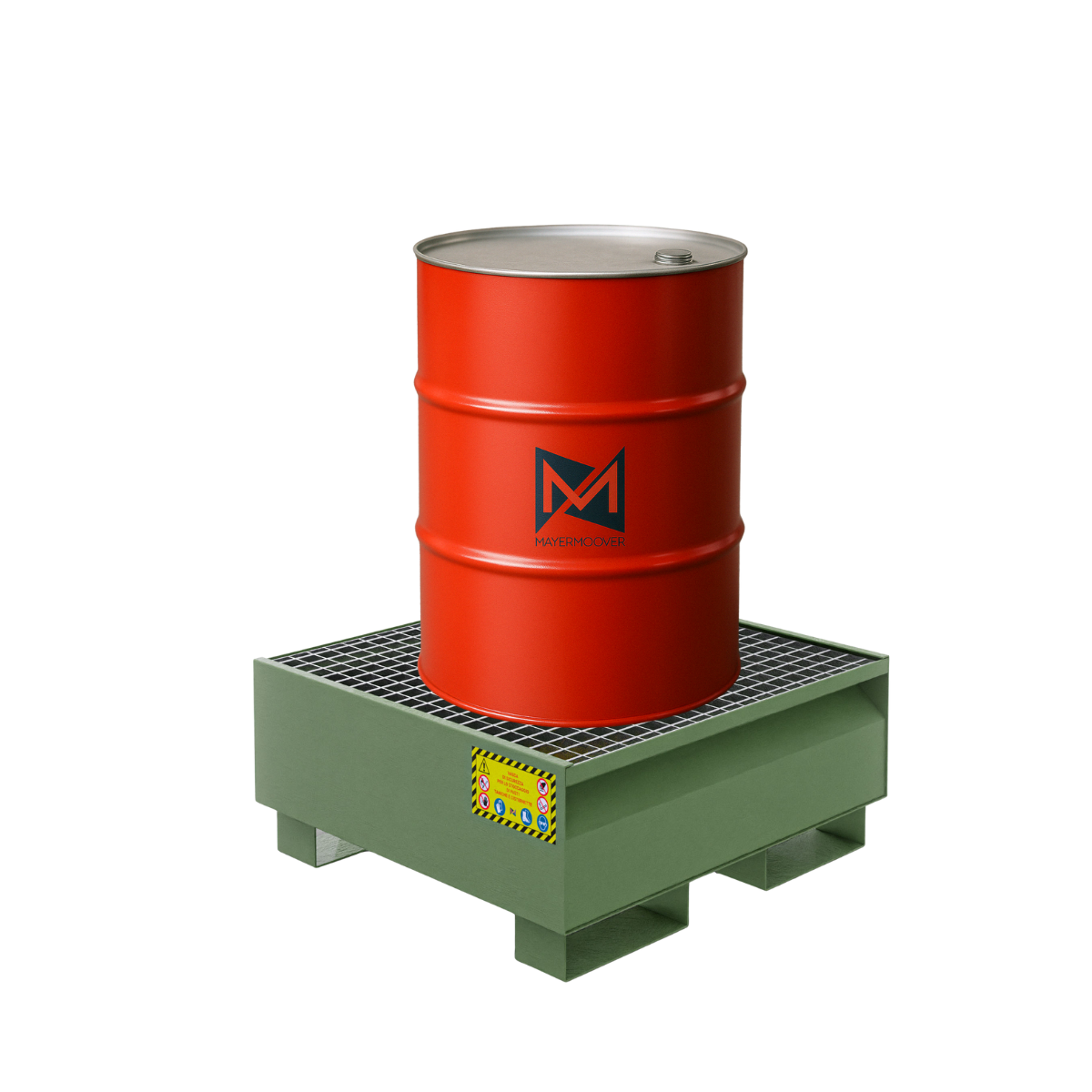

The Mayermoover collection tray painted RAL 6011 (reseda green) is designed to ensure the safe handling of hazardous liquids, offering a combination of structural strength , chemical resistance , and functional color visibility . The reseda green color is ideal for technical environments, workshops, or settings where it is important to clearly distinguish containers based on their contents or intended use.

Designed to safely hold a 200-litre drum, the tank meets all European regulations on workplace safety and environmental protection .

Certified safety and durability over time

The structure is made of 3 mm thick carbon steel , welded using an electronically controlled process to ensure a perfect seal against accidental spills. Each tank is equipped with hot-dip galvanized grating , constructed using pressed technology to guarantee load-bearing capacity and long-term resistance even in the presence of aggressive chemicals.

The raw materials come exclusively from suppliers certified according to UNI EN ISO 9001 , and each unit is traceable and documented.

Technical features

• Capacity: 1 200 litre drum

• Frame: S235JR or higher carbon steel

• Thickness: 3 mm (30/10)

• Painting: epoxy powder color RAL 6011

• Hot-dip galvanized grating included (pressed)

• Welds electronically tested for watertightness

• Forklift forklift entry points

• Sizing compliant with UNI regulations

• Material certification available upon request

Customizable finishes and options

Upon request, the tub can be made with:

• Hot-dip galvanizing or cold-dip galvanizing

• Single or two-component liquid finish

• Different RAL colors, with quantities to be agreed upon

Recommended application areas

• Waste and pollutant treatment plants

• Industrial sectors with storage facilities differentiated by color

• Workshops with differentiated management of drums

• Technical areas and environments subject to strict safety protocols

• Warehouses with color-coded separation of containers

Storage and Retention Guide

What does the law say?
According to Legislative Decree 19/05/1999 n. 152 , amended by Legislative Decree 2000 n. 258 , containment basins must have a minimum capacity at least equal to the largest of the stored containers and in any case not less than 1/3 of the total volume of the hazardous substances present. In areas subject to groundwater protection, the legislation instead requires that the entire stored volume be contained within the collection tank ( 100% of the volume ).

⚠️ Attention:
This regulation does not apply to the storage of used oil , for which the law expressly requires a containment tank equal to 100% of the stored volume , regardless of other considerations.

To better clarify the practical application of these rules, we report below two examples with explanatory data:

Project Rules

Ministerial Decree 17 January 2018: NTC New Technical Standards for Construction
UNI ENV 1993 1-3 (EUROCODE 3): Design of steel structures
UNI EN 10204 August 1991: Metallic products – Types of control documents

Security and Controls

Legislative Decree 09 April 2008 – n. 81: Consolidated Law on health and safety protection and obligations related to Legislative Decree n. 81
UNI EN ISO 9712:2012: Qualification and certification of non-destructive testing personnel
UNI EN ISO 3452-1:2013: Penetrant liquid testing
UNI EN ISO 23277:2010: Non-destructive testing of welds using penetrant tests
UNI EN ISO 5817:2014: Welding, welded joints and their quality
