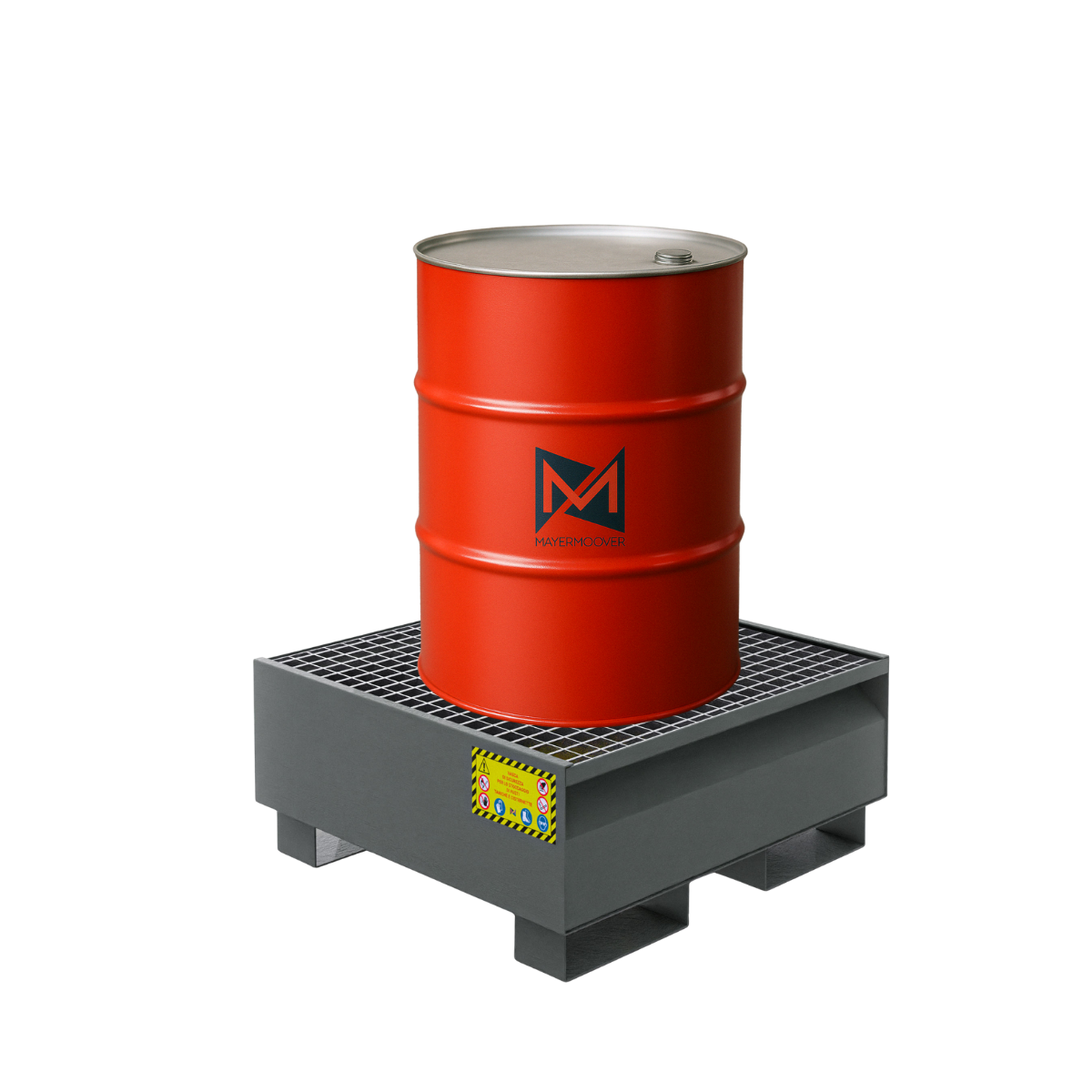

Collection tank for 1 200 LT drum - RAL 7010

A=Length
B=Width
C=Useful height
D=Foot height
E=Total height
The measurements are expressed in millimeters

Download technical data sheet Declaration of conformity

General information

The Mayermoover collection container, painted RAL 7010 (tent grey) , is a reliable solution for storing a 200-liter drum containing potentially polluting or hazardous liquids. Ideal for professional environments where a neutral and uncluttered aesthetic is important, this variant integrates perfectly into technical, logistical, and industrial settings that require high functional visibility without bright colors.

Each tub is designed to ensure maximum safety , robustness and compliance with European directives on health, the environment and prevention.

Certified construction and high quality materials

The structure is made of 3 mm thick (30/10) carbon steel and subjected to electronic weld inspections to ensure complete leak-proofing. The included hot-dip galvanized grating is produced using a pressing process to ensure stability and long life even in environments exposed to corrosive substances.

The materials used are traceable, certified and purchased from suppliers compliant with the UNI EN ISO 9001 standard, in line with UNI technical standards.

Technical features

• Capacity: 1 200 litre drum

• Material: S235JR or higher carbon steel

• Sheet thickness: 3 mm

• Painting: epoxy powder RAL 7010

• Hot-dip galvanized grating included

• Electronically tested welds

• Forklift access for handling with a forklift

• Made according to UNI parameters

• Material certification available upon request

Available finishes and options

The tub can also be supplied with the following variants upon request:

• Hot-dip galvanizing or cold-dip galvanizing

• Single or two-component liquid painting

• Custom colors with other RAL shades, based on quantities

Areas of use

• Industrial and technical warehouses

• Workshops and warehouses with drum management

• Collection and containment areas for polluting liquids

• Environments where a neutral but recognisable finish is required

• Industries adopting discrete color coding for containers

Storage and Retention Guide

What does the law say?
According to Legislative Decree 19/05/1999 n. 152 , amended by Legislative Decree 2000 n. 258 , containment basins must have a minimum capacity at least equal to the largest of the stored containers and in any case not less than 1/3 of the total volume of the hazardous substances present. In areas subject to groundwater protection, the legislation instead requires that the entire stored volume be contained within the collection tank ( 100% of the volume ).

⚠️ Attention:
This regulation does not apply to the storage of used oil , for which the law expressly requires a containment tank equal to 100% of the stored volume , regardless of other considerations.

To better clarify the practical application of these rules, we report below two examples with explanatory data:

Project Rules

Ministerial Decree 17 January 2018: NTC New Technical Standards for Construction
UNI ENV 1993 1-3 (EUROCODE 3): Design of steel structures
UNI EN 10204 August 1991: Metallic products – Types of control documents

Security and Controls

Legislative Decree 09 April 2008 – n. 81: Consolidated Law on health and safety protection and obligations related to Legislative Decree n. 81
UNI EN ISO 9712:2012: Qualification and certification of non-destructive testing personnel
UNI EN ISO 3452-1:2013: Penetrant liquid testing
UNI EN ISO 23277:2010: Non-destructive testing of welds using penetrant tests
UNI EN ISO 5817:2014: Welding, welded joints and their quality
