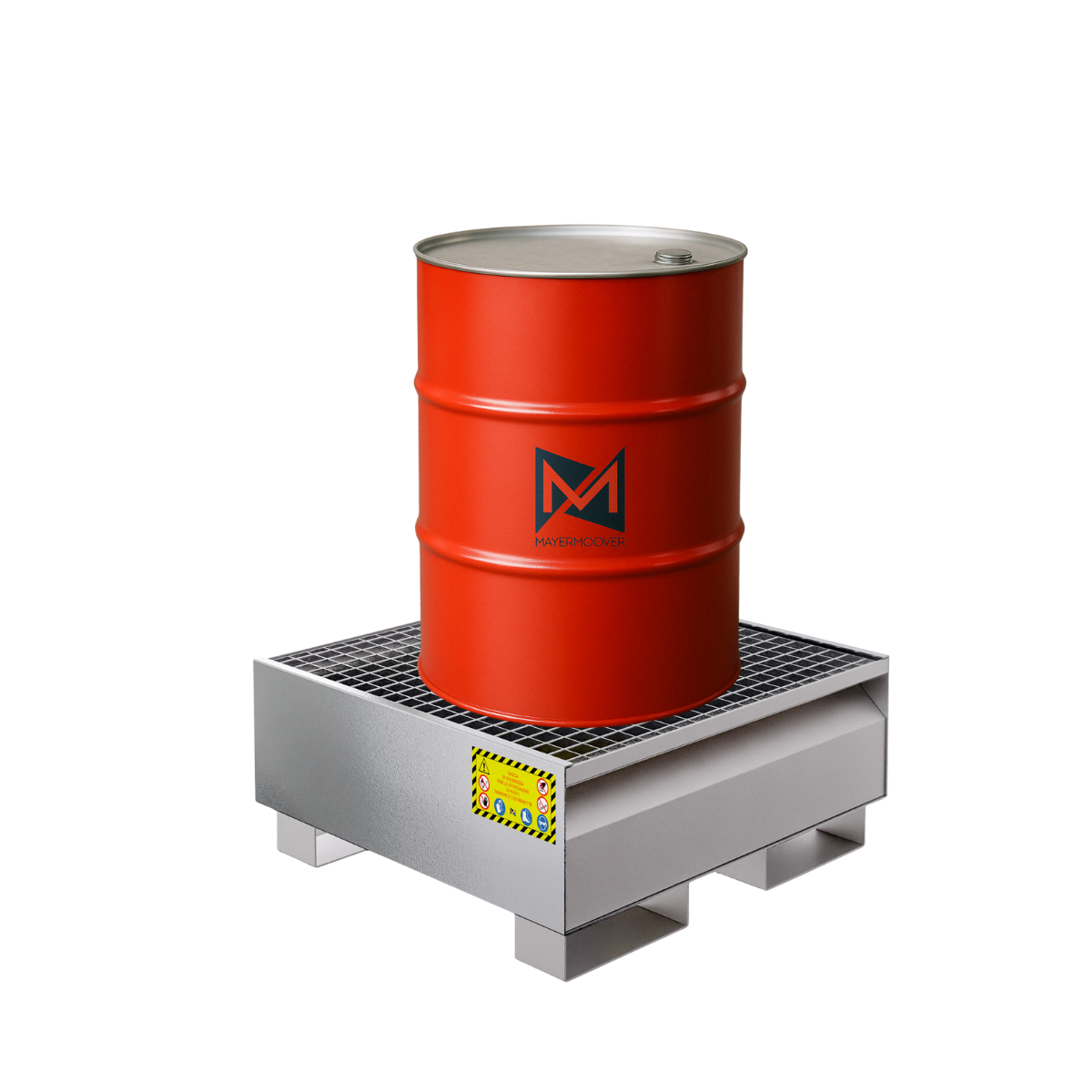

Collection tank for 1 200 LT drum - Galvanized

A=Length
B=Width
C=Useful height
D=Foot height
E=Total height
The measurements are expressed in millimeters

Download technical data sheet Declaration of conformity

General information

The Mayermoover hot-dip galvanized drum sump tray for one 200-liter drum is the ideal choice for those seeking long-lasting protection and resistance to weather and chemicals. Made entirely of carbon steel and fully hot-dip galvanized, this tray is designed for industrial and outdoor applications, or wherever maximum corrosion resistance is required.

Each unit is built to ensure safety and compliance with European regulations on environmental prevention and workplace safety.

Full zinc plating and long life

Hot-dip galvanizing provides the entire structure with uniform protection , effective over time even in extreme conditions. The tank is made of 3 mm (30/10) thick steel and equipped with a pressed hot-dip galvanized grating , designed to withstand heavy loads and ensure maximum efficiency in the disposal of drums containing oils, solvents, or hazardous substances.

All materials used are traceable and compliant with UNI EN ISO 9001 standards, with certifications available upon request.

Technical features

• Capacity: 1 200 litre drum

• Material: S235JR or higher carbon steel

• Thickness: 3 mm

• Finish: hot-dip galvanizing on the entire structure

• Hot-dip galvanized grating included (pressed)

• Electronically tested welds to ensure tightness

• Forklift access for handling with forklifts

• Product compliant with UNI parameters

• Certifications available upon request

Advantages of the galvanized version

• Longer lasting than painted versions

• Effective protection against rust, oxidation and chemical agents

• Suitable for outdoor environments or areas subject to frequent washing

• Minimal maintenance over time

Areas of use

• Petrochemical and waste treatment sectors

• Mechanical workshops and open-air warehouses

• Companies subject to environmental controls

• Contexts where permanent structural protection is required

Storage and Retention Guide

What does the law say?
According to Legislative Decree 19/05/1999 n. 152 , amended by Legislative Decree 2000 n. 258 , containment basins must have a minimum capacity at least equal to the largest of the stored containers and in any case not less than 1/3 of the total volume of the hazardous substances present. In areas subject to groundwater protection, the legislation instead requires that the entire stored volume be contained within the collection tank ( 100% of the volume ).

⚠️ Attention:
This regulation does not apply to the storage of used oil , for which the law expressly requires a containment tank equal to 100% of the stored volume , regardless of other considerations.

To better clarify the practical application of these rules, we report below two examples with explanatory data:

Project Rules

Ministerial Decree 17 January 2018: NTC New Technical Standards for Construction
UNI ENV 1993 1-3 (EUROCODE 3): Design of steel structures
UNI EN 10204 August 1991: Metallic products – Types of control documents

Security and Controls

Legislative Decree 09 April 2008 – n. 81: Consolidated Law on health and safety protection and obligations related to Legislative Decree n. 81
UNI EN ISO 9712:2012: Qualification and certification of non-destructive testing personnel
UNI EN ISO 3452-1:2013: Penetrant liquid testing
UNI EN ISO 23277:2010: Non-destructive testing of welds using penetrant tests
UNI EN ISO 5817:2014: Welding, welded joints and their quality
