Collection tank for 2 x 200 LT drums - RAL 6011

A=Length
B=Width
C=Useful height
D=Foot height
E=Total height
The measurements are expressed in millimeters

Download technical data sheet Declaration of conformity

General information

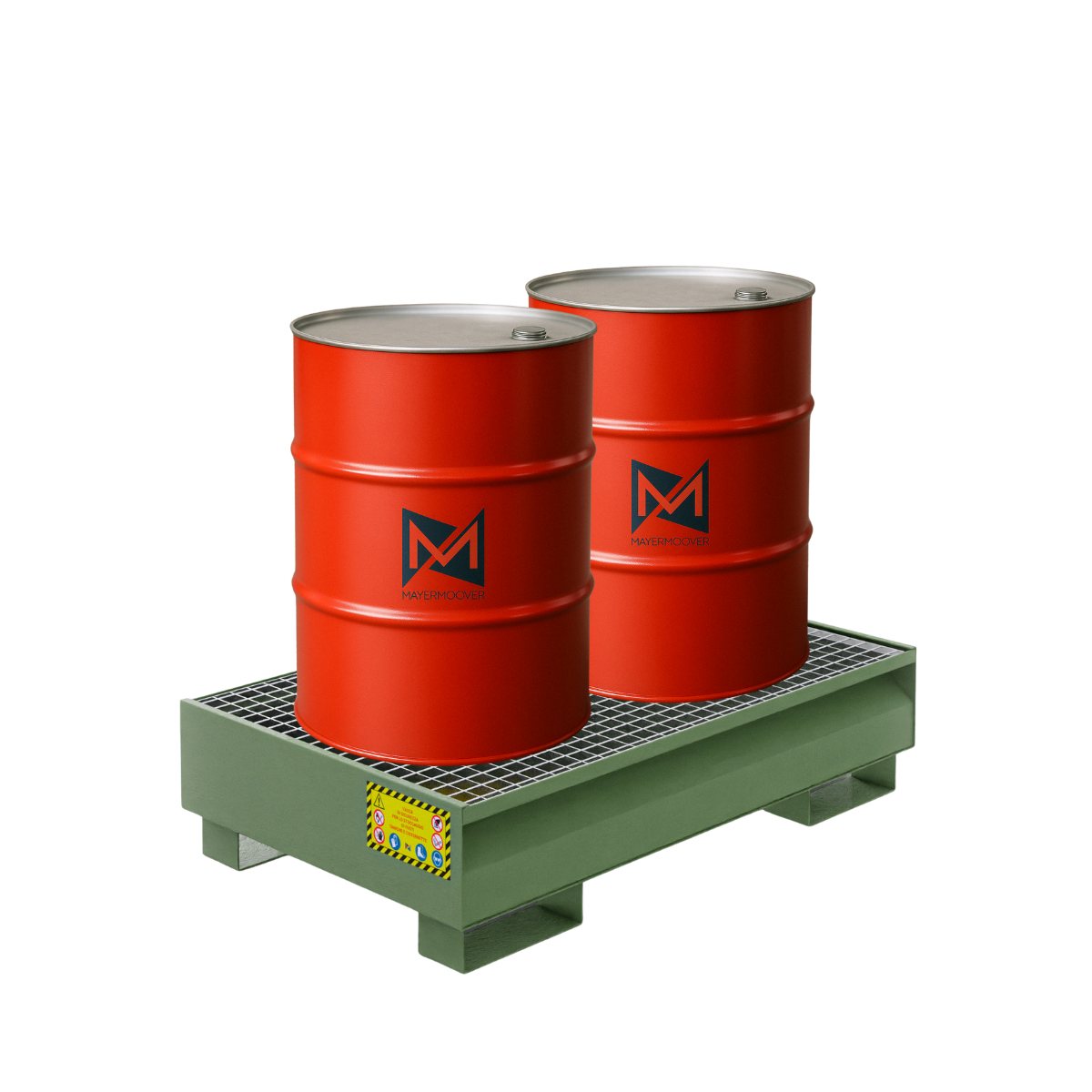

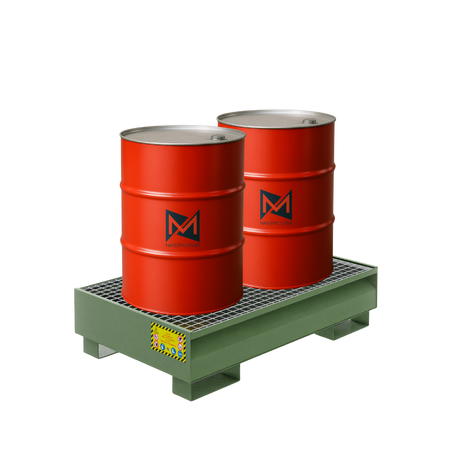

This Mayermoover metal collection tank , designed to accommodate two 200-litre drums, is made with a carbon steel structure and RAL 6011 (reseda green) paint finish , ideal for environments where a discreet but effective colour distinction between storage locations is required.

The solution is designed to ensure maximum safety against accidental spills , contributing to environmental protection and compliance with current European regulations on workplace safety.

Reinforced structure and selected materials

Each tank is constructed from 3mm (30/10) thick S235JR quality carbon steel with electronically tested welds to ensure absolute watertightness. The included, pressed hot-dip galvanized grating is designed to withstand high loads and potentially corrosive environments.

Production is carried out according to UNI parameters , using raw materials certified by suppliers compliant with the UNI EN ISO 9001 standard. Material traceability is guaranteed and can be documented upon request.

Technical features

• Capacity: 2 x 200 litre drums

• Frame: S235JR or higher carbon steel

• Thickness: 3 mm

• Painting: epoxy powder RAL 6011 (reseda green)

• Grating included: hot-dip galvanized and pressed

• Electronically controlled welding

• Handling by forklift forks

• Product compliant with UNI regulations

• Certifications available upon request

Other finishes available

• Single or two-component liquid painting

• Hot or cold galvanizing

• Custom RAL colors on request (with minimum quantities)

Recommended use

• Workshops and maintenance departments

• Technical areas and factories with differentiated management of drums

• Plants subject to strict environmental protocols

• Industrial environments that require visual order and chromatic distinction

Storage and Retention Guide

What does the law say?
According to Legislative Decree 19/05/1999 n. 152 , amended by Legislative Decree 2000 n. 258 , containment basins must have a minimum capacity at least equal to the largest of the stored containers and in any case not less than 1/3 of the total volume of the hazardous substances present. In areas subject to groundwater protection, the legislation instead requires that the entire stored volume be contained within the collection tank ( 100% of the volume ).

⚠️ Attention:
This regulation does not apply to the storage of used oil , for which the law expressly requires a containment tank equal to 100% of the stored volume , regardless of other considerations.

To better clarify the practical application of these rules, we report below two examples with explanatory data:

Project Rules

Ministerial Decree 17 January 2018: NTC New Technical Standards for Construction
UNI ENV 1993 1-3 (EUROCODE 3): Design of steel structures
UNI EN 10204 August 1991: Metallic products – Types of control documents

Security and Controls

Legislative Decree 09 April 2008 – n. 81: Consolidated Law on health and safety protection and obligations related to Legislative Decree n. 81
UNI EN ISO 9712:2012: Qualification and certification of non-destructive testing personnel
UNI EN ISO 3452-1:2013: Penetrant liquid testing
UNI EN ISO 23277:2010: Non-destructive testing of welds using penetrant tests
UNI EN ISO 5817:2014: Welding, welded joints and their quality
