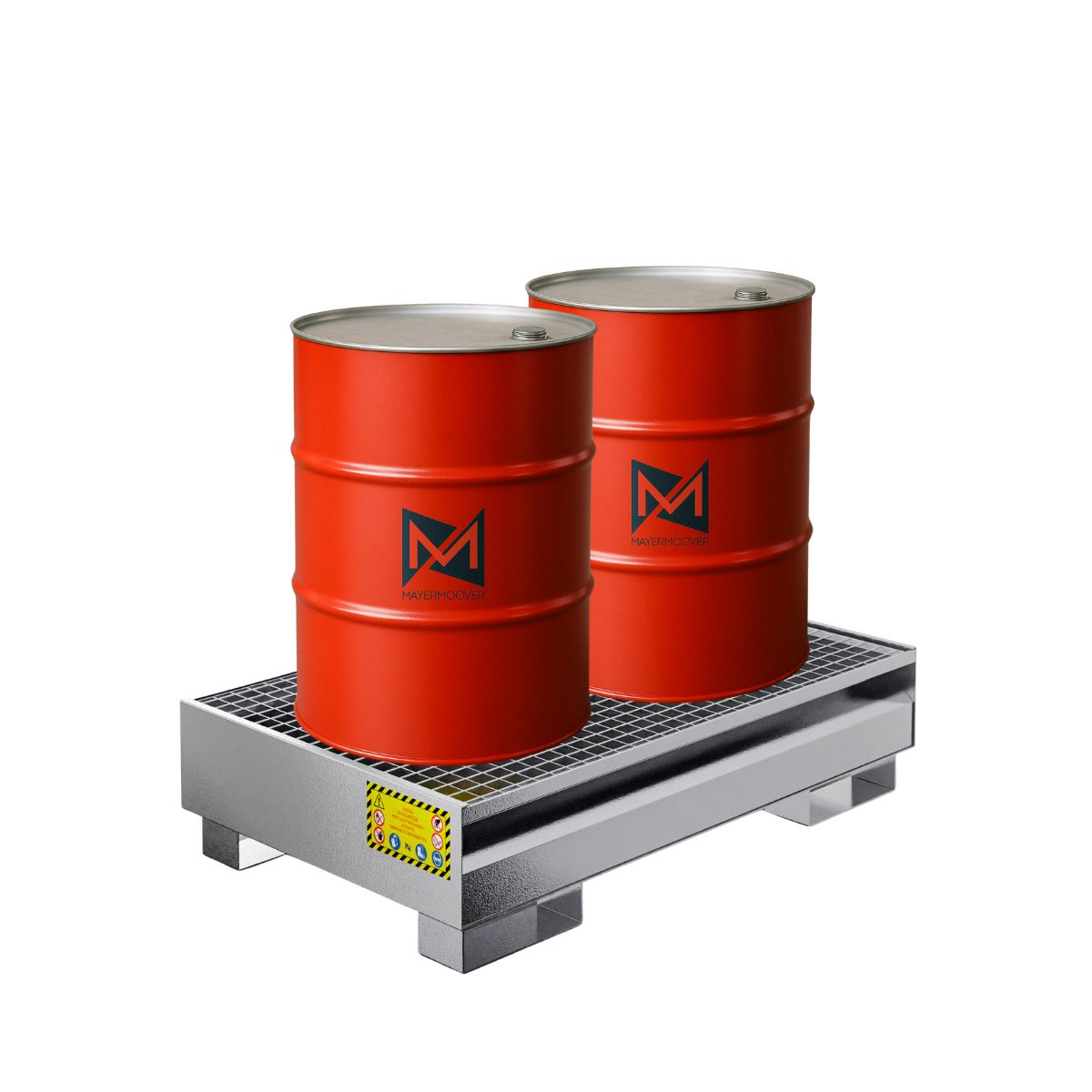

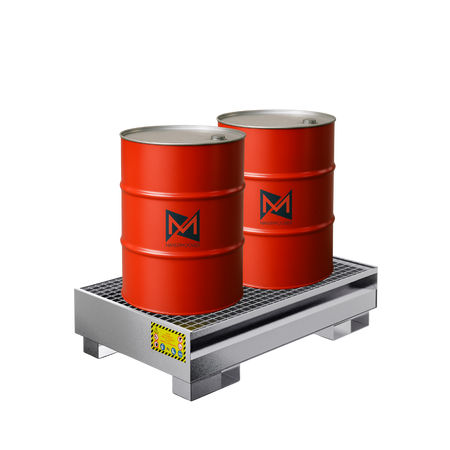

Collection tank for 2 x 200 liter drums - Galvanized

A=Length
B=Width
C=Useful height
D=Foot height
E=Total height
The measurements are expressed in millimeters

Download technical data sheet Declaration of conformity

General information

Designed to hold two 200-litre drums , the Mayermoover hot-dip galvanised collection tank is a high-performance solution for the containment of polluting or hazardous liquids in environments subject to particularly harsh conditions.

Thanks to the integral galvanization treatment, this tank guarantees complete protection against corrosion and a long life even in outdoor spaces or humid environments, where standard painting may not offer a sufficient level of protection.

Complete galvanization and superior resistance

The structure, made of 3 mm (30/10) thick carbon steel , is completely immersed in a bath of molten zinc, according to hot-dip galvanizing specifications. This process ensures a uniform coating, suitable for resisting rust, atmospheric agents and chemicals .

The included hot-dip galvanized and pressed grating is designed to safely support the weight of two 200-litre drums, while offering easy drainage and maximum stability.

The tub is built according to UNI parameters and all materials are certified and traceable according to the UNI EN ISO 9001 standard.

Technical features

• Capacity: 2 x 200 litre drums

• Material: S235JR or higher carbon steel

• Structure thickness: 3 mm

• Finish: hot-dip galvanized on the entire surface

• Grating included: hot-dip galvanized and pressed

• Electronically tested welds

• Compatibility with handling forks

• Product compliant with UNI regulations

• Full traceability and documentation available upon request

Advantages of the galvanized version

• Ideal for outdoor environments or those subject to frequent washing

• High mechanical and chemical resistance

• No need for maintenance or repainting

• Long-lasting even in the presence of aggressive substances

Recommended areas of use

• Industrial areas and chemical plants

• Outdoor storage and warehouses exposed to atmospheric agents

• Sectors handling hazardous or corrosive liquids

• Establishments subject to strict environmental regulations

Storage and Retention Guide

What does the law say?
According to Legislative Decree 19/05/1999 n. 152 , amended by Legislative Decree 2000 n. 258 , containment basins must have a minimum capacity at least equal to the largest of the stored containers and in any case not less than 1/3 of the total volume of the hazardous substances present. In areas subject to groundwater protection, the legislation instead requires that the entire stored volume be contained within the collection tank ( 100% of the volume ).

⚠️ Attention:
This regulation does not apply to the storage of used oil , for which the law expressly requires a containment tank equal to 100% of the stored volume , regardless of other considerations.

To better clarify the practical application of these rules, we report below two examples with explanatory data:

Project Rules

Ministerial Decree 17 January 2018: NTC New Technical Standards for Construction
UNI ENV 1993 1-3 (EUROCODE 3): Design of steel structures
UNI EN 10204 August 1991: Metallic products – Types of control documents

Security and Controls

Legislative Decree 09 April 2008 – n. 81: Consolidated Law on health and safety protection and obligations related to Legislative Decree n. 81
UNI EN ISO 9712:2012: Qualification and certification of non-destructive testing personnel
UNI EN ISO 3452-1:2013: Penetrant liquid testing
UNI EN ISO 23277:2010: Non-destructive testing of welds using penetrant tests
UNI EN ISO 5817:2014: Welding, welded joints and their quality
