Collection tank for 4 200 LT drums - RAL 6011

A=Length
B=Width
C=Useful height
D=Foot height
E=Total height
The measurements are expressed in millimeters

Download technical data sheet Declaration of conformity

General information

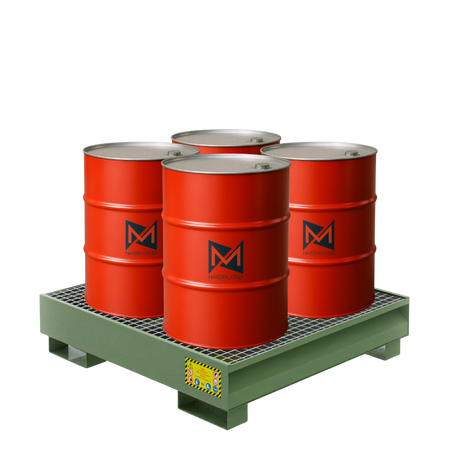

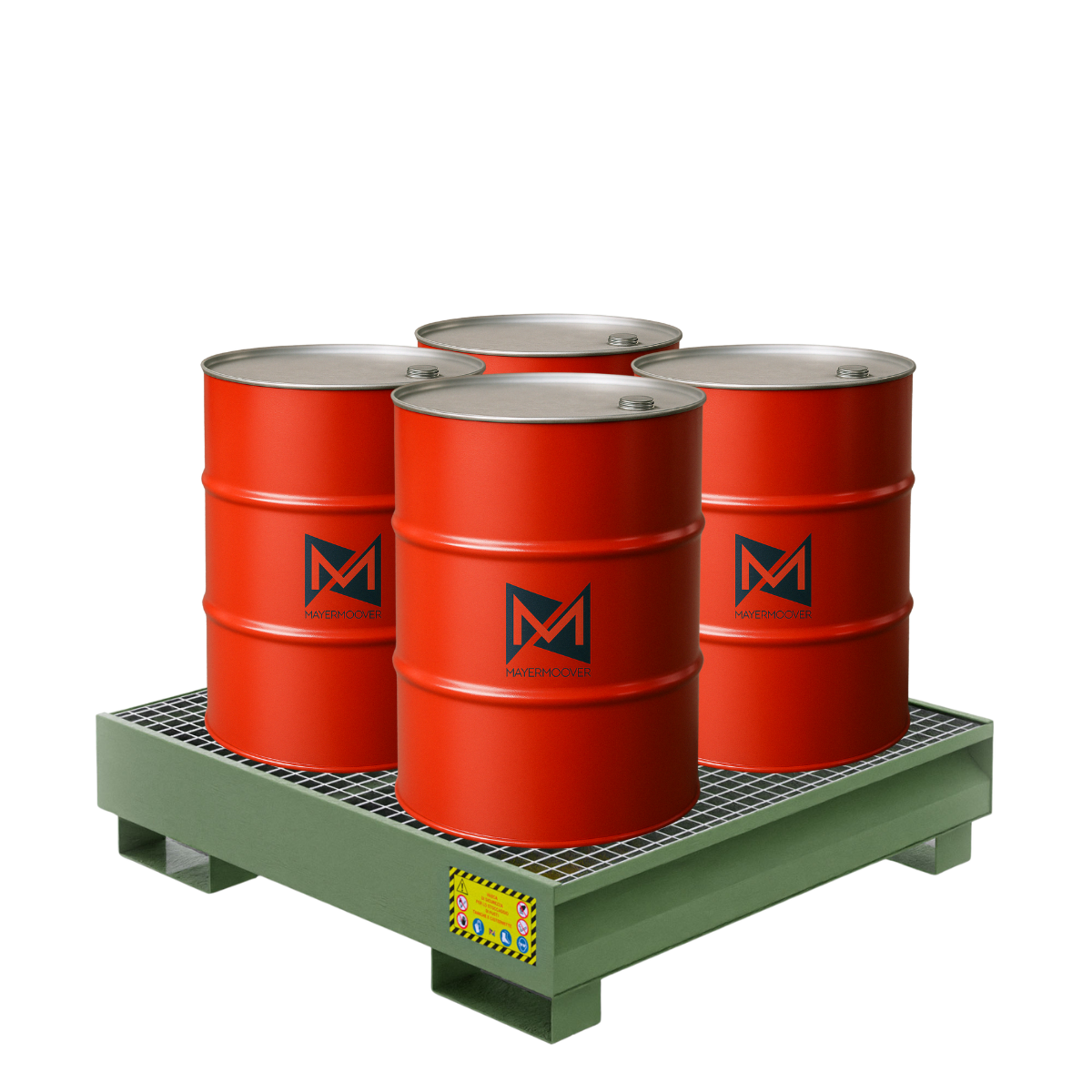

The Mayermoover collection tank, designed to hold four 200-liter drums , is shown here in the RAL 6011 (reseda green) finish. This neutral, technical color is perfectly suited to industrial environments where discreet yet functional visual identification is required.

Ideal for the safe handling of hazardous substances, the tank helps prevent accidental spills, protecting personnel, facilities and the environment.

Industrial construction and guaranteed watertightness

The structure is made of 3 mm (30/10) thick carbon steel , a material chosen for its strength and durability. The welds are electronically controlled , guaranteeing a perfect seal even in harsh conditions.

The hot-dip galvanized and pressed grating , supplied included, allows for stable and safe support of the 4 drums, and complies with the standards required for handling in professional environments.

Production takes place according to UNI parameters , using only traceable and UNI EN ISO 9001 certified materials.

Technical features

• Capacity: 4 x 200 litre drums

• Material: S235JR or higher carbon steel

• Thickness: 3 mm

• Painting: epoxy powder RAL 6011 (reseda green)

• Grating included: hot-dip galvanized and pressed

• Electronically tested welds

• Prepared for forklift forks

• Production compliant with UNI standards

• Technical documentation available upon request

Customizations available

• Single or two-component liquid finish

• Hot or cold galvanizing

• Other RAL colors on request, with minimum production quantities

Recommended application contexts

• Industrial areas requiring safe liquid collection

• Logistics warehouses and technical depots

• Chemical, mechanical and maintenance sectors

• Environments where a visually harmonious and discreet color is useful

Storage and Retention Guide

What does the law say?
According to Legislative Decree 19/05/1999 n. 152 , amended by Legislative Decree 2000 n. 258 , containment basins must have a minimum capacity at least equal to the largest of the stored containers and in any case not less than 1/3 of the total volume of the hazardous substances present. In areas subject to groundwater protection, the legislation instead requires that the entire stored volume be contained within the collection tank ( 100% of the volume ).

⚠️ Attention:
This regulation does not apply to the storage of used oil , for which the law expressly requires a containment tank equal to 100% of the stored volume , regardless of other considerations.

To better clarify the practical application of these rules, we report below two examples with explanatory data:

Project Rules

Ministerial Decree 17 January 2018: NTC New Technical Standards for Construction
UNI ENV 1993 1-3 (EUROCODE 3): Design of steel structures
UNI EN 10204 August 1991: Metallic products – Types of control documents

Security and Controls

Legislative Decree 09 April 2008 – n. 81: Consolidated Law on health and safety protection and obligations related to Legislative Decree n. 81
UNI EN ISO 9712:2012: Qualification and certification of non-destructive testing personnel
UNI EN ISO 3452-1:2013: Penetrant liquid testing
UNI EN ISO 23277:2010: Non-destructive testing of welds using penetrant tests
UNI EN ISO 5817:2014: Welding, welded joints and their quality
